Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air dryer (2) to the air dryer bracket (3) and automatic level control air compressor.
  2. Rotate the clip 90 degrees in order to retain the dryer to the automatic level control air compressor.
  3. Install the automatic level control air compressor to the vehicle. Refer to AIR COMPRESSOR REPLACEMENT   .

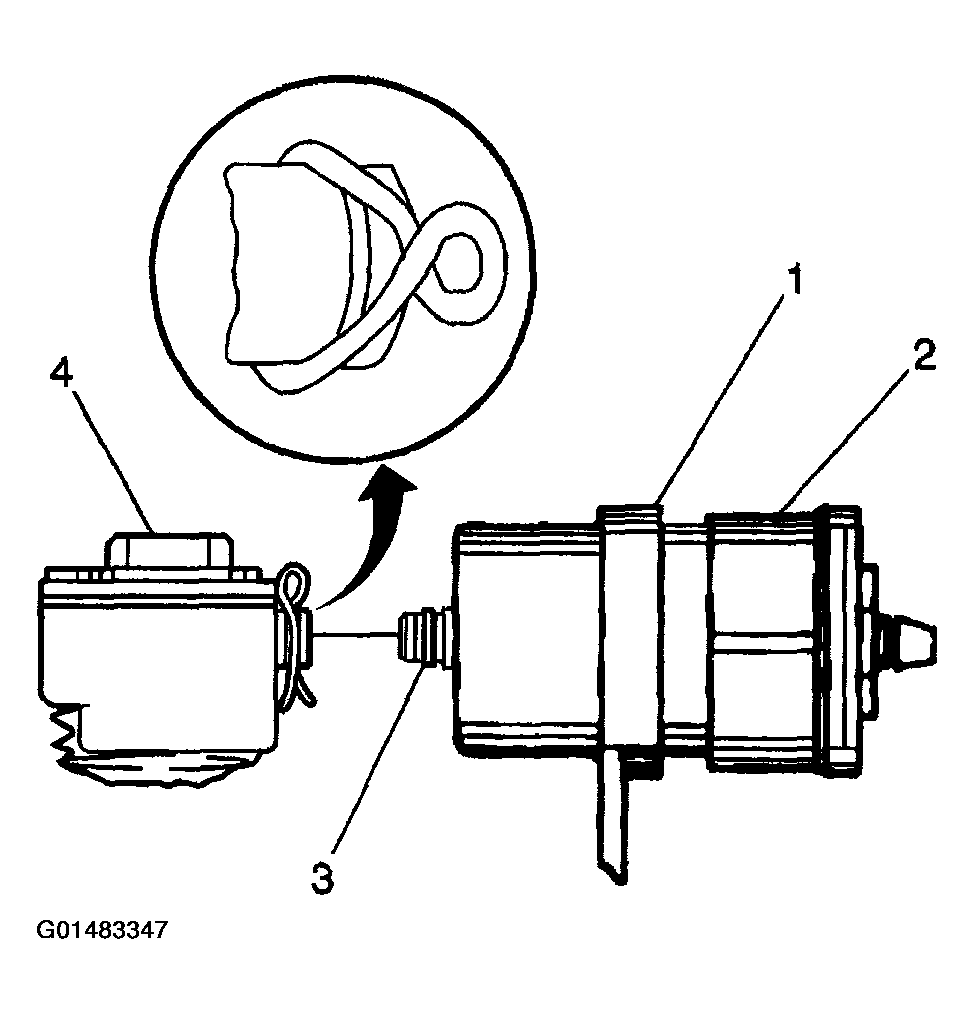

    Fig 1: Installing Air Dryer To Air Dryer Bracket And Automatic Level Control Air Compressor
    G01483347Courtesy of GENERAL MOTORS CORP.
