Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

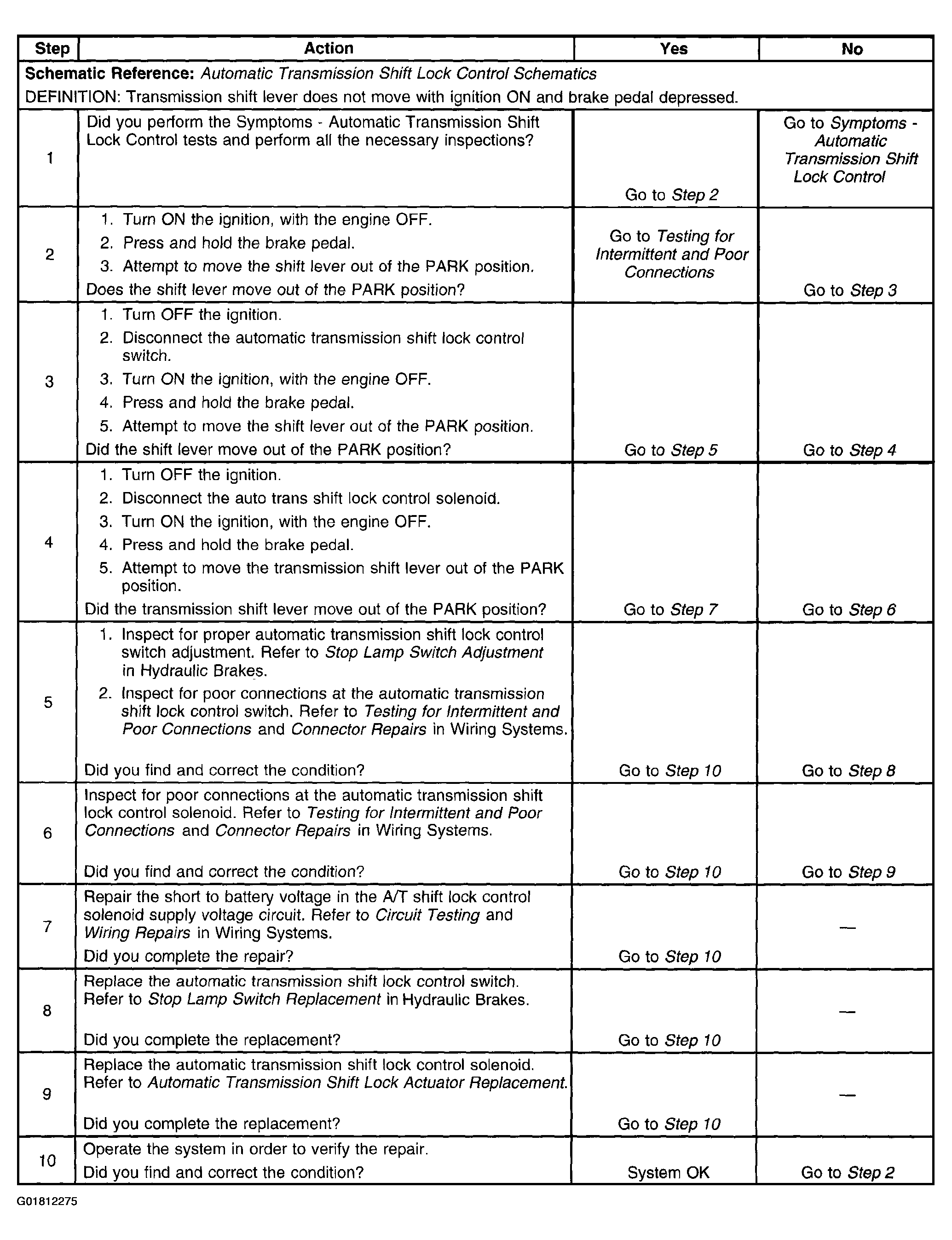

Fig 1: Shift Lever Does Not Move With Brake Pedal Depressed
G01812275Courtesy of GENERAL MOTORS CORP.

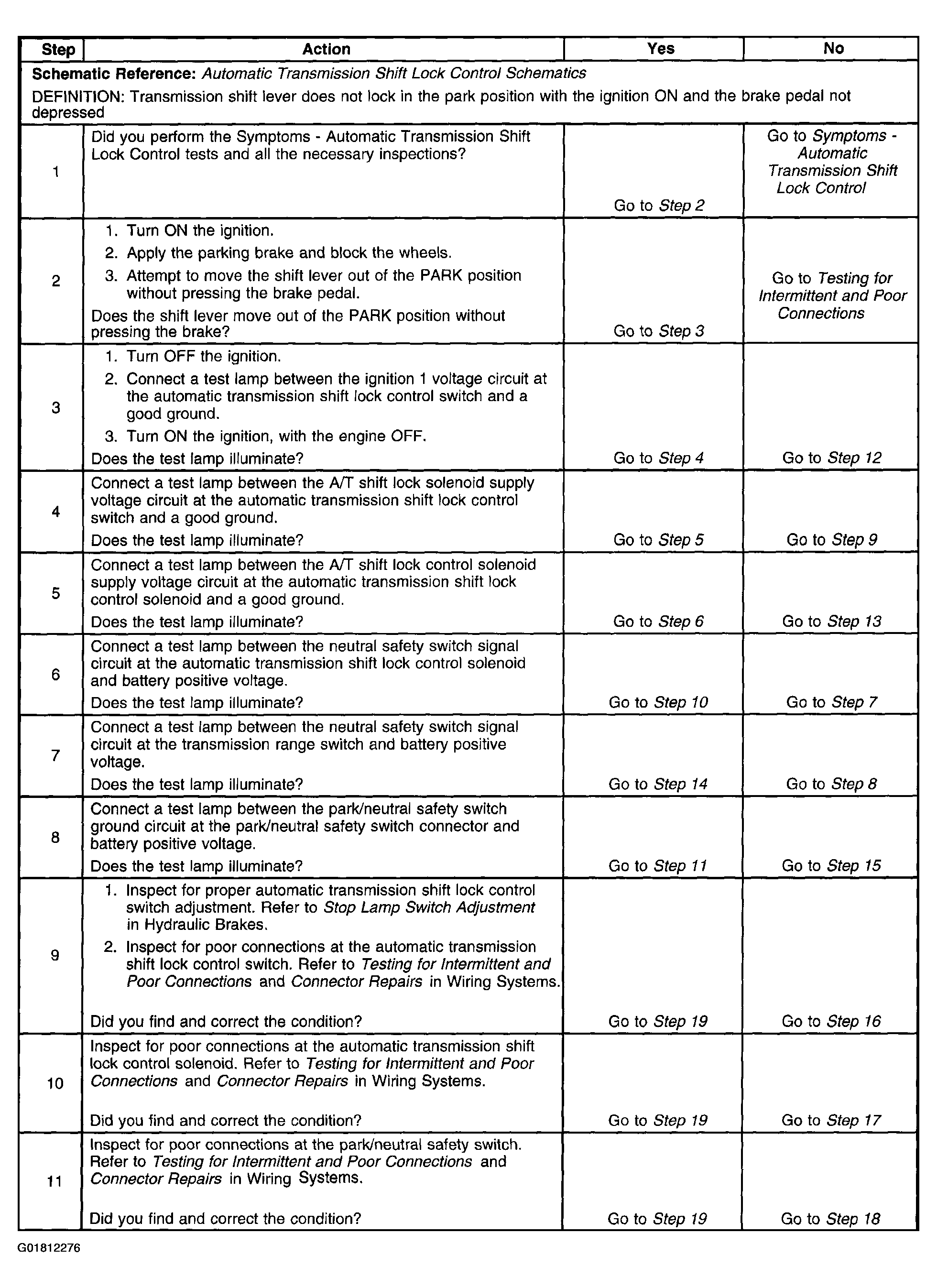

Fig 2: Shift Lever Can Be Moved Without Brake Pedal Depressed (Steps 1-11)
G01812276Courtesy of GENERAL MOTORS CORP.

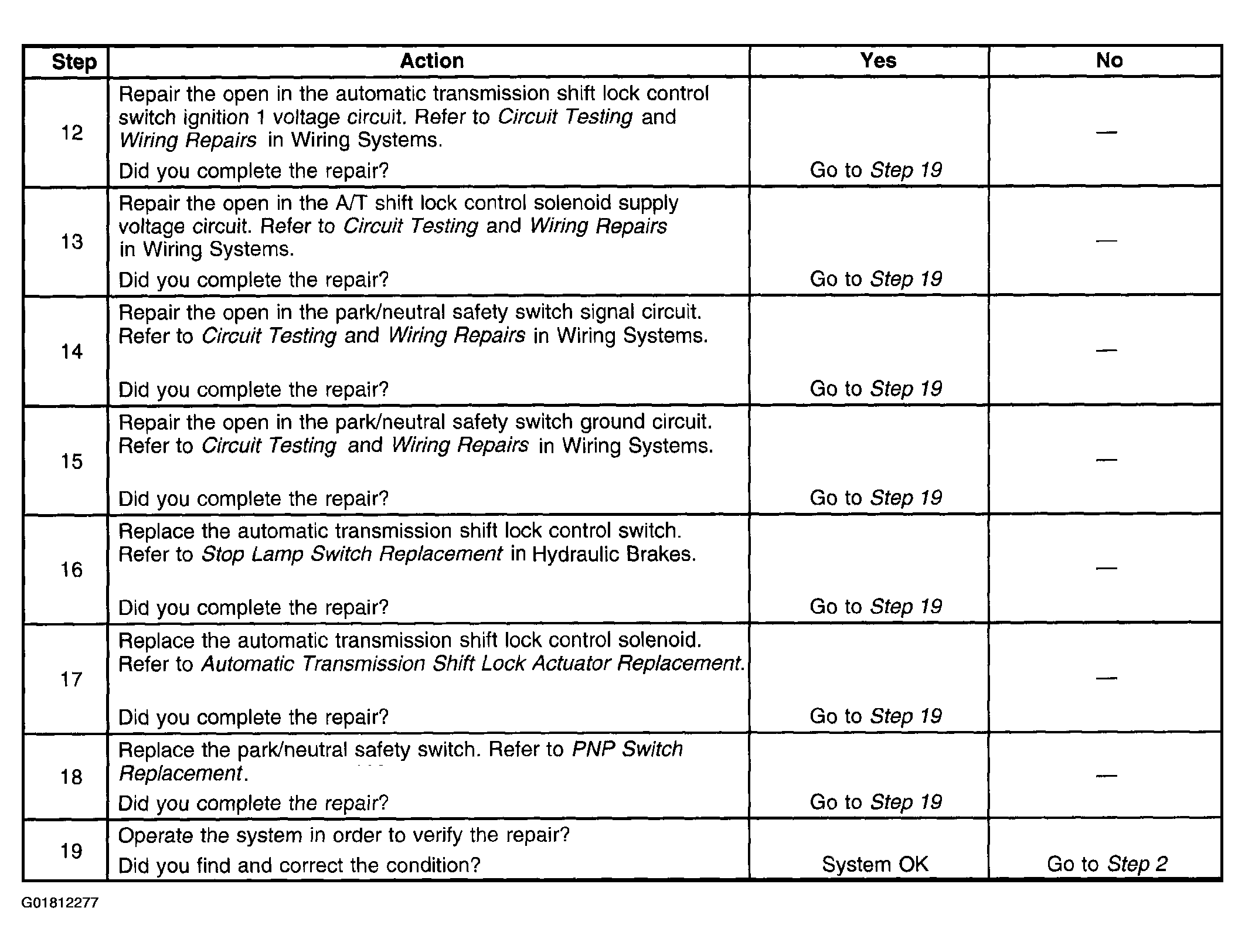

Fig 3: Shift Lever Can Be Moved Without Brake Pedal Depressed (Steps 12-19)
G01812277Courtesy of GENERAL MOTORS CORP.
