Automatic Level Control Compressor Motor Inoperative

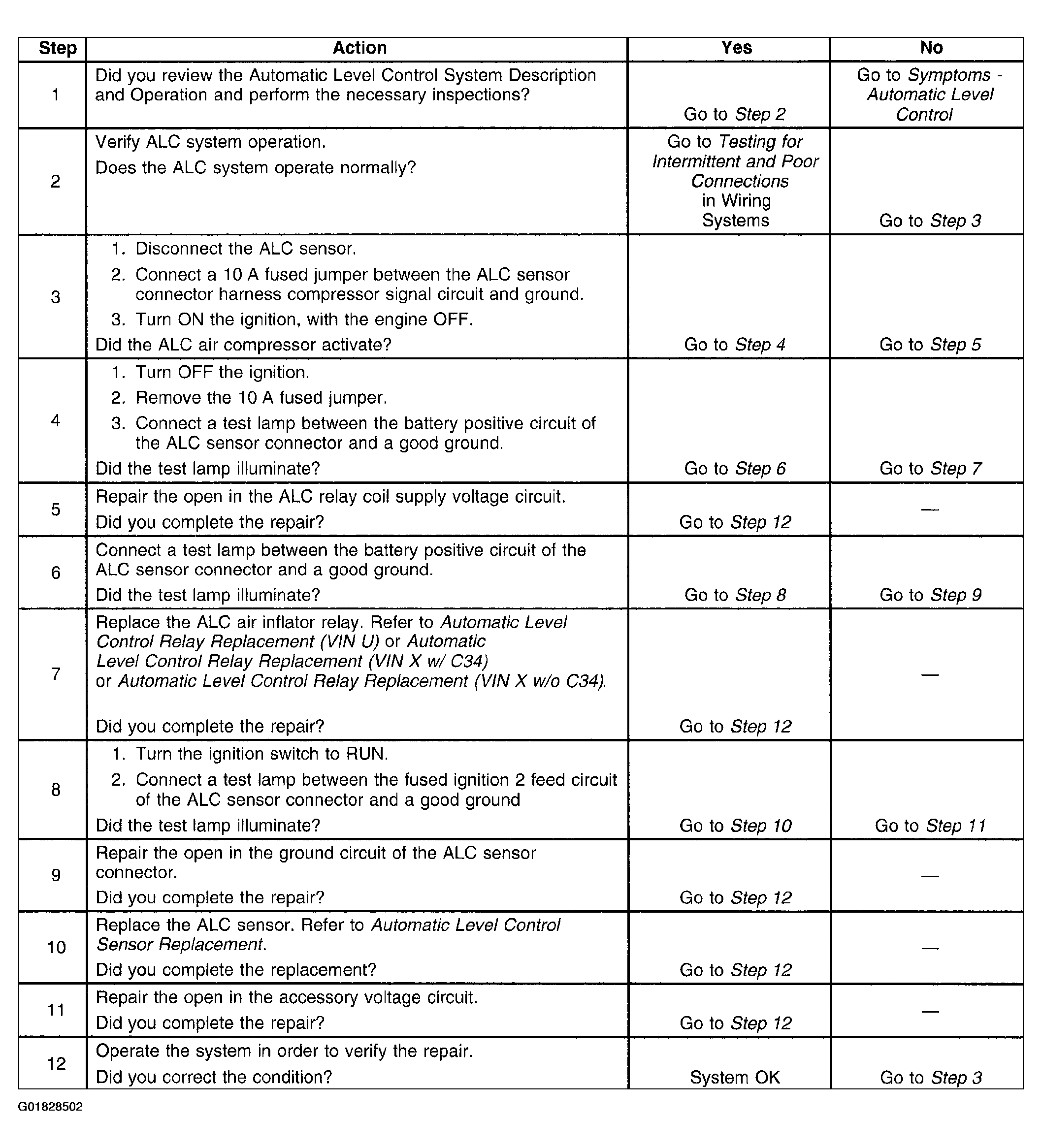

Fig 1: Automatic Level Control Compressor Motor Inoperative

G01828502

Courtesy of GENERAL MOTORS CORP.
