Power Steering Pump Disassembled View (CB Series Pump)

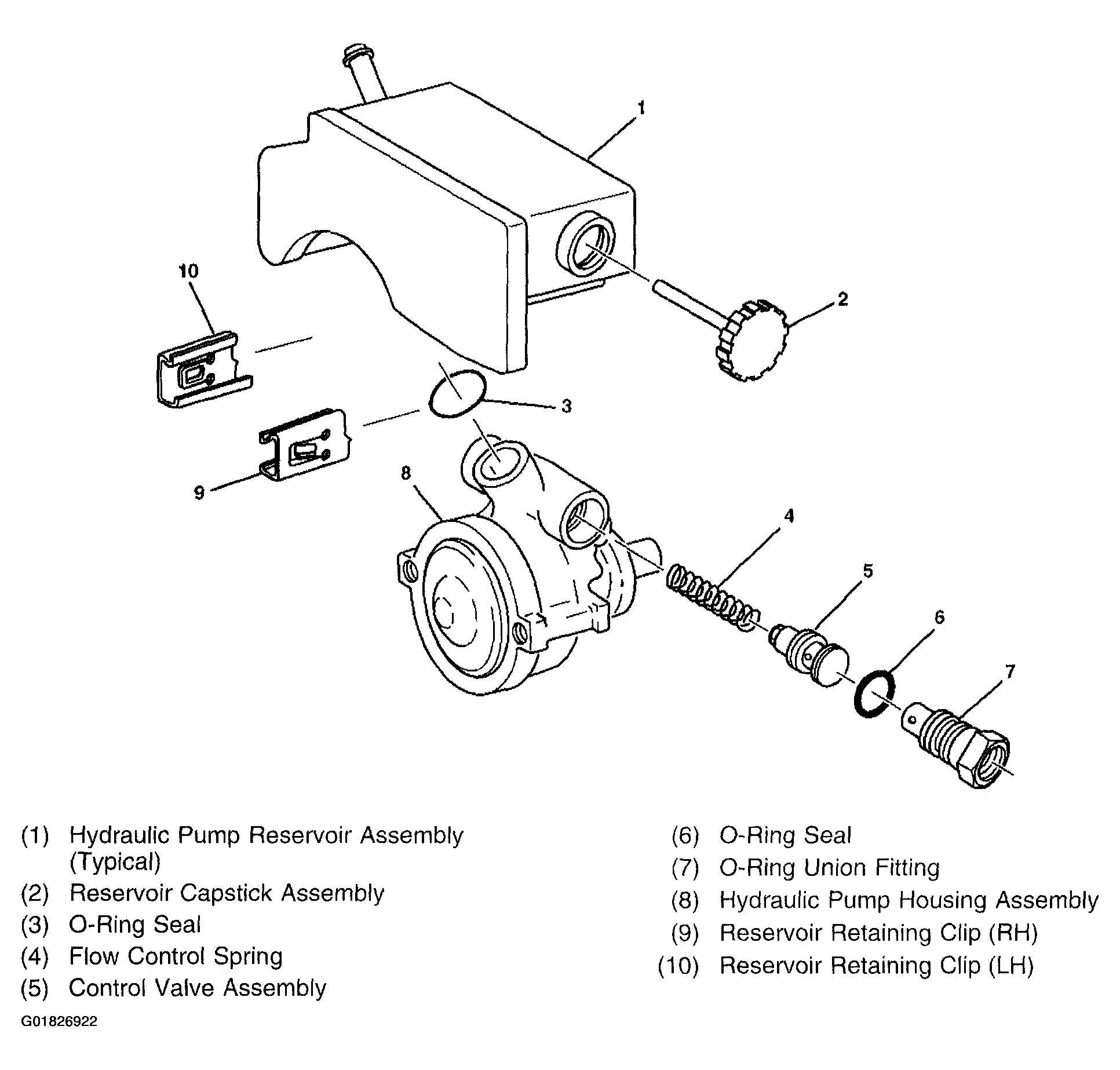

Fig 1: Power Steering Pump Assembly Disassembled View - CB Series

G01826922

Courtesy of GENERAL MOTORS CORP.
