Installation Procedure

  1. Install the hook and loop seat belt retainer to the headliner.
  2. Install the retractor side seat belt to the hook and loop on the headliner.

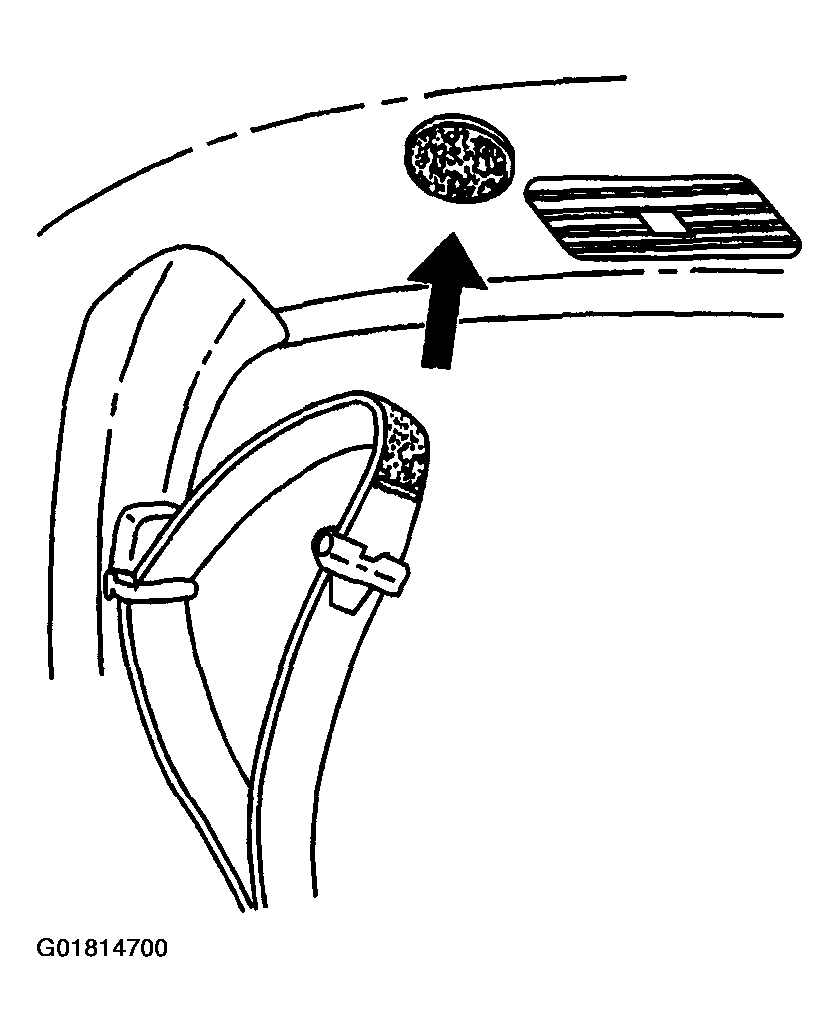

Fig 1: Installing Hook & Loop Seat Belt Retainer
G01814700Courtesy of GENERAL MOTORS CORP.
