Seat Belt Connector End Views

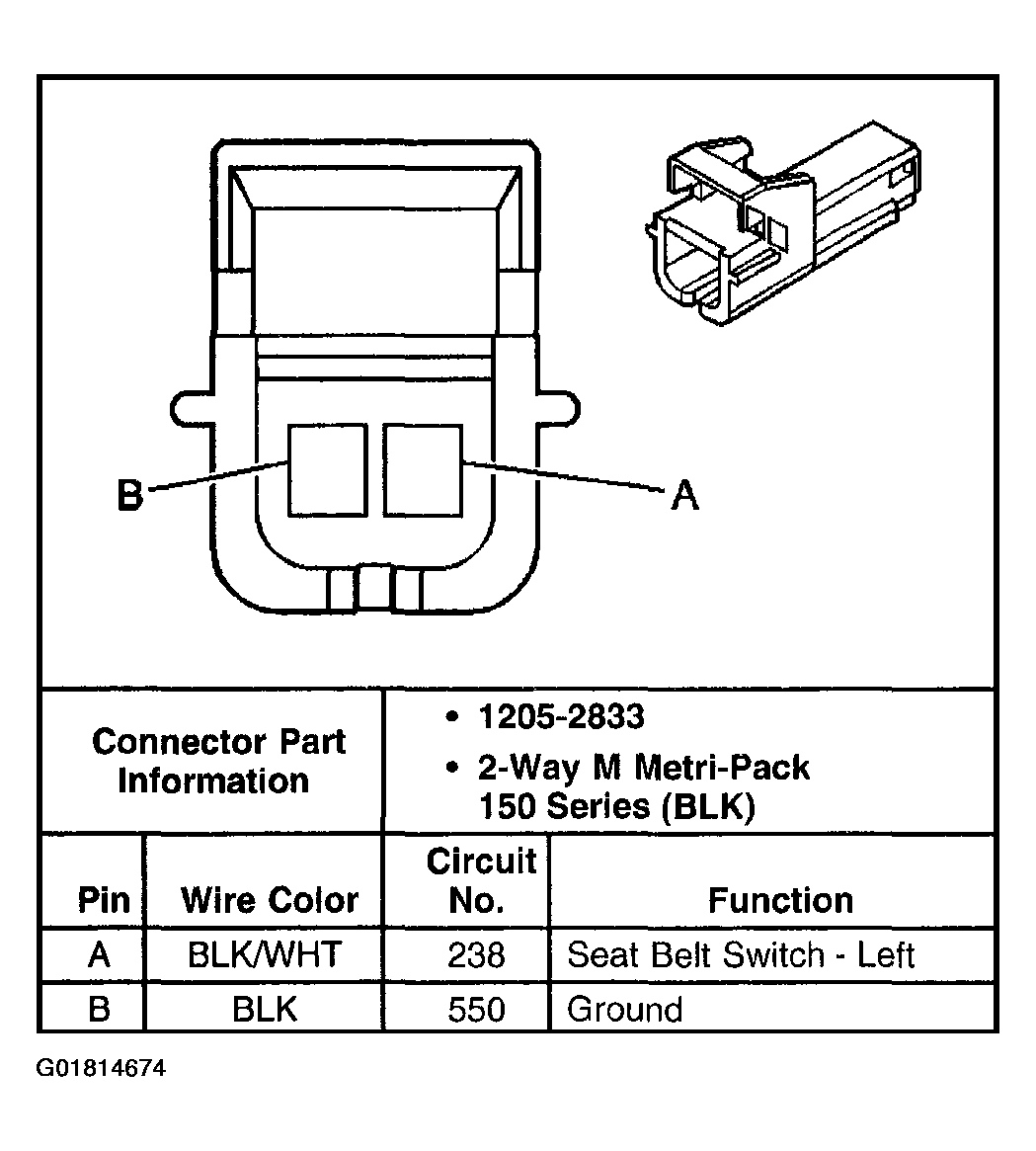

Fig 1: Seat Belt Switch Connector End View - Driver

G01814674

Courtesy of GENERAL MOTORS CORP.
