Auxiliary Mode Actuator Connector End View

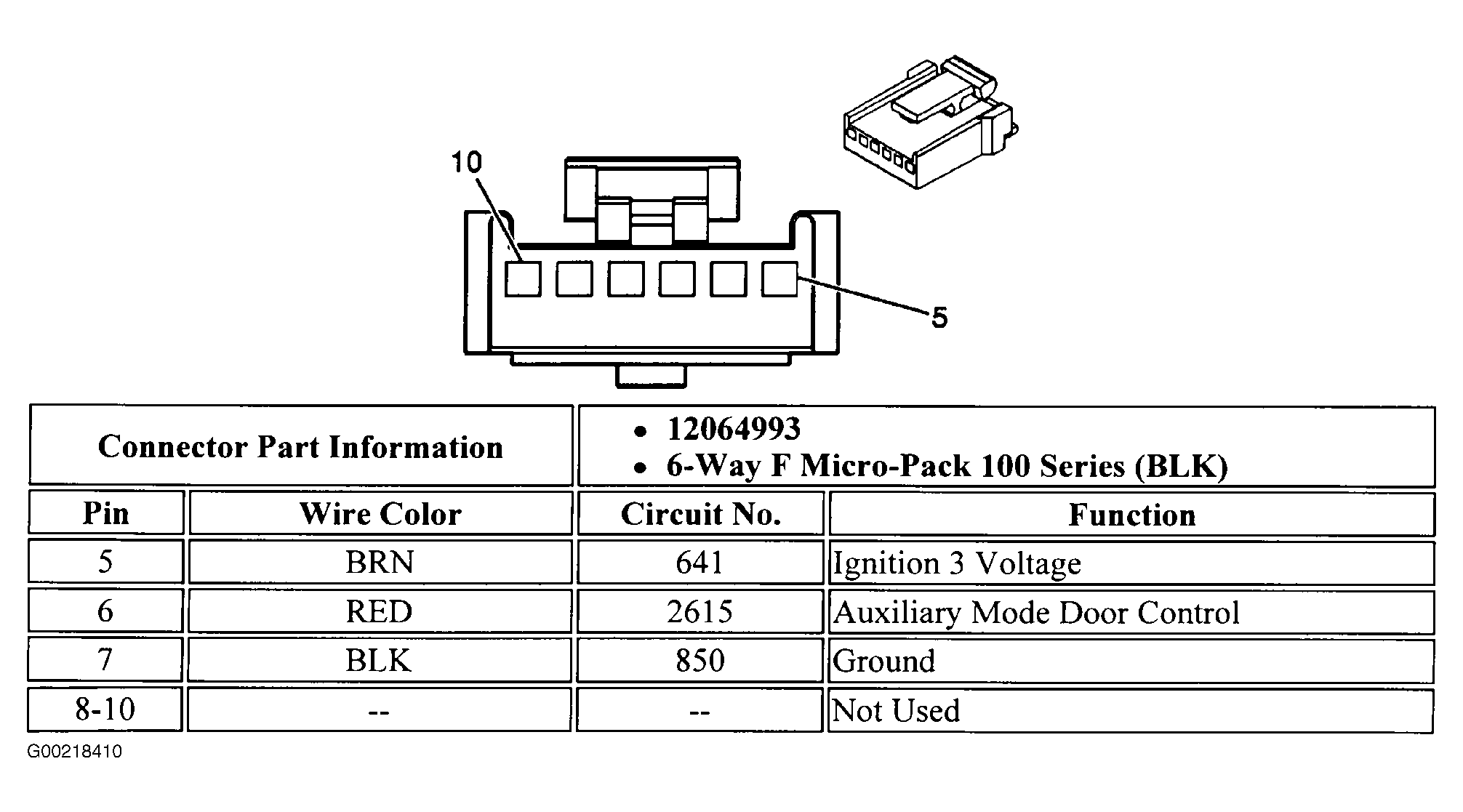

Fig 1: Auxiliary Mode Actuator

G00218410

Courtesy of GENERAL MOTORS CORP.
