Auxiliary Blower Motor Resistor Assembly Connector End View

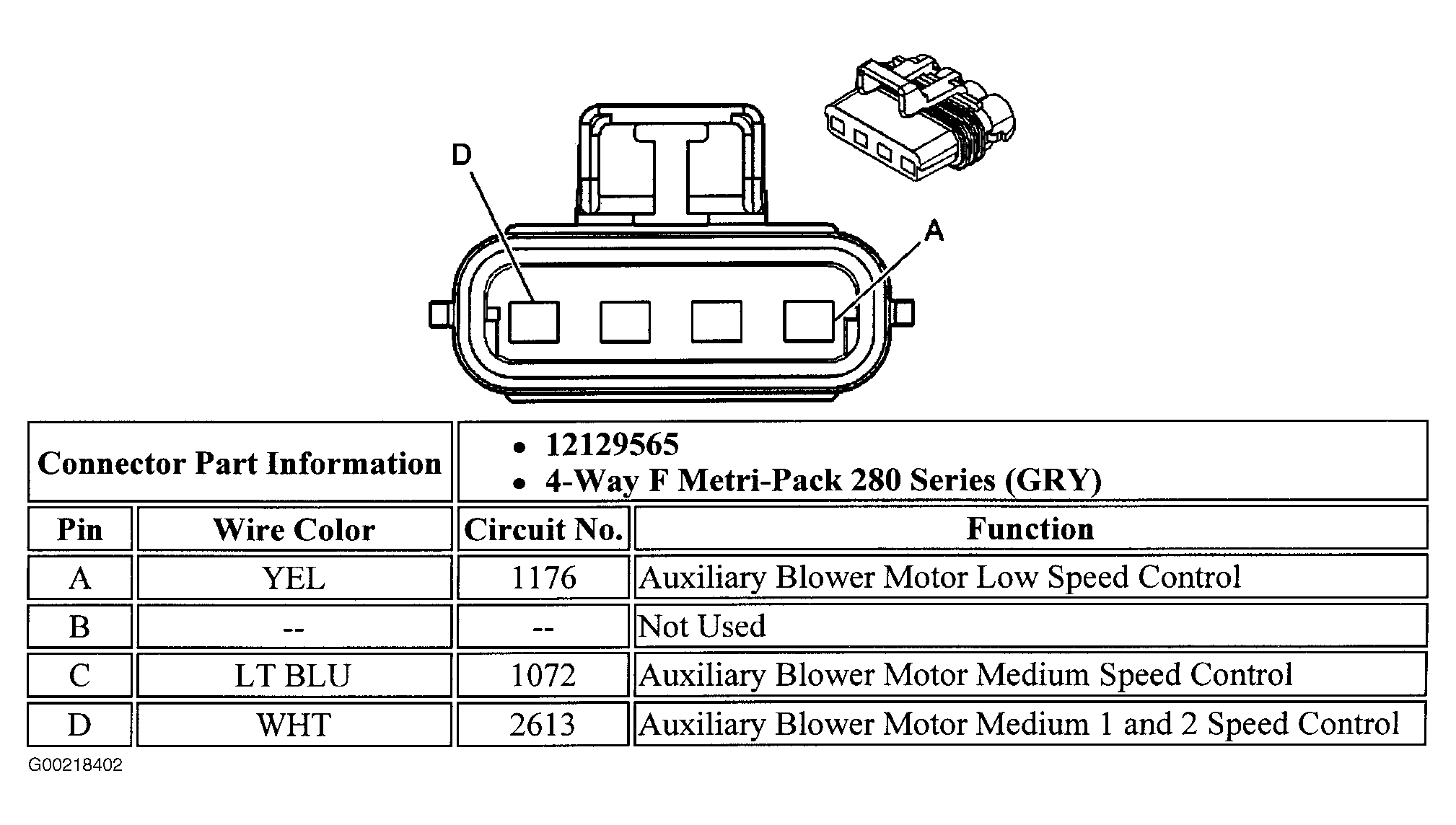

Fig 1: Auxiliary Blower Motor Resistor Assembly

G00218402

Courtesy of GENERAL MOTORS CORP.
