Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the tail lamp connector (3) and the grommet (2) through the body.

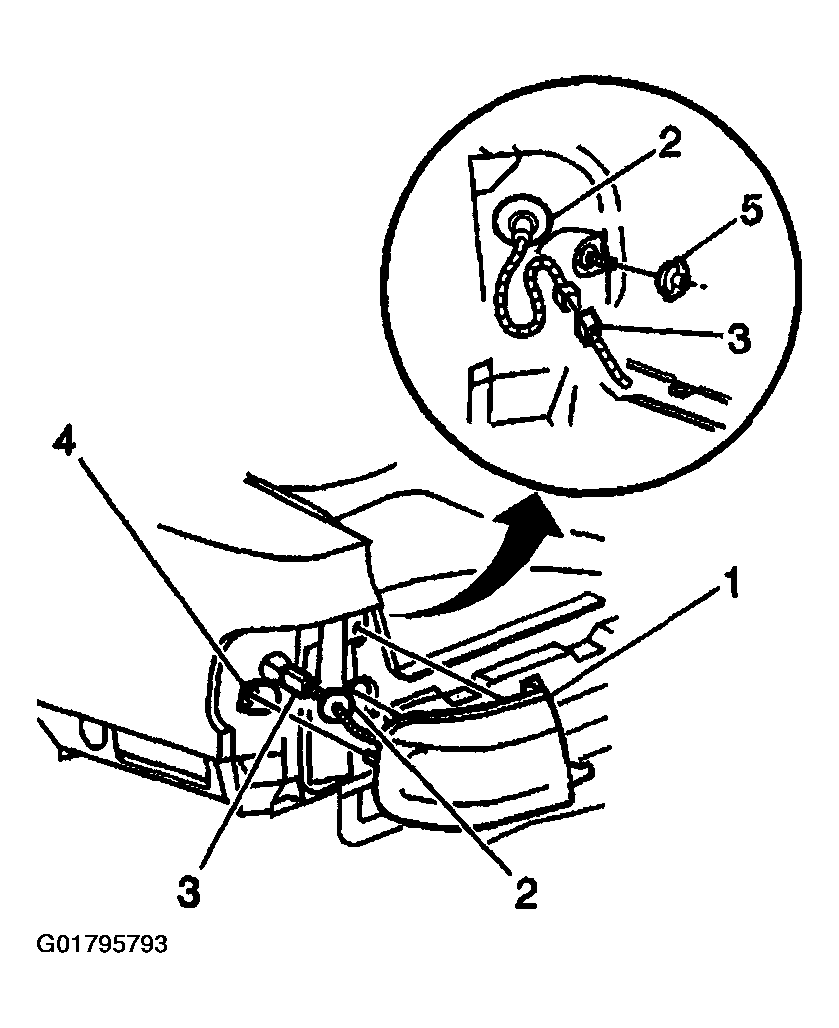

    Fig 1: Installing Tail/Turn Signal Lamp
    G01795793Courtesy of GENERAL MOTORS CORP.
  2. Verify that the grommet (2) is fully seated in the body.
  3. Install the tail lamp (1) to the body.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the nuts (5) that retain the tail lamp (1) to the body.

    Tighten

    Tighten the nuts to 4.5 N.m (40 lb in).

  5. Connect the tail lamp connector (3).
  6. Install the rear compartment sill plate. Refer to COMPARTMENT SILL PLATE REPLACEMENT - REAR .
  7. Close the rear compartment lid.
