Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp bracket (3).

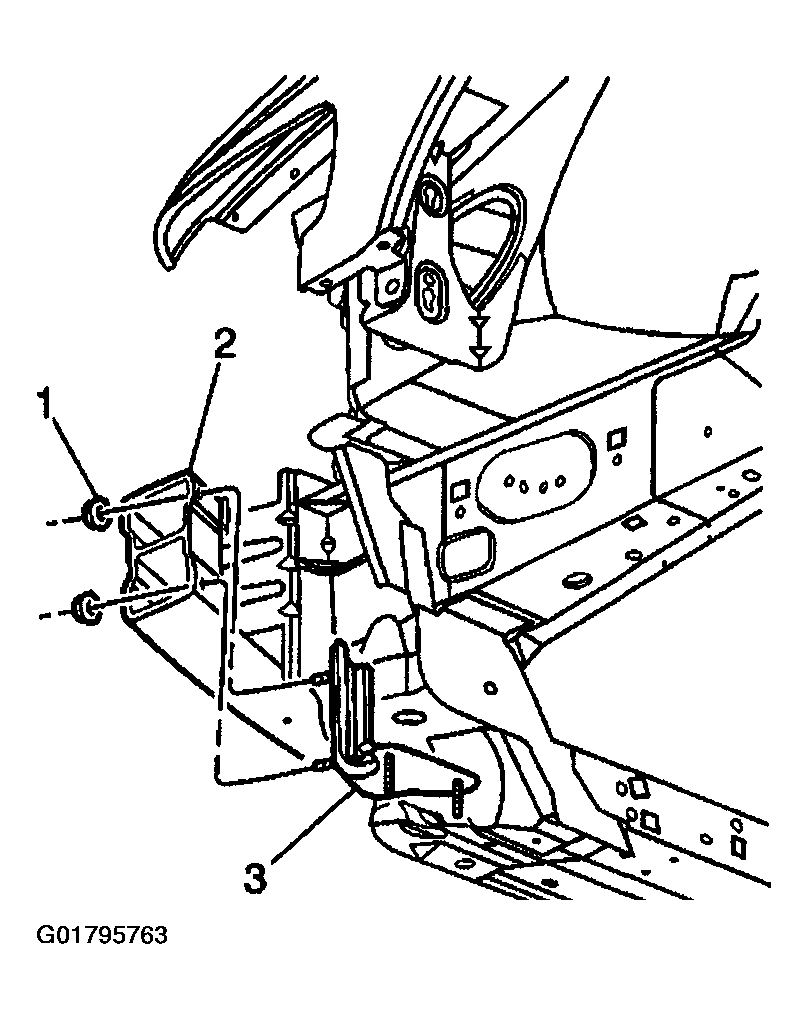

    Fig 1: Installing Fog Lamp Bracket
    G01795763Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners (1) in order to secure the fog lamp bracket (3) to the front impact bar (2).

    Tighten

    Tighten the fog lamp bracket mounting fasteners to 9 N.m (80 lb in).

  3. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .
  4. Install the fog lamp (2).

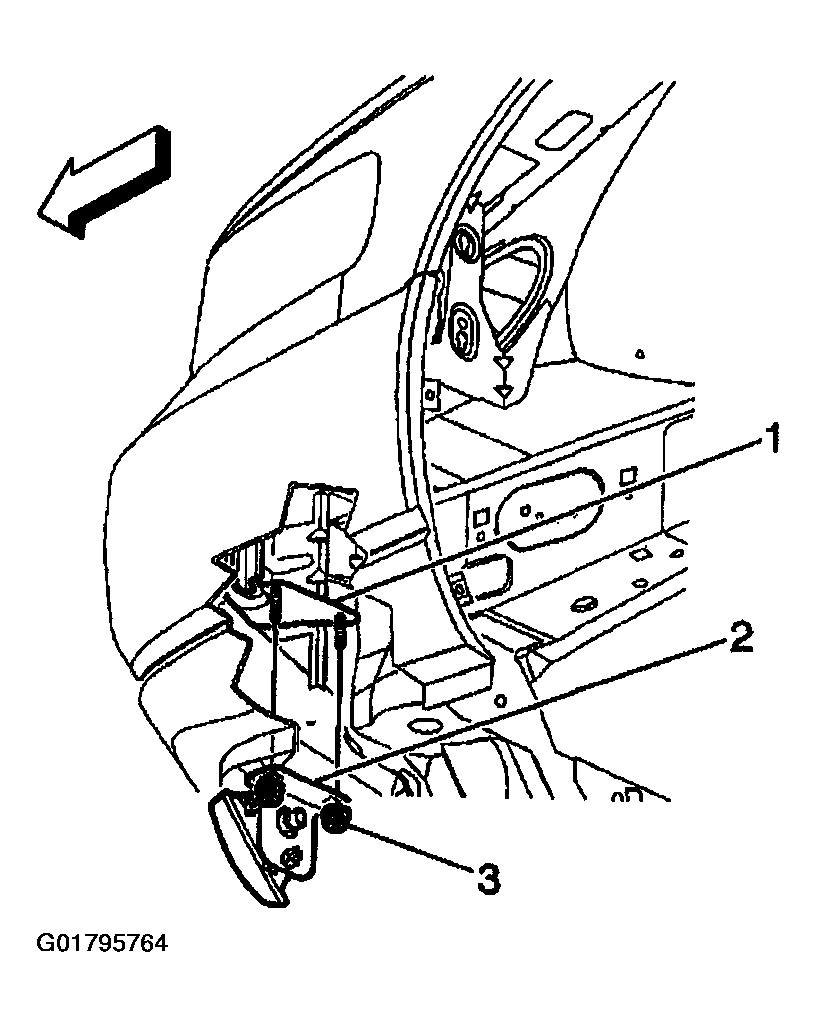

    Fig 2: Installing Fog Lamp
    G01795764Courtesy of GENERAL MOTORS CORP.
  5. Install the fasteners (3) in order to secure the fog lamp (2) to the fog lamp bracket (1).

    Tighten

    Tighten the fog lamp fasteners to 6 N.m (53 lb in).

  6. Connect the fog lamp electrical connector (2) to the fog lamp (1).

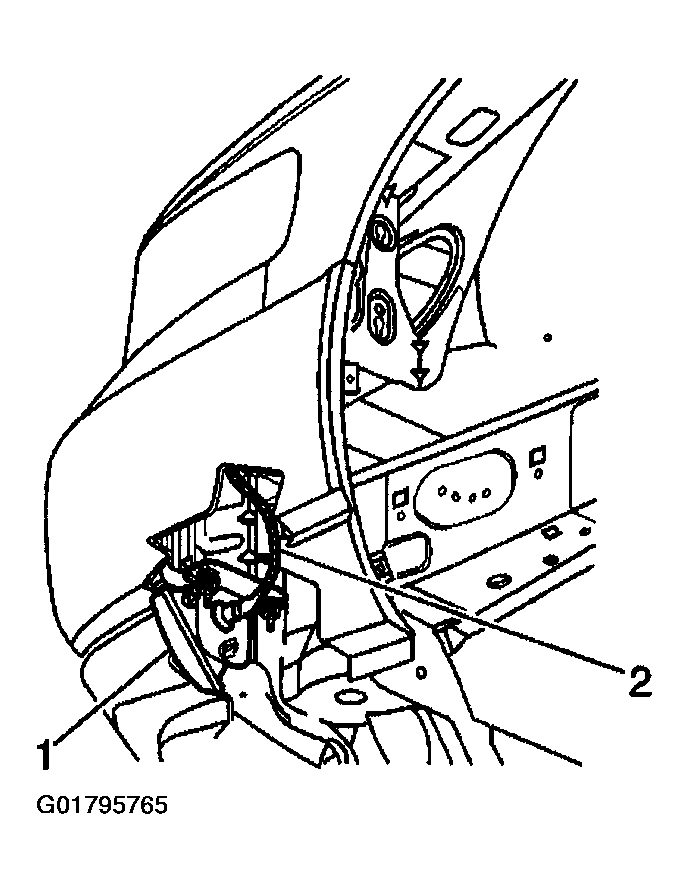

    Fig 3: Connecting Fog Lamp Electrical Connector
    G01795765Courtesy of GENERAL MOTORS CORP.
  7. Install the front air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT .
