Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp bulb (2) from the fog lamp housing (1).

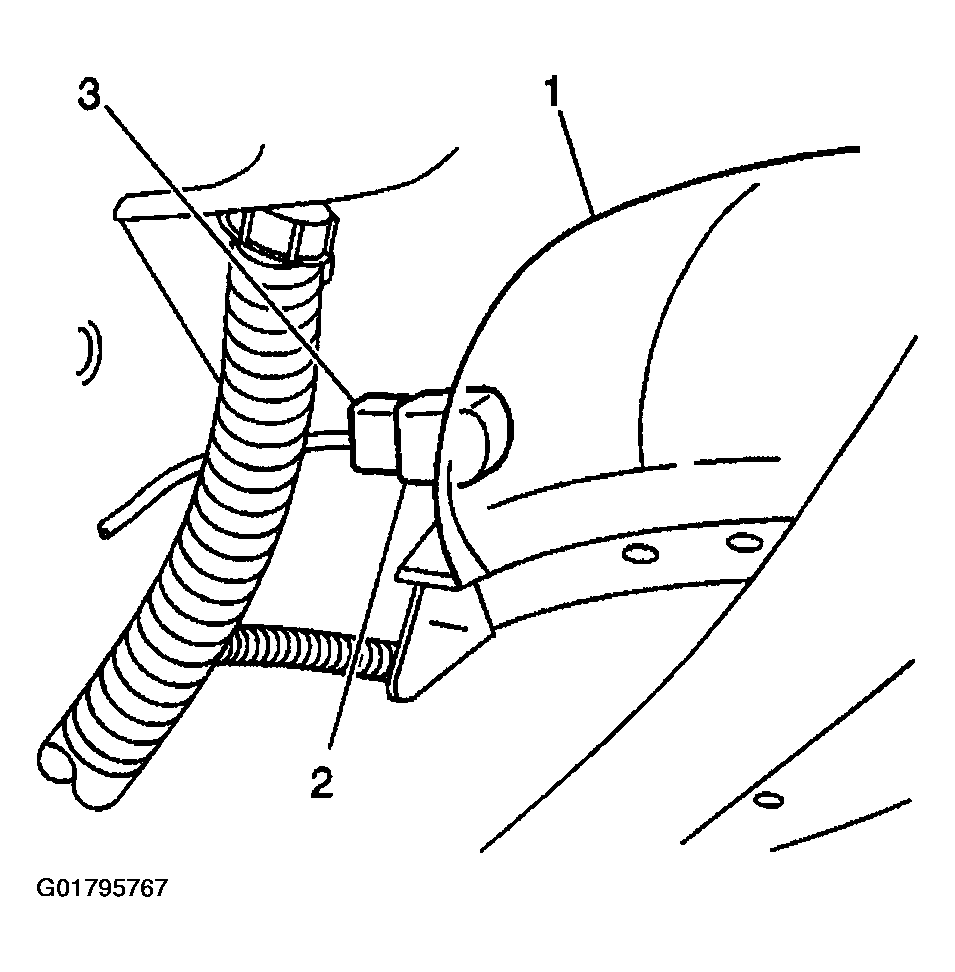

    Fig 1: Installing Fog Lamp Bulb
    G01795767Courtesy of GENERAL MOTORS CORP.
  2. Turn the fog lamp bulb (2) clockwise to engage it into the fog lamp housing (1).
  3. Connect the electrical connector (3) to the fog lamp bulb (2).
  4. Install the air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT .
