Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Remove the rear compartment lid trim. Refer to COMPARTMENT LID TRIM REPLACEMENT - REAR .
  3. Pull back on rear compartment trim panel.
  4. Disconnect the backup lamp connector (5) from the rear compartment lid wiring harness.

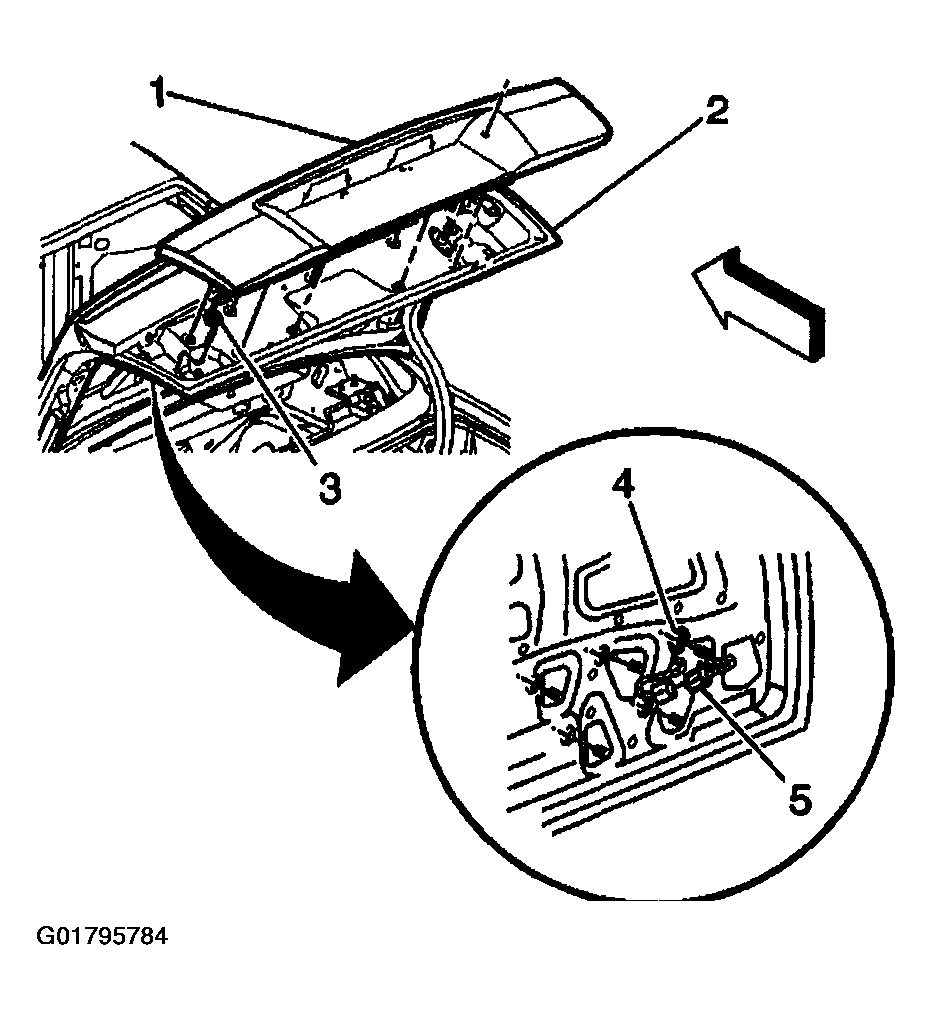

    Fig 1: Removing Backup Lamp
    G01795784Courtesy of GENERAL MOTORS CORP.
  5. Press the grommet (3) out of the rear compartment lid.
  6. Remove the fasteners (4) securing the backup lamp (1) to the rear compartment lid (2).
  7. Remove the backup lamp (1) from the rear compartment lid (2).
