Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

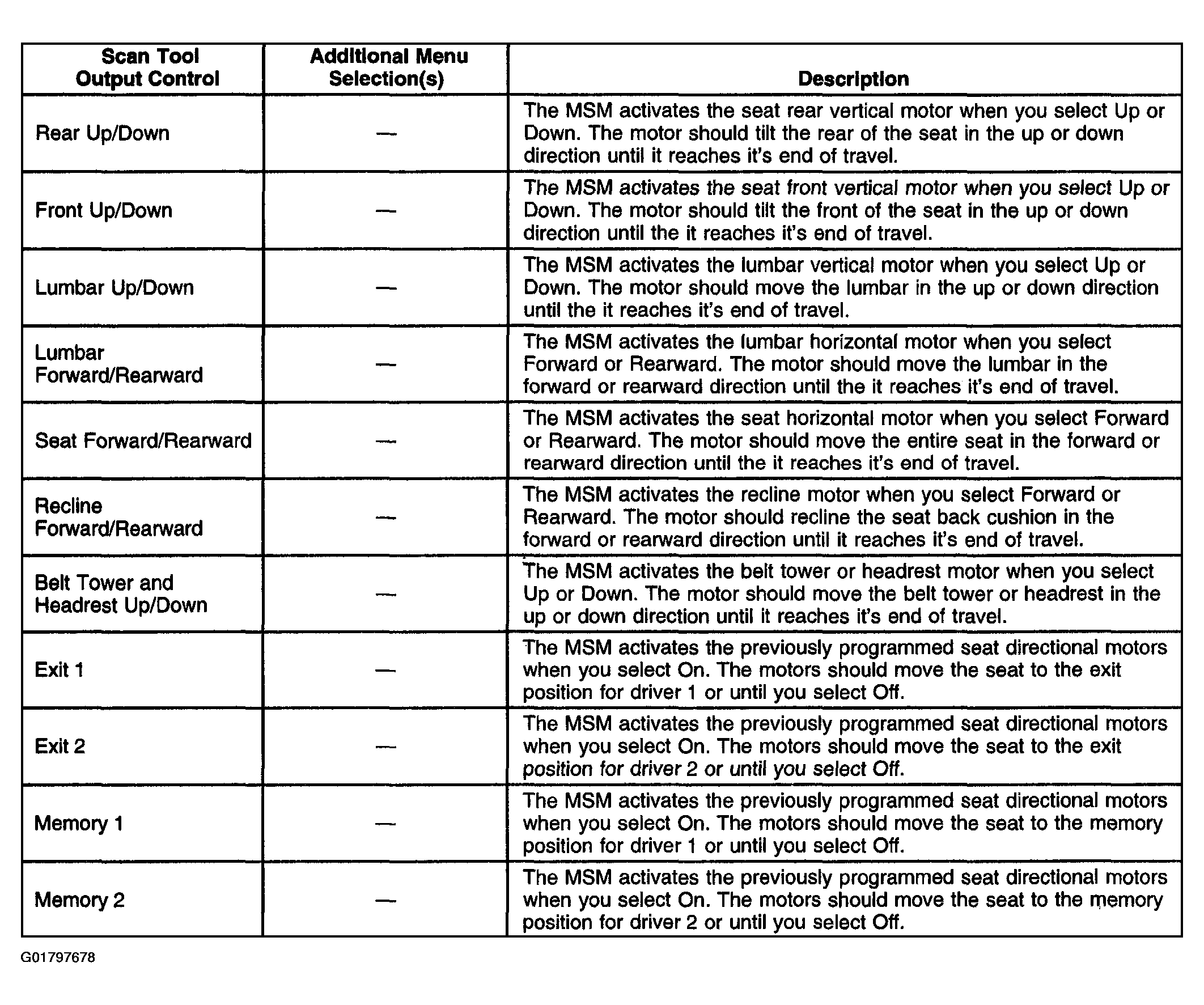

Fig 1: Memory Seat Module (MSM)
G01797678Courtesy of GENERAL MOTORS CORP.

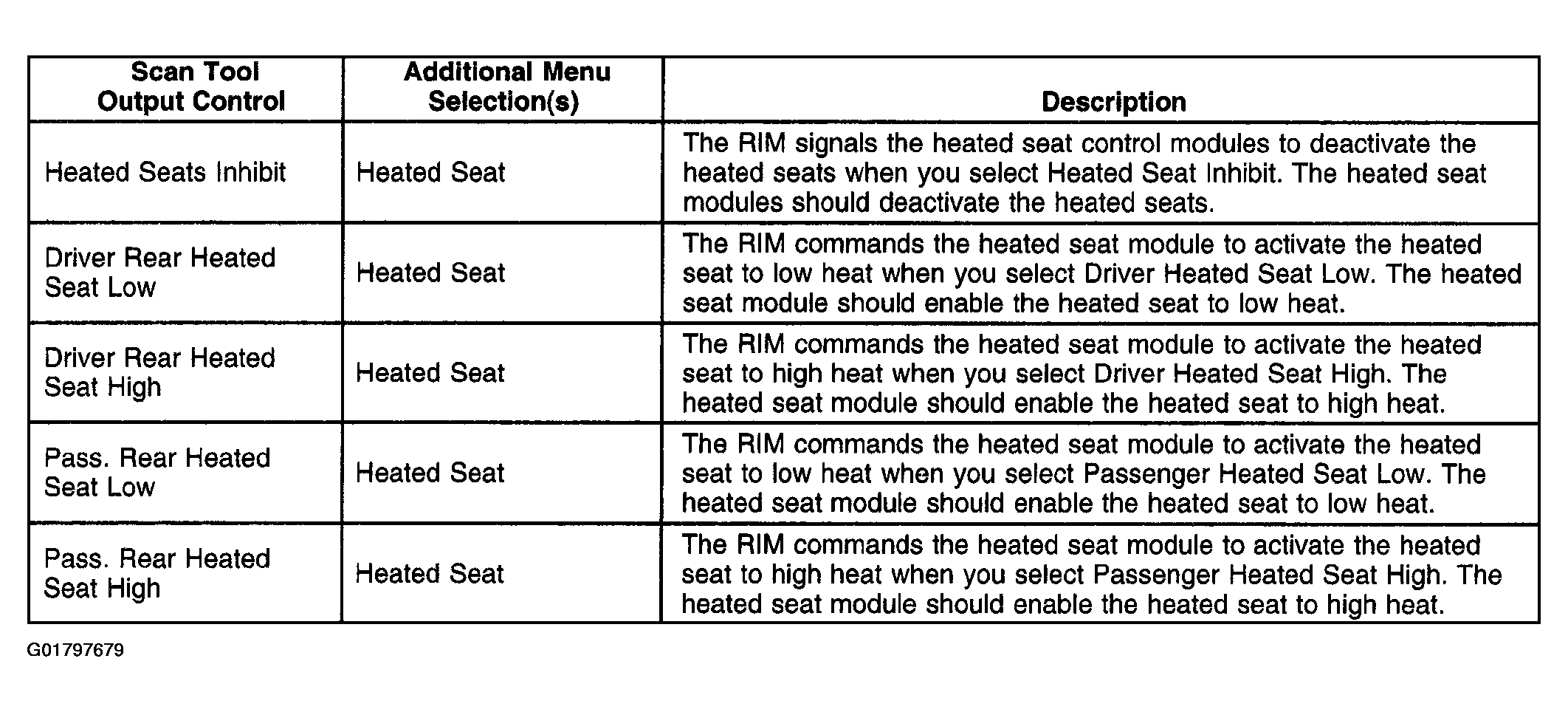

Fig 2: Rear Integration Module (RIM)
G01797679Courtesy of GENERAL MOTORS CORP.
