Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch support (1) to the vehicle.

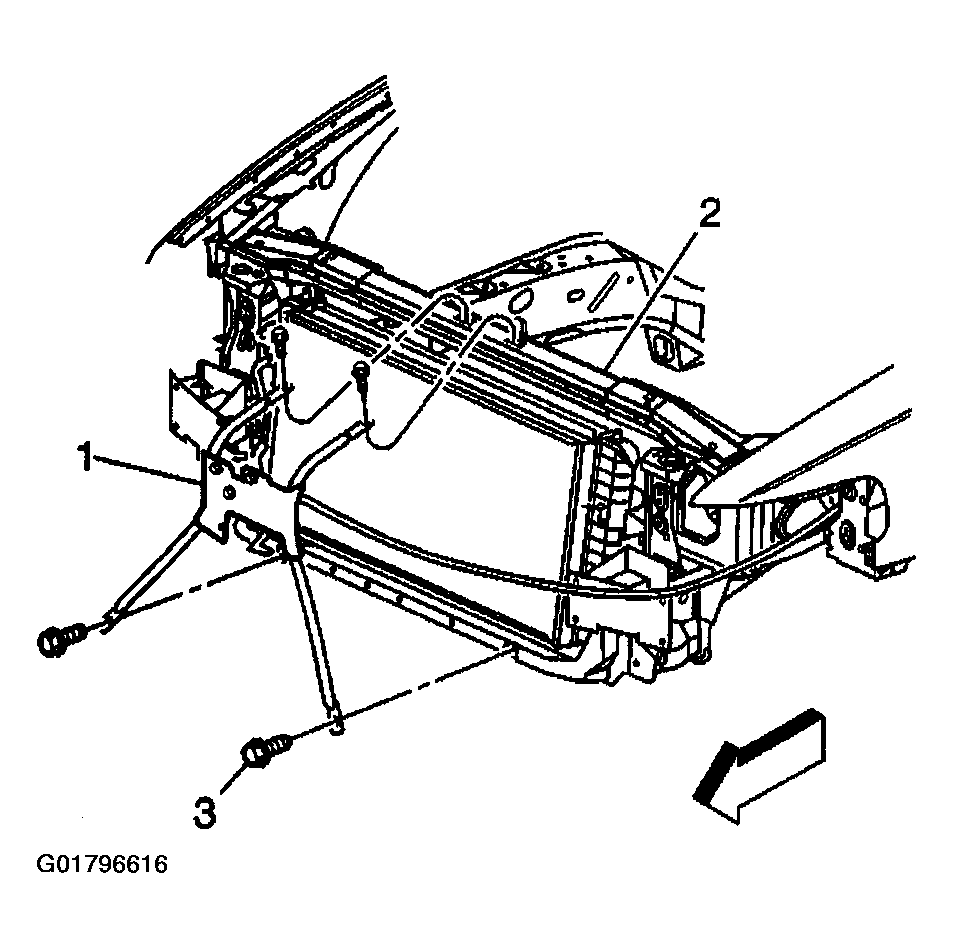

    Fig 1: Installing Hood Latch Support
    G01796616Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts (3) to retain the hood latch support (1) to the vehicle.

    Tighten

    Tighten the bolts (3) to 9 N.m (80 lb in).

  3. Install the hood latch. Refer to Hood Latch Replacement .
  4. Connect the ambient outside temperature sensor electrical connector.
  5. Close the hood.
