Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

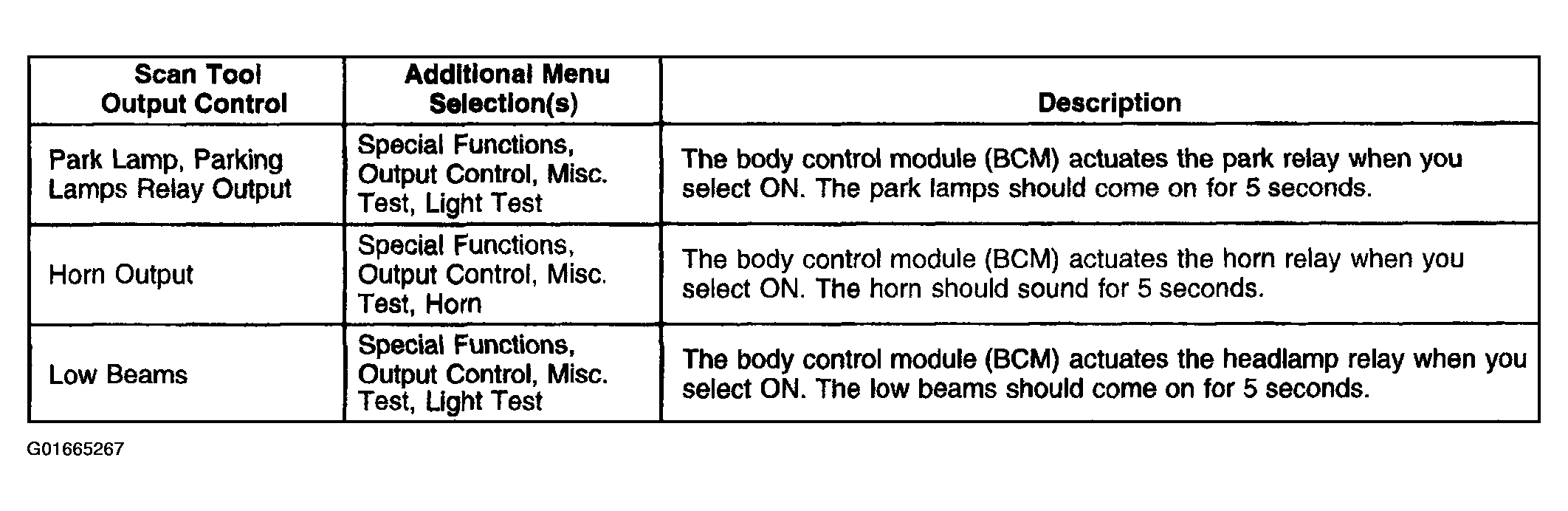

Fig 1: Body Control Module (BCM)
G01665267Courtesy of GENERAL MOTORS CORP.
