Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

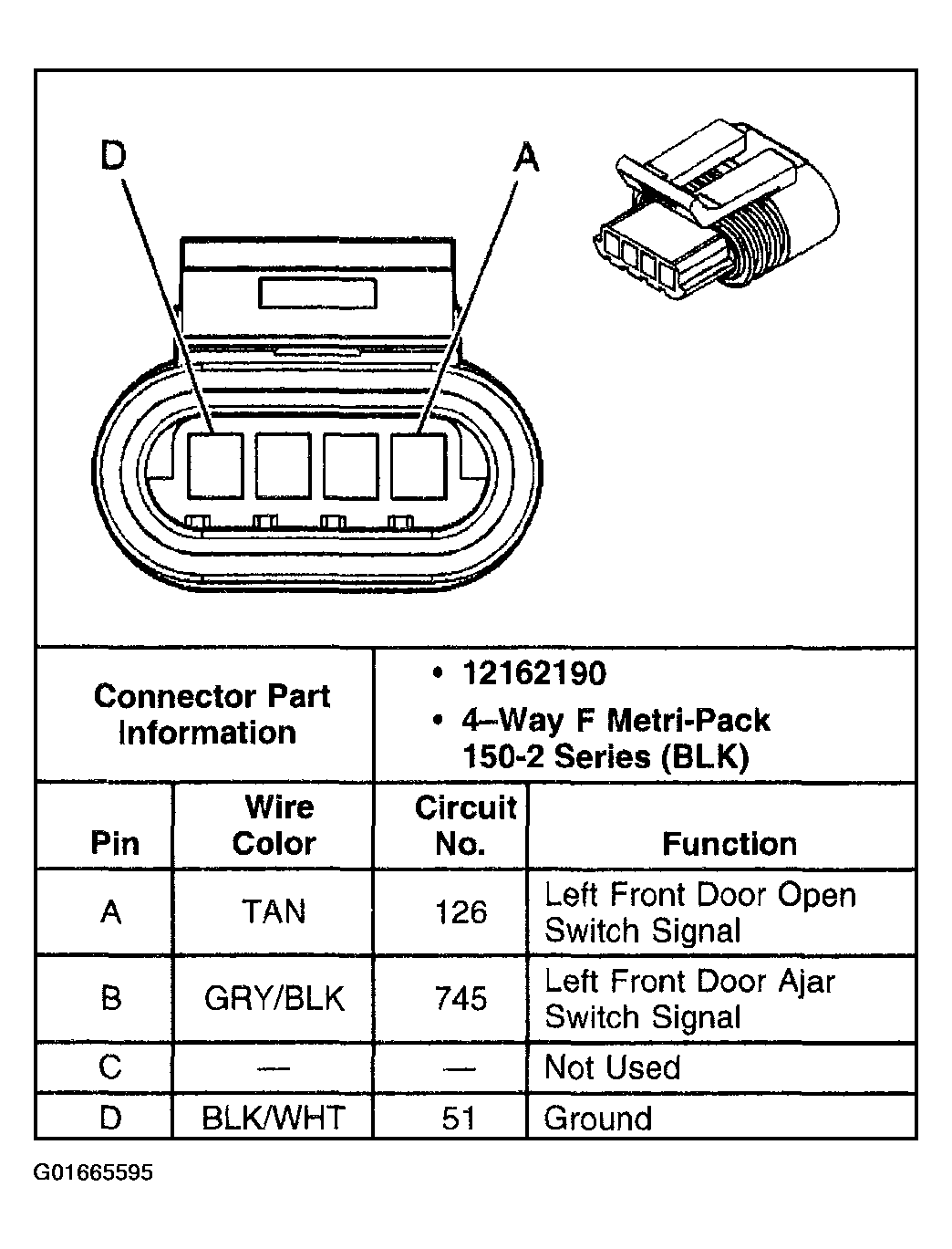

Fig 1: Door Lock Actuator Connector End View - Driver C1

G01665595

Courtesy of GENERAL MOTORS CORP.

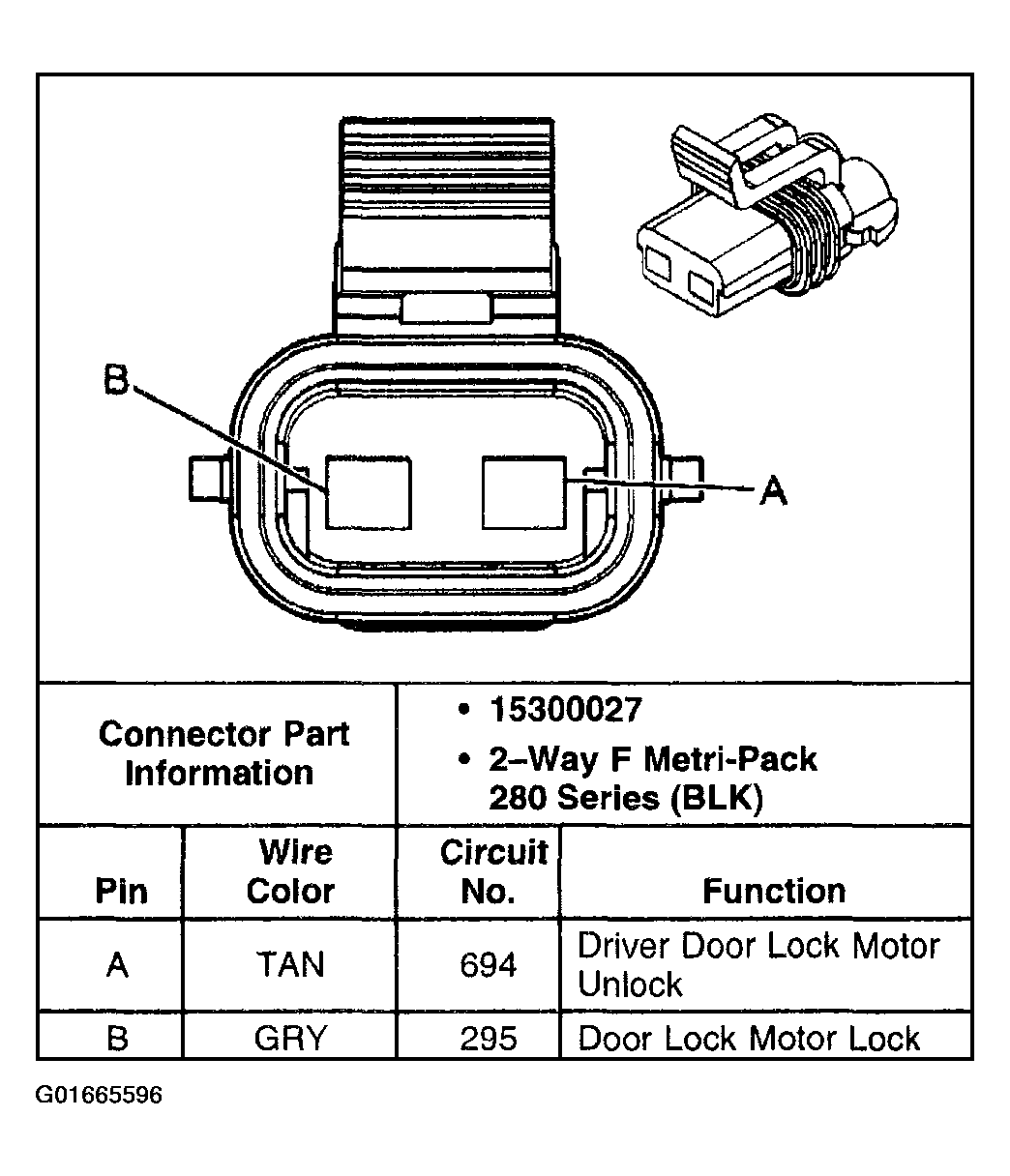

Fig 2: Door Lock Actuator Connector End View - Driver C2

G01665596

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Lock Actuator Connector End View - Front Passenger C1

G01665597

Courtesy of GENERAL MOTORS CORP.

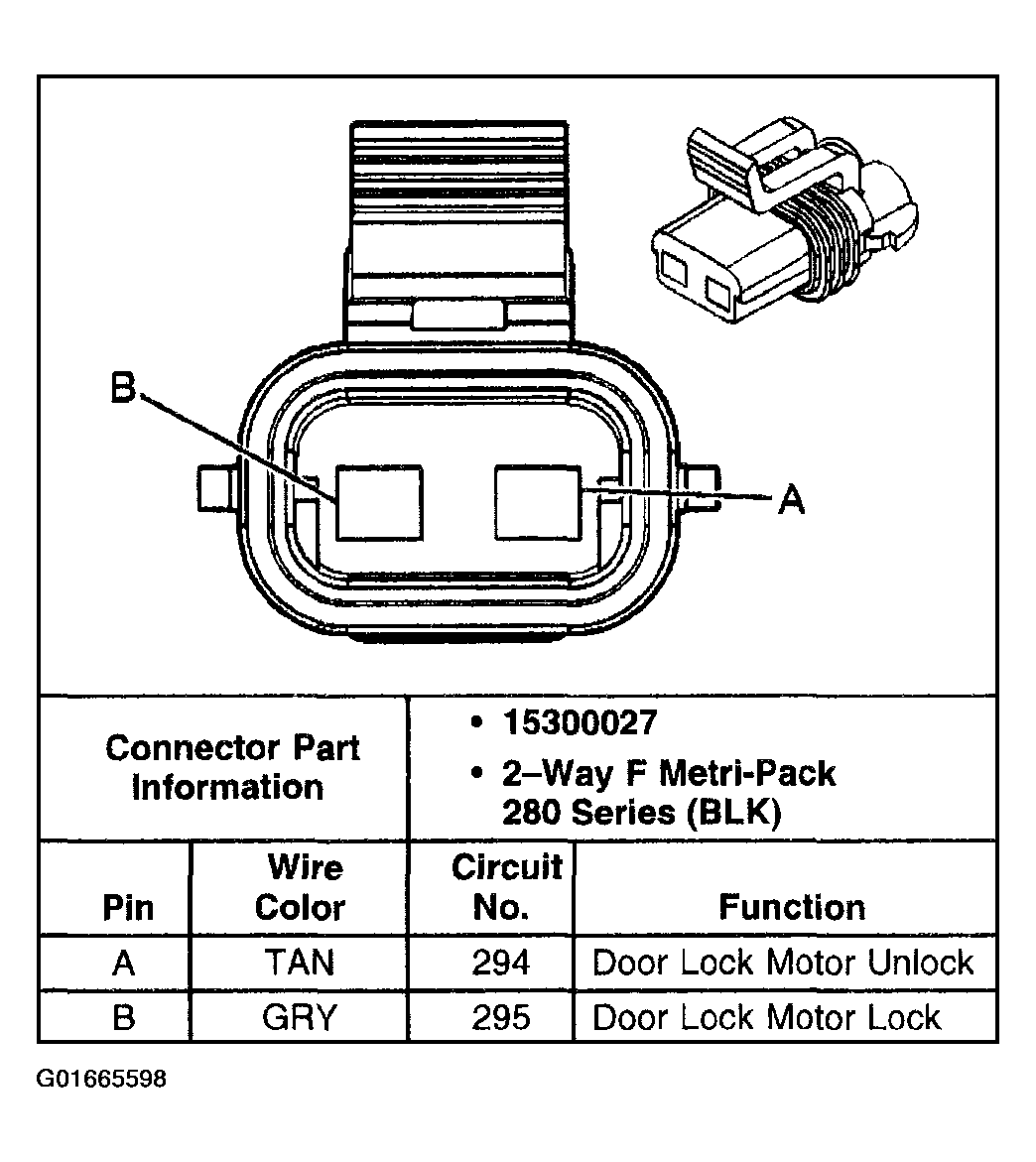

Fig 4: Door Lock Actuator Connector End View - Front Passenger C2

G01665598

Courtesy of GENERAL MOTORS CORP.

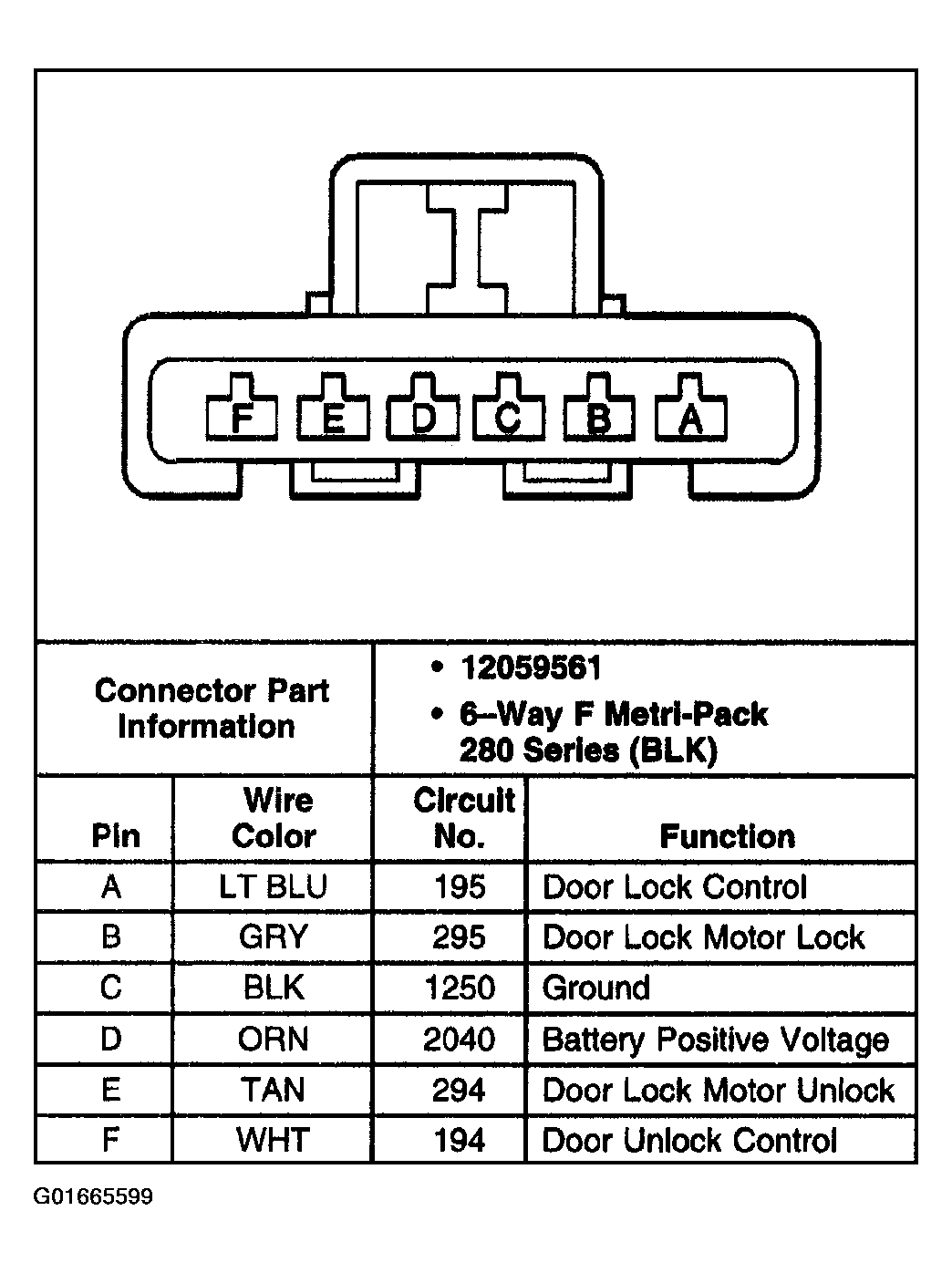

Fig 5: Door Lock Relay Connector End View

G01665599

Courtesy of GENERAL MOTORS CORP.

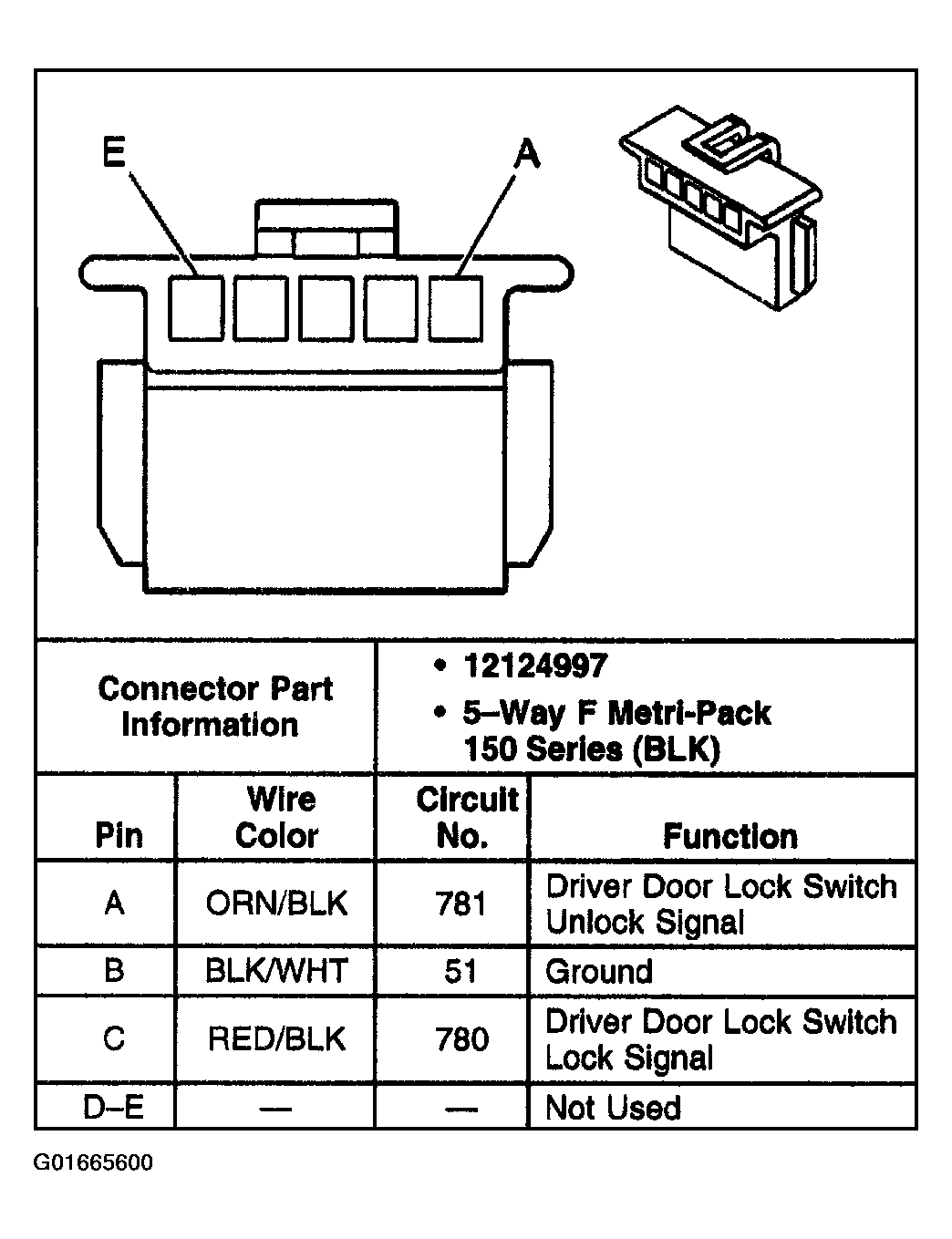

Fig 6: Door Lock Switch Connector End View - Driver

G01665600

Courtesy of GENERAL MOTORS CORP.

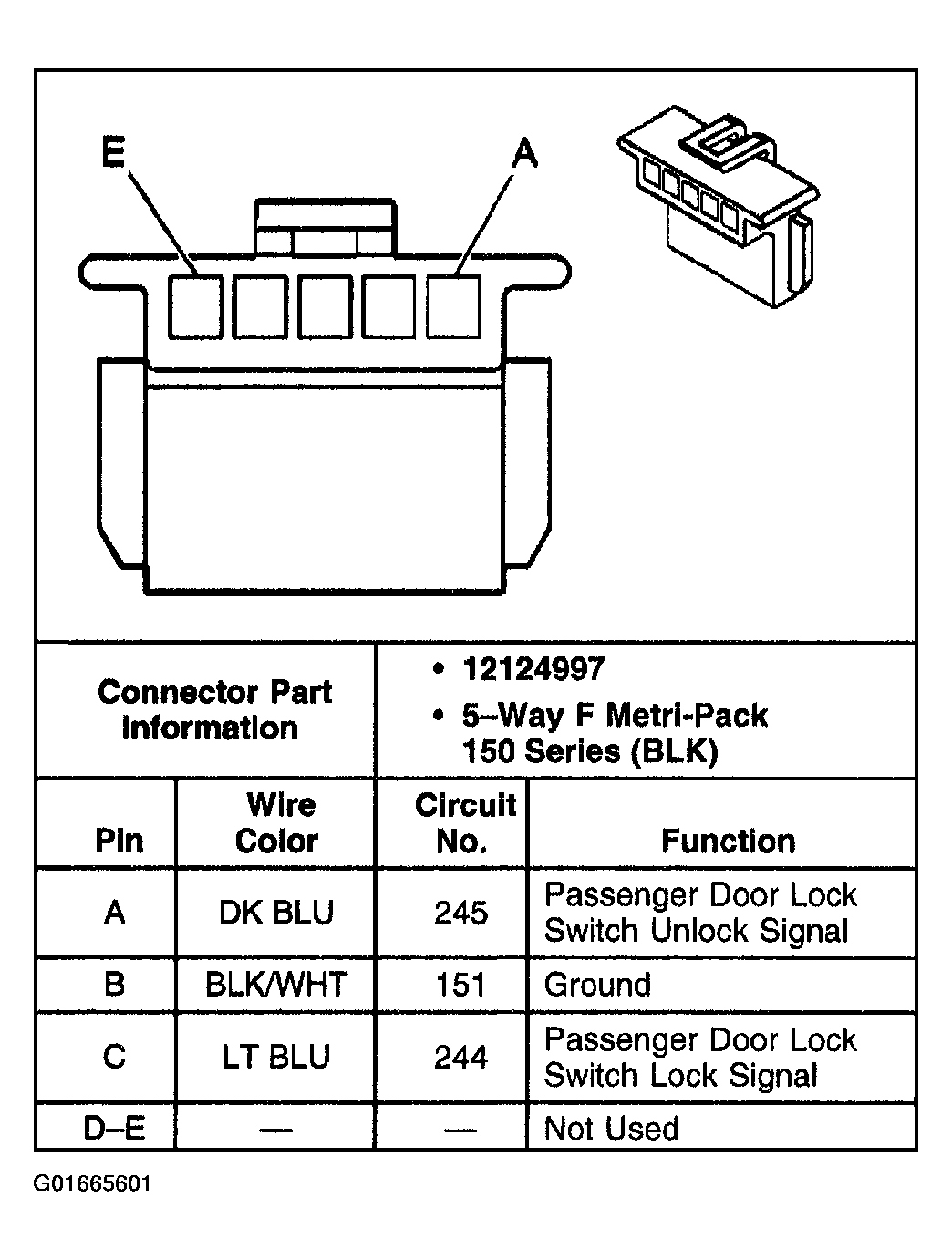

Fig 7: Door Lock Switch Connector End View - Front Passenger

G01665601

Courtesy of GENERAL MOTORS CORP.

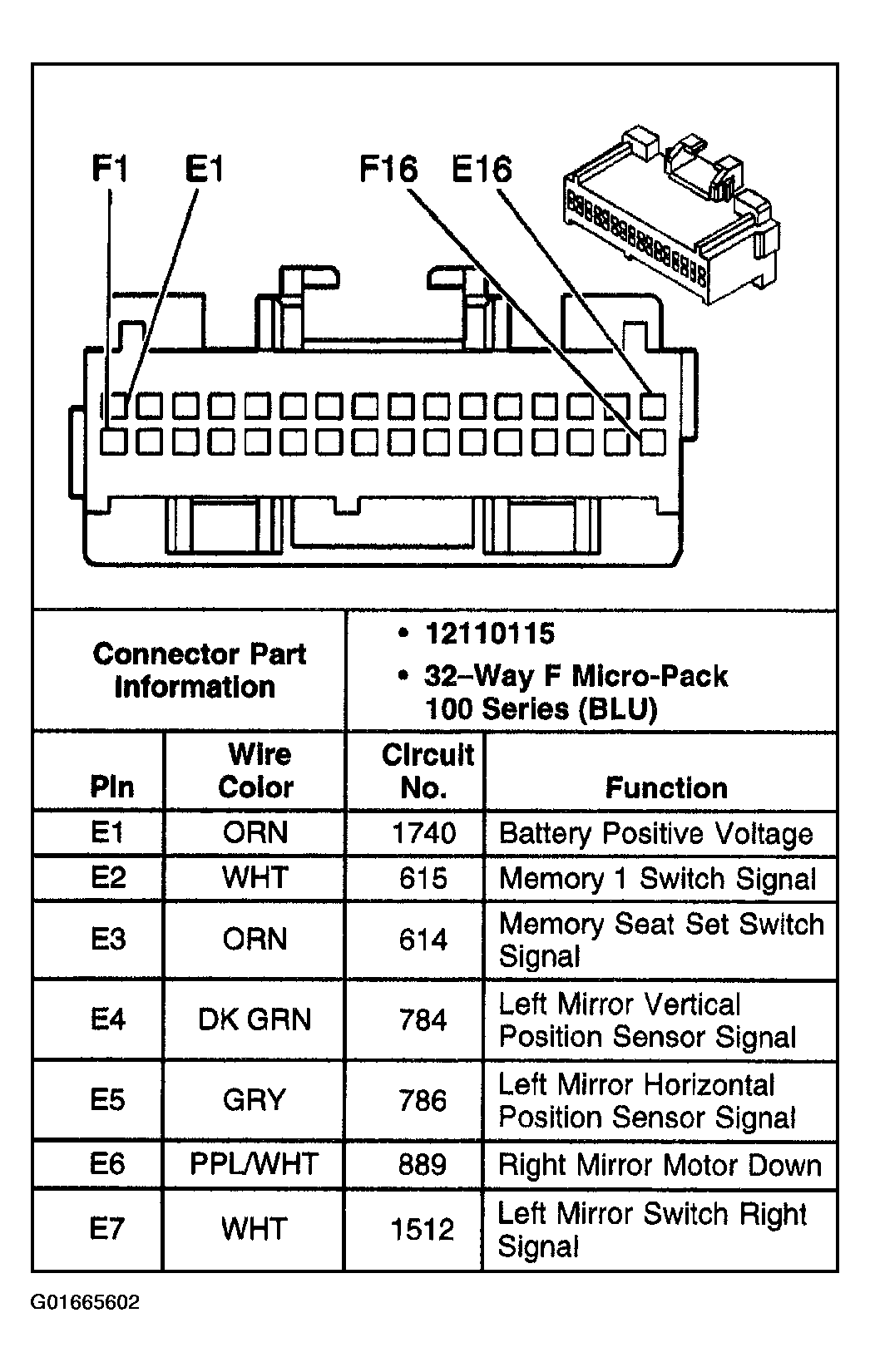

Fig 8: Memory Mirror Module (MMM) Connector End View (1 Of 2)

G01665602

Courtesy of GENERAL MOTORS CORP.

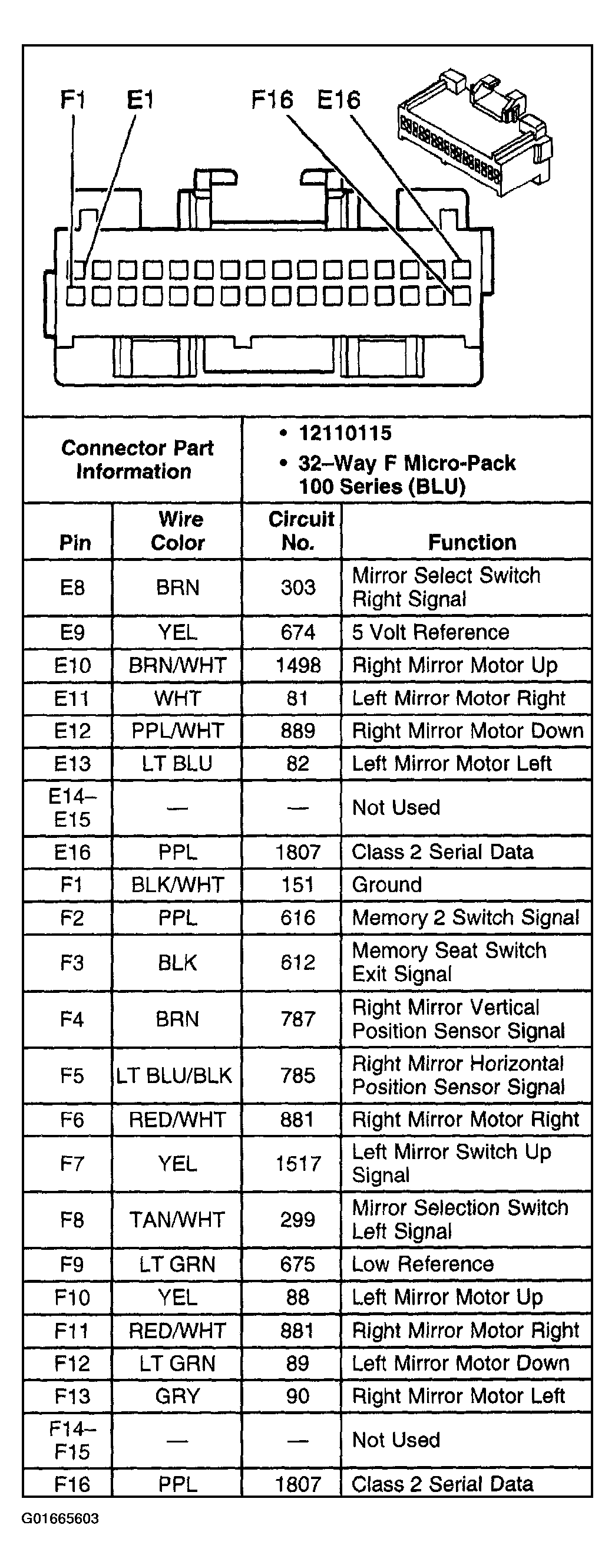

Fig 9: Memory Mirror Module (MMM) Connector End View (2 Of 2)

G01665603

Courtesy of GENERAL MOTORS CORP.

Fig 10: Memory/Personalization Function Switch Connector End View

G01665604

Courtesy of GENERAL MOTORS CORP.

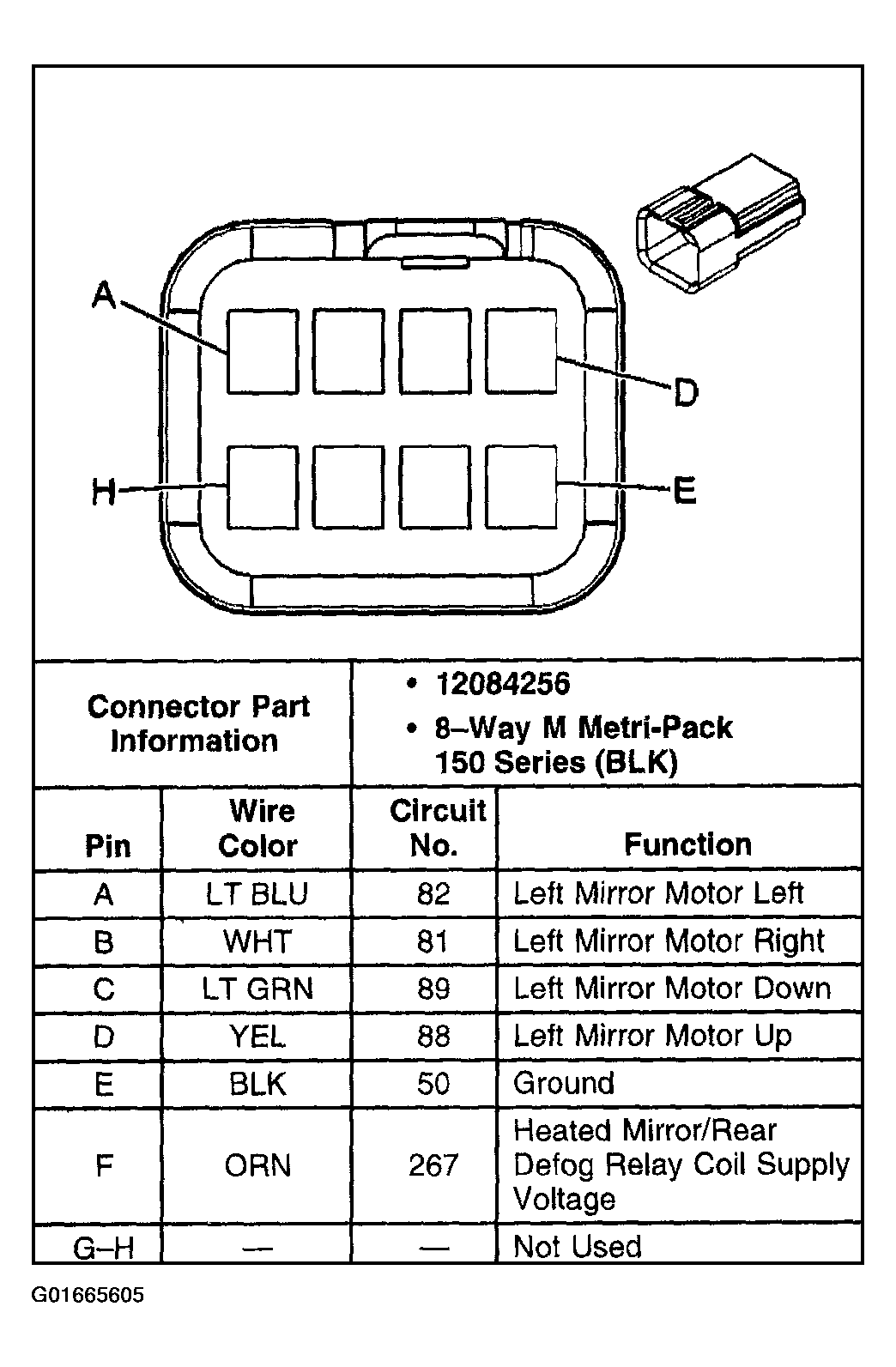

Fig 11: Outside Rearview Mirror Connector End View - Driver C1

G01665605

Courtesy of GENERAL MOTORS CORP.

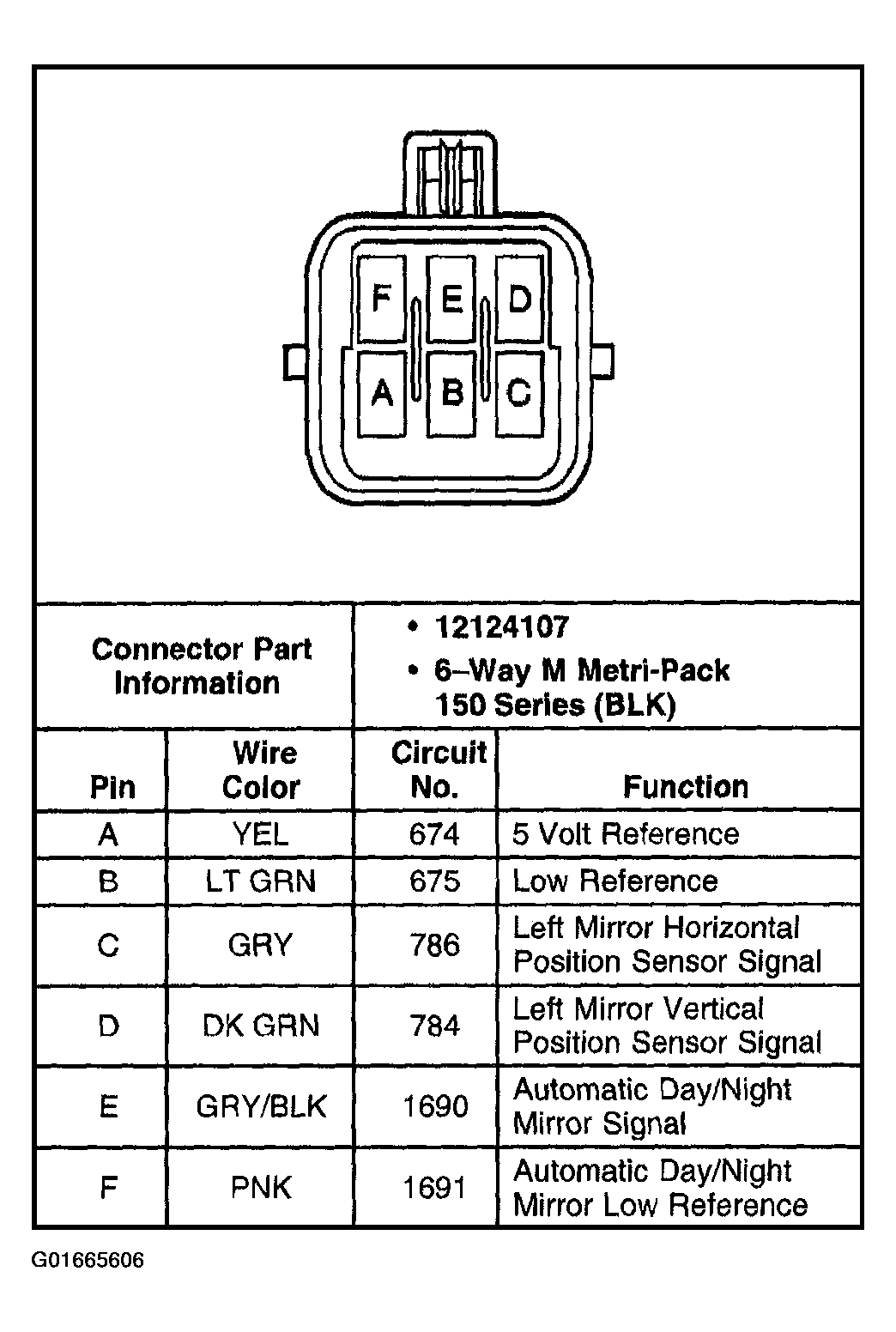

Fig 12: Outside Rearview Mirror Connector End View - Driver C2 (w/A45)

G01665606

Courtesy of GENERAL MOTORS CORP.

Fig 13: Outside Rearview Mirror Connector End View - Driver C3 (w/o A45)

G01665607

Courtesy of GENERAL MOTORS CORP.

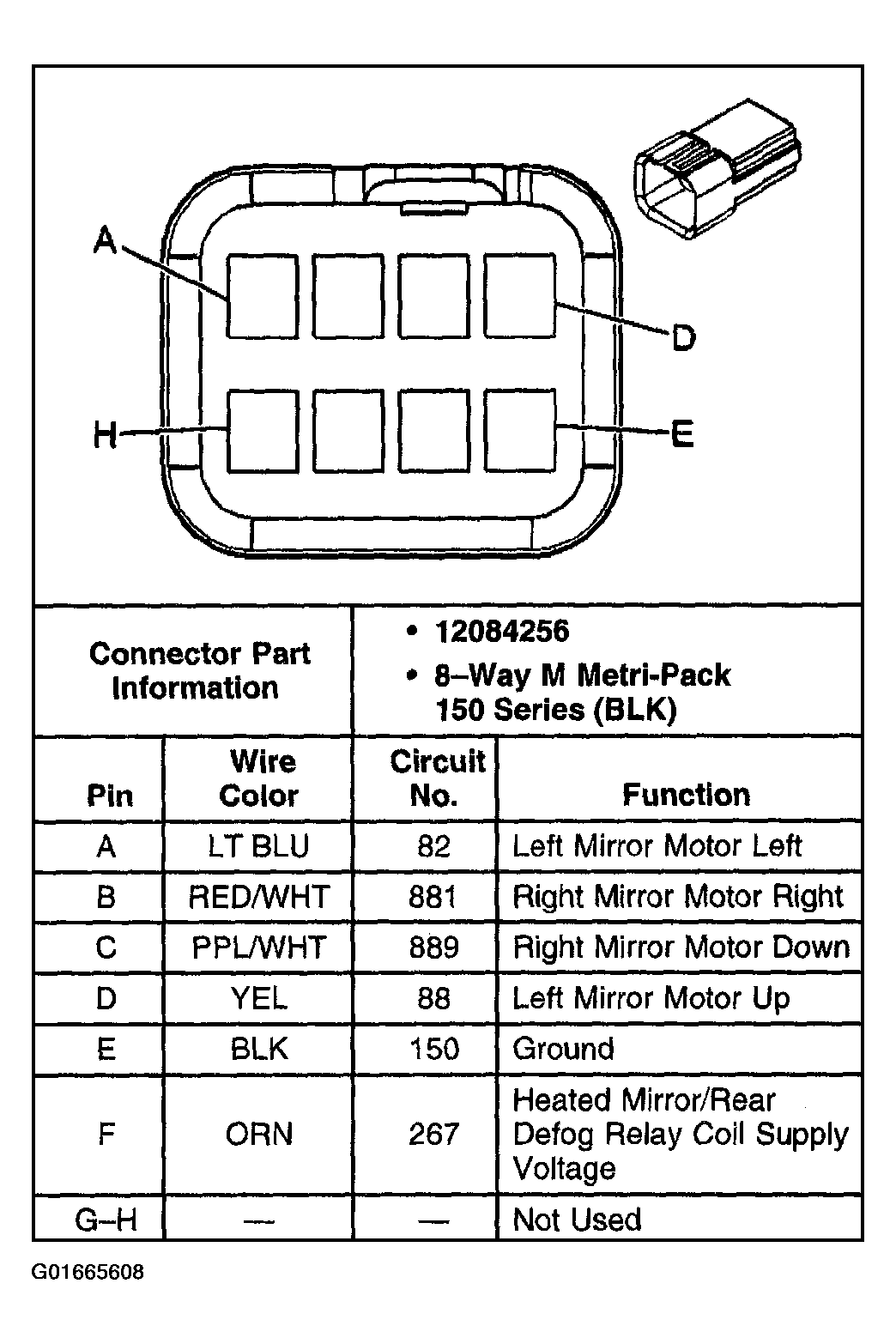

Fig 14: Outside Rearview Mirror Connector End View - Passenger (w/o A45)

G01665608

Courtesy of GENERAL MOTORS CORP.

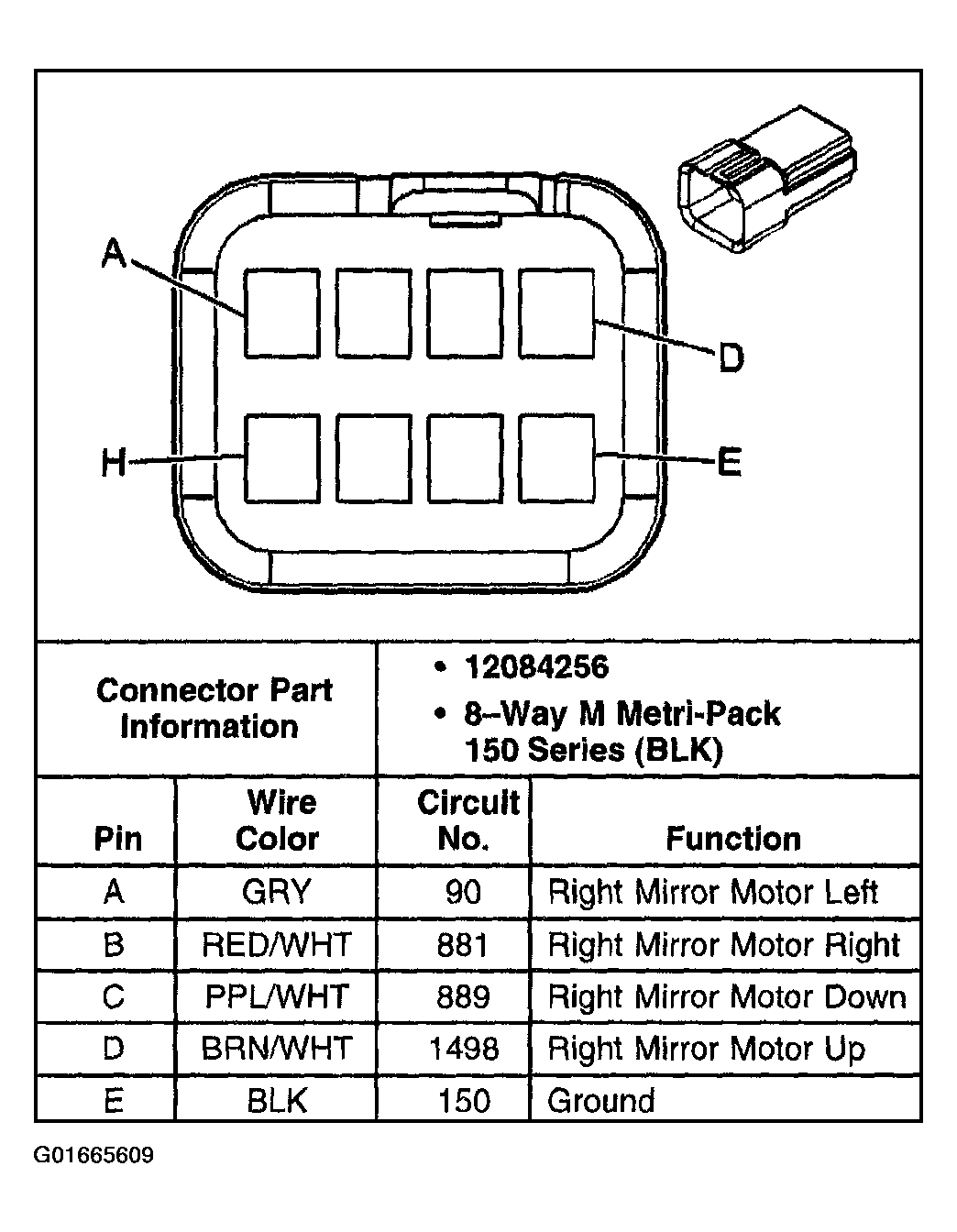

Fig 15: Outside Rearview Mirror Connector End View - Passenger C1 (w/A45) (1 Of 2)

G01665609

Courtesy of GENERAL MOTORS CORP.

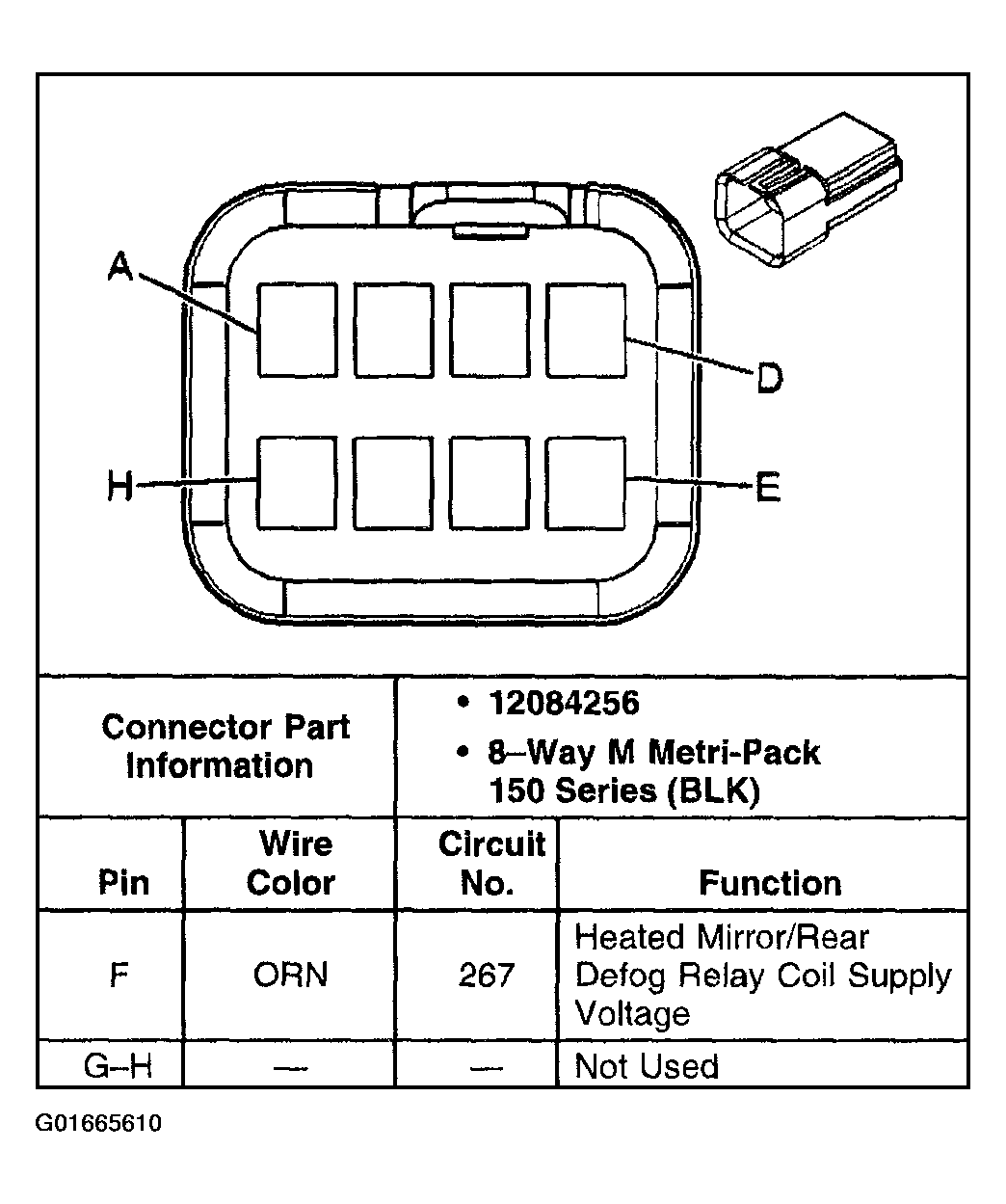

Fig 16: Outside Rearview Mirror Connector End View - Passenger C1 (w/A45) (2 Of 2)

G01665610

Courtesy of GENERAL MOTORS CORP.

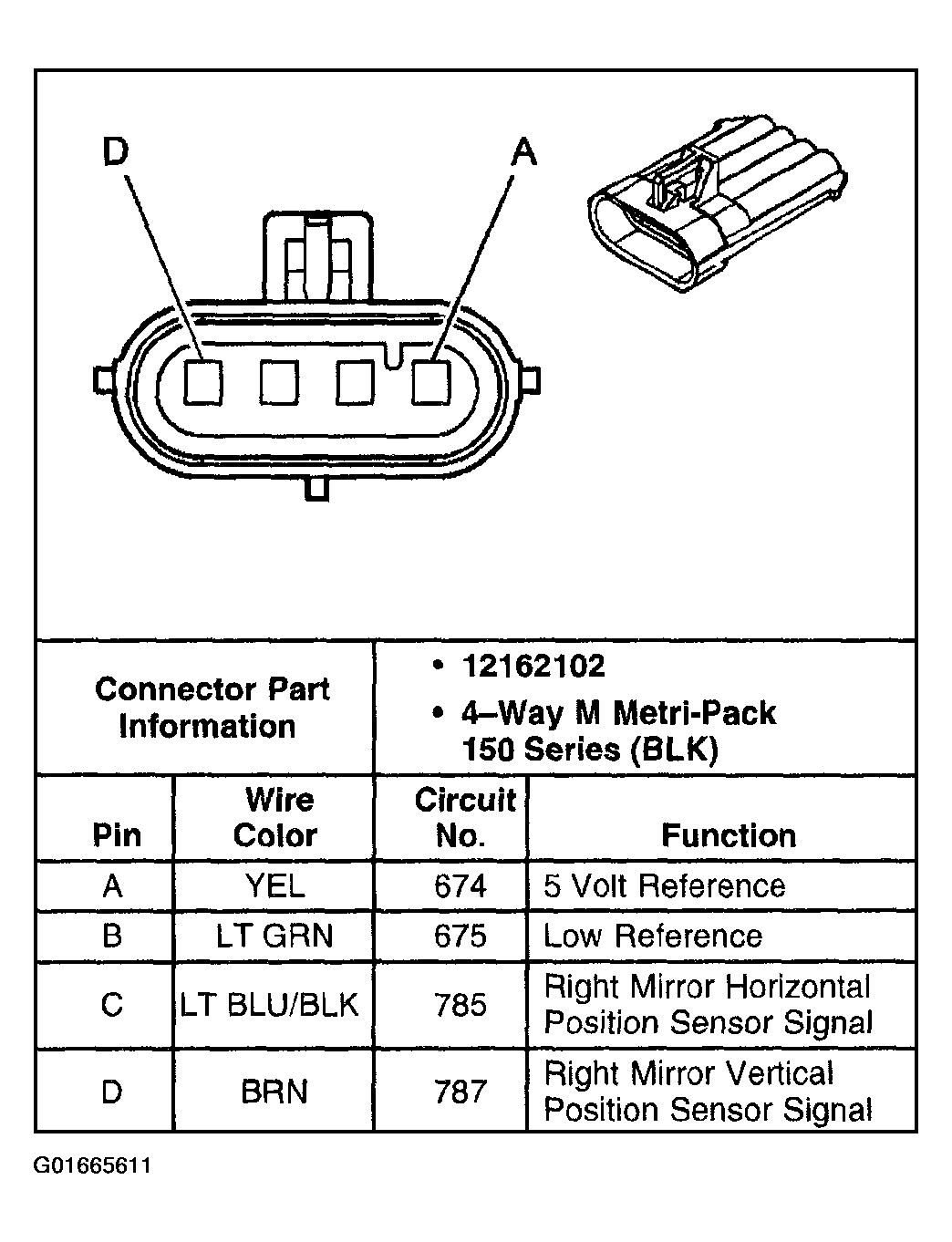

Fig 17: Outside Rearview Mirror Connector End View - Passenger C2 (w/A45)

G01665611

Courtesy of GENERAL MOTORS CORP.

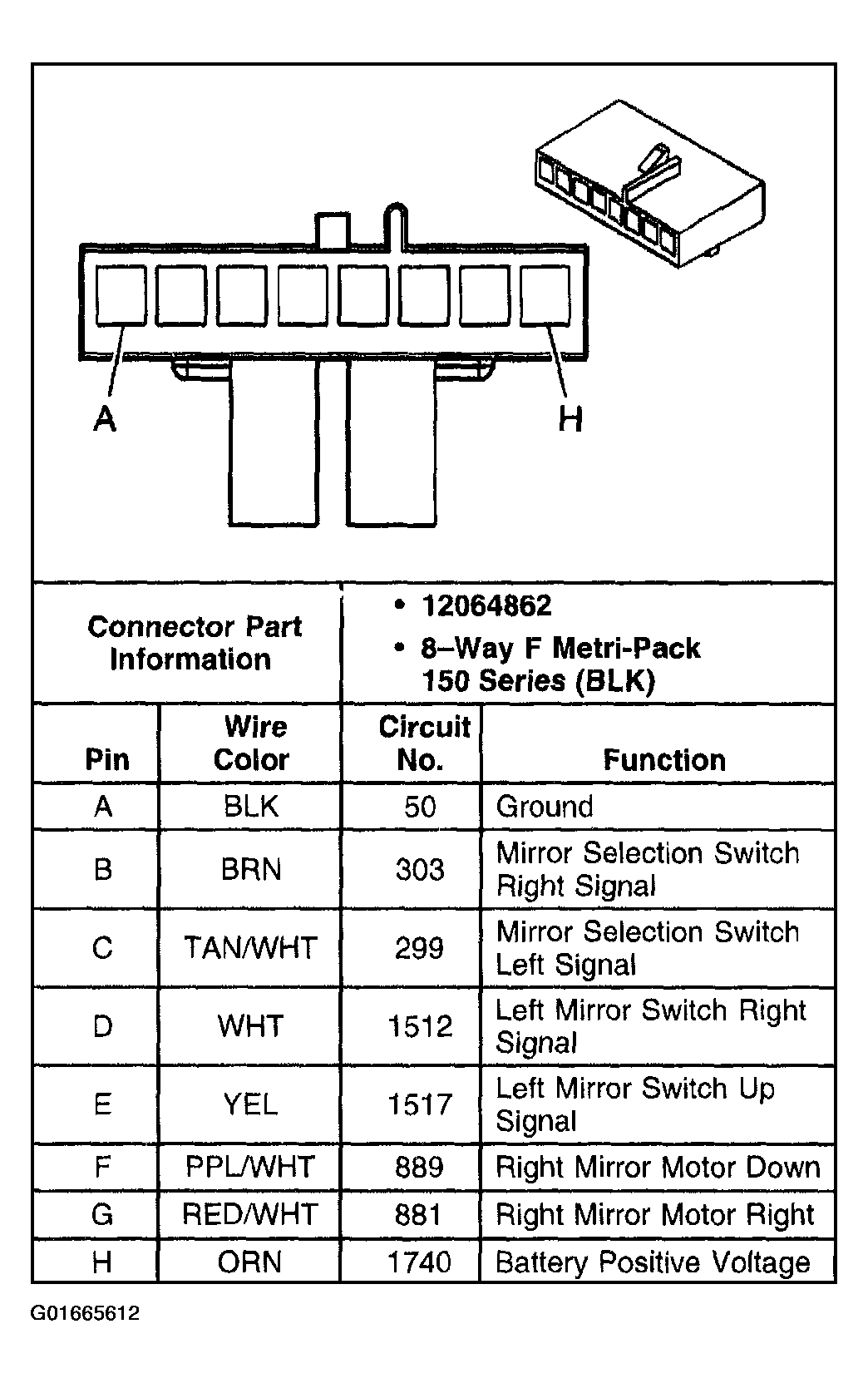

Fig 18: Outside Rearview Mirror Switch Connector End View (w/A45)

G01665612

Courtesy of GENERAL MOTORS CORP.

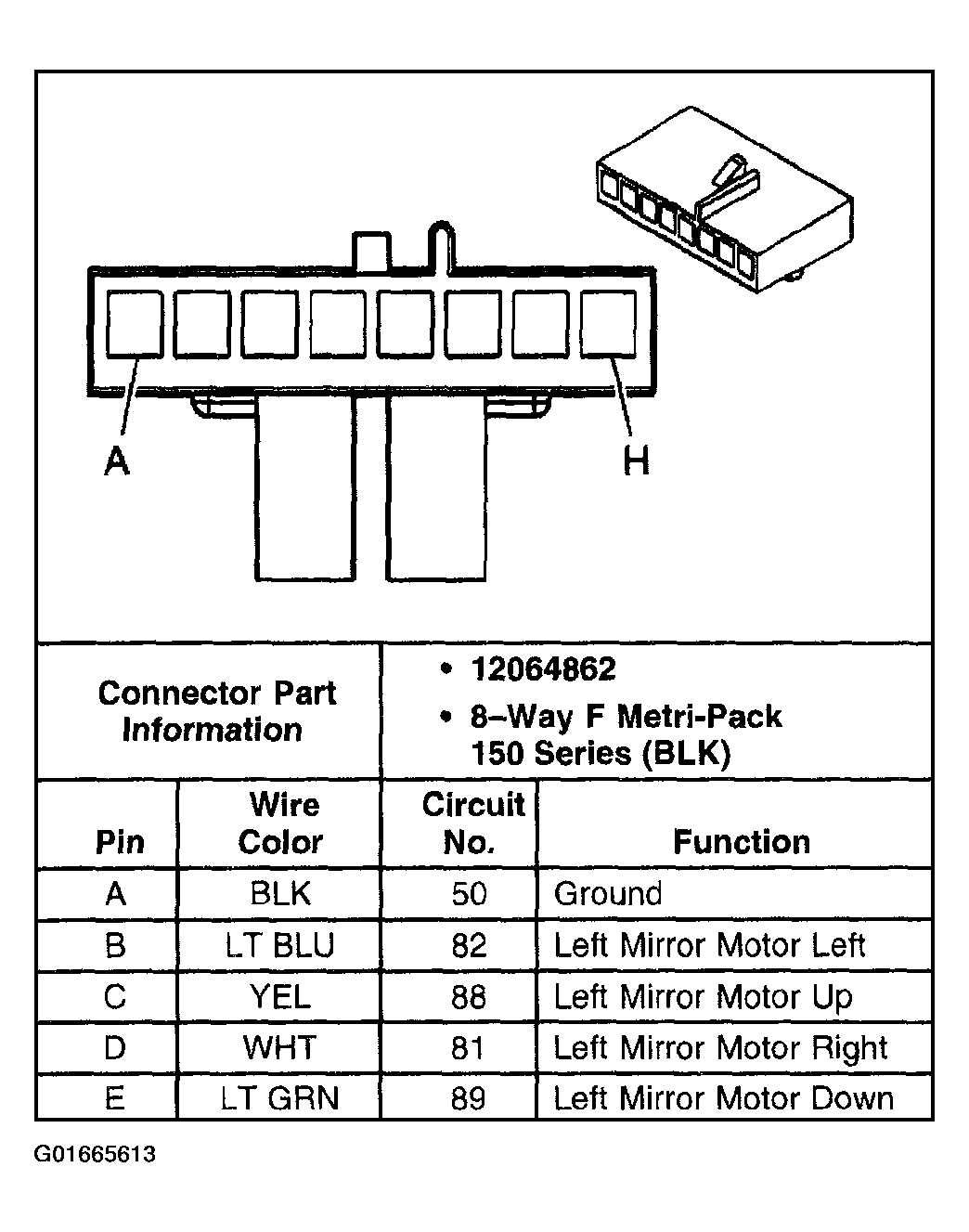

Fig 19: Outside Rearview Mirror Switch Connector End View (w/o A45) (1 Of 2)

G01665613

Courtesy of GENERAL MOTORS CORP.

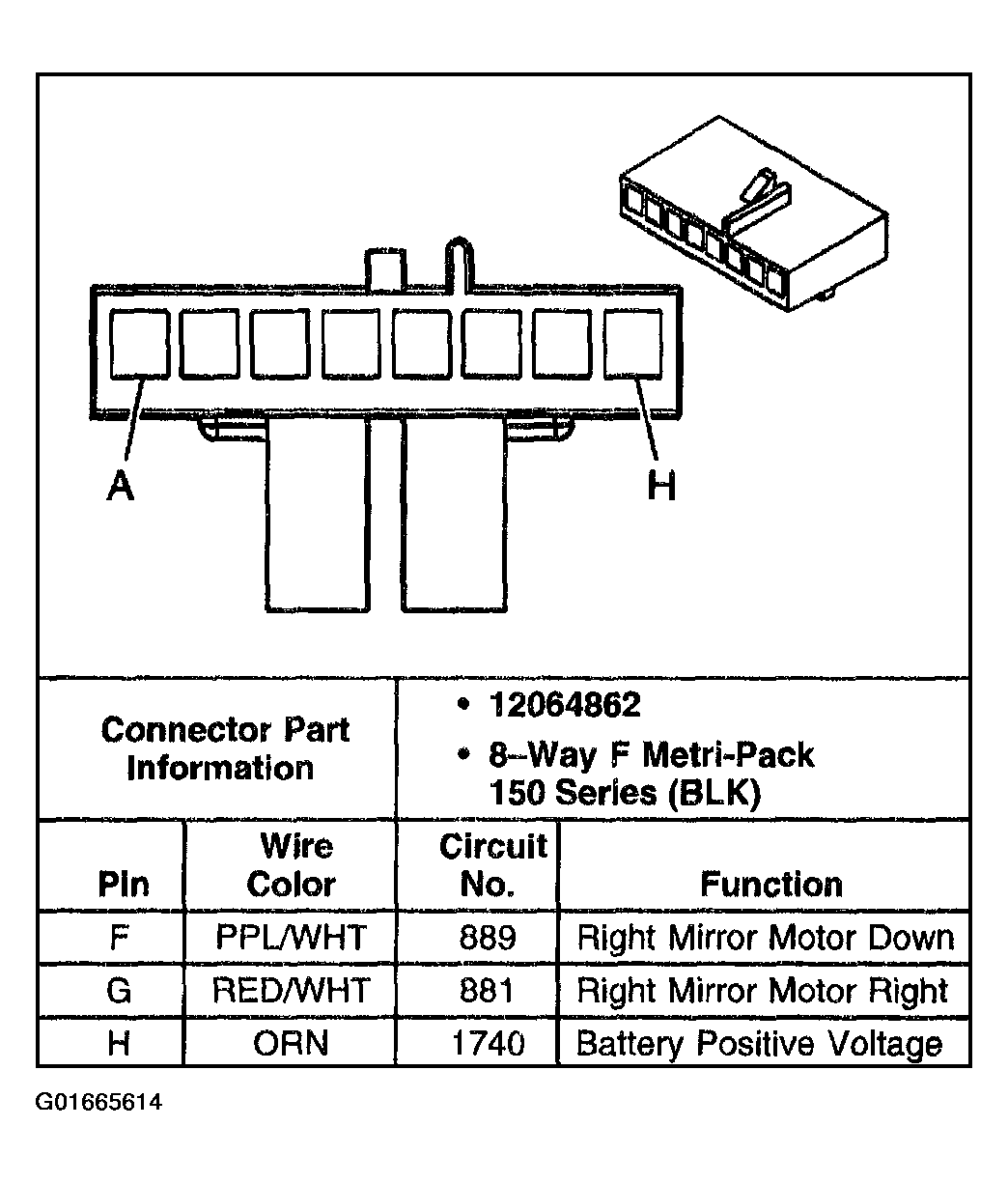

Fig 20: Outside Rearview Mirror Switch Connector End View (w/o A45) (2 Of 2)

G01665614

Courtesy of GENERAL MOTORS CORP.

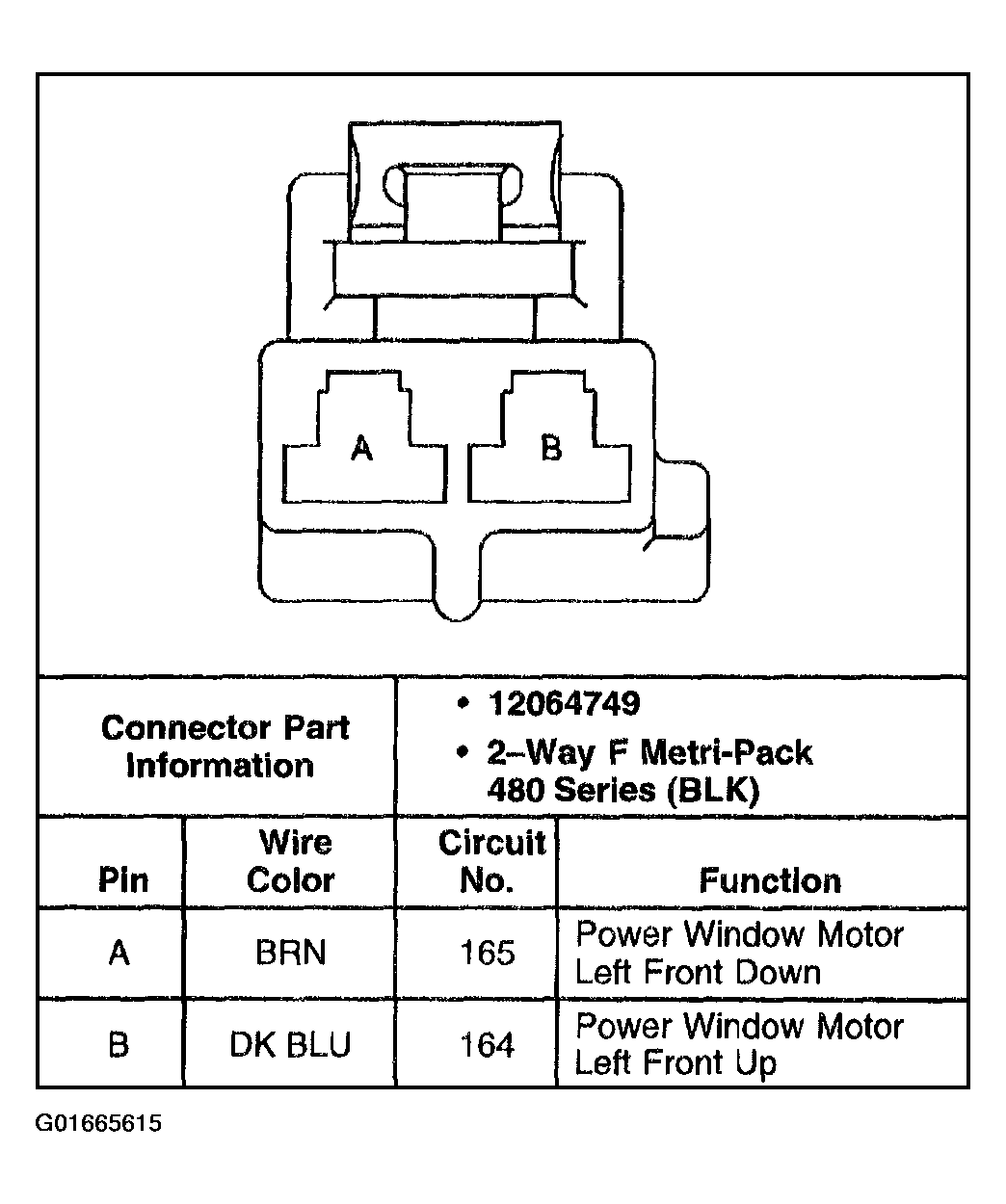

Fig 21: Window Motor Connector End View - Driver

G01665615

Courtesy of GENERAL MOTORS CORP.

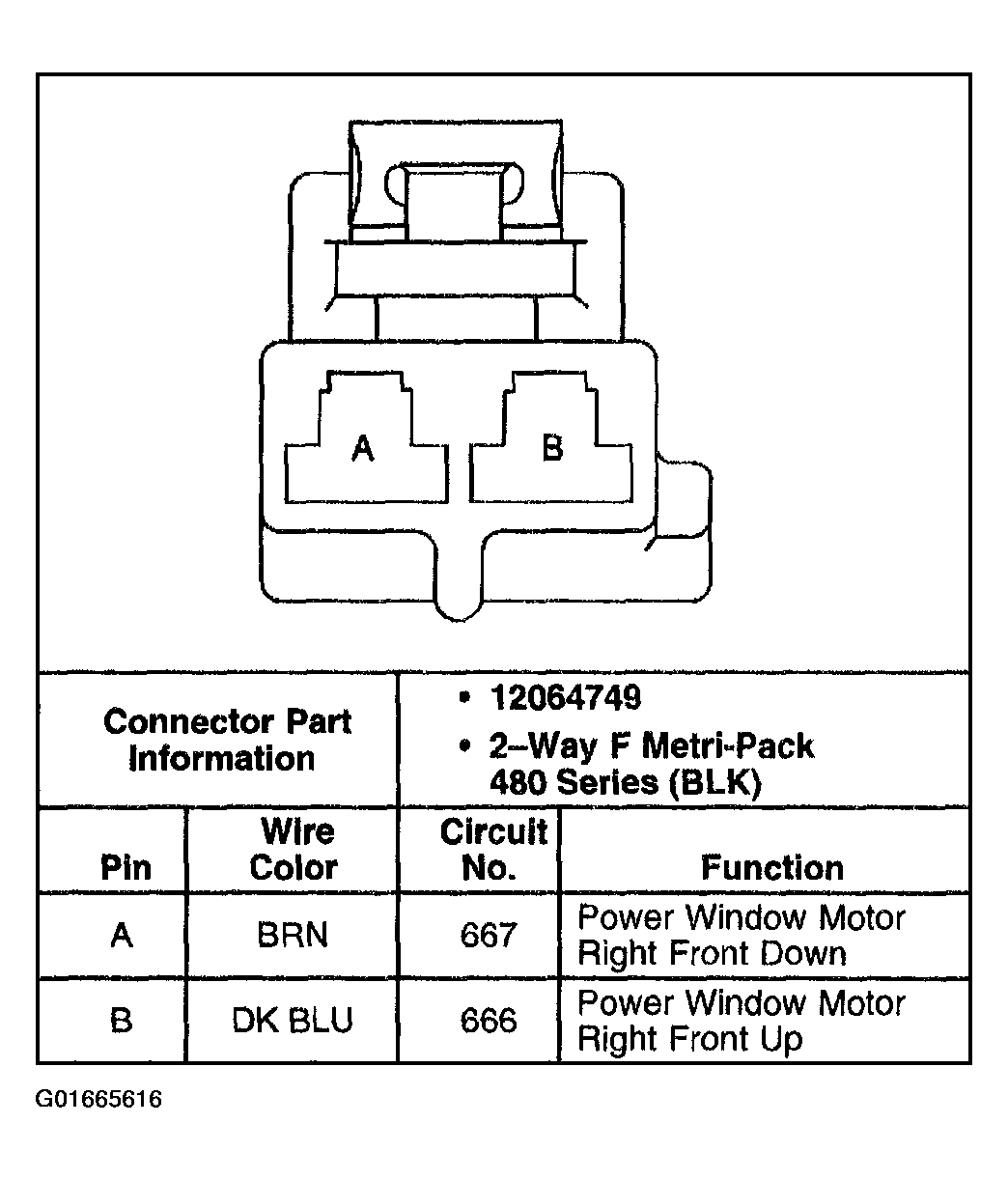

Fig 22: Window Motor Connector End View - Front Passenger

G01665616

Courtesy of GENERAL MOTORS CORP.

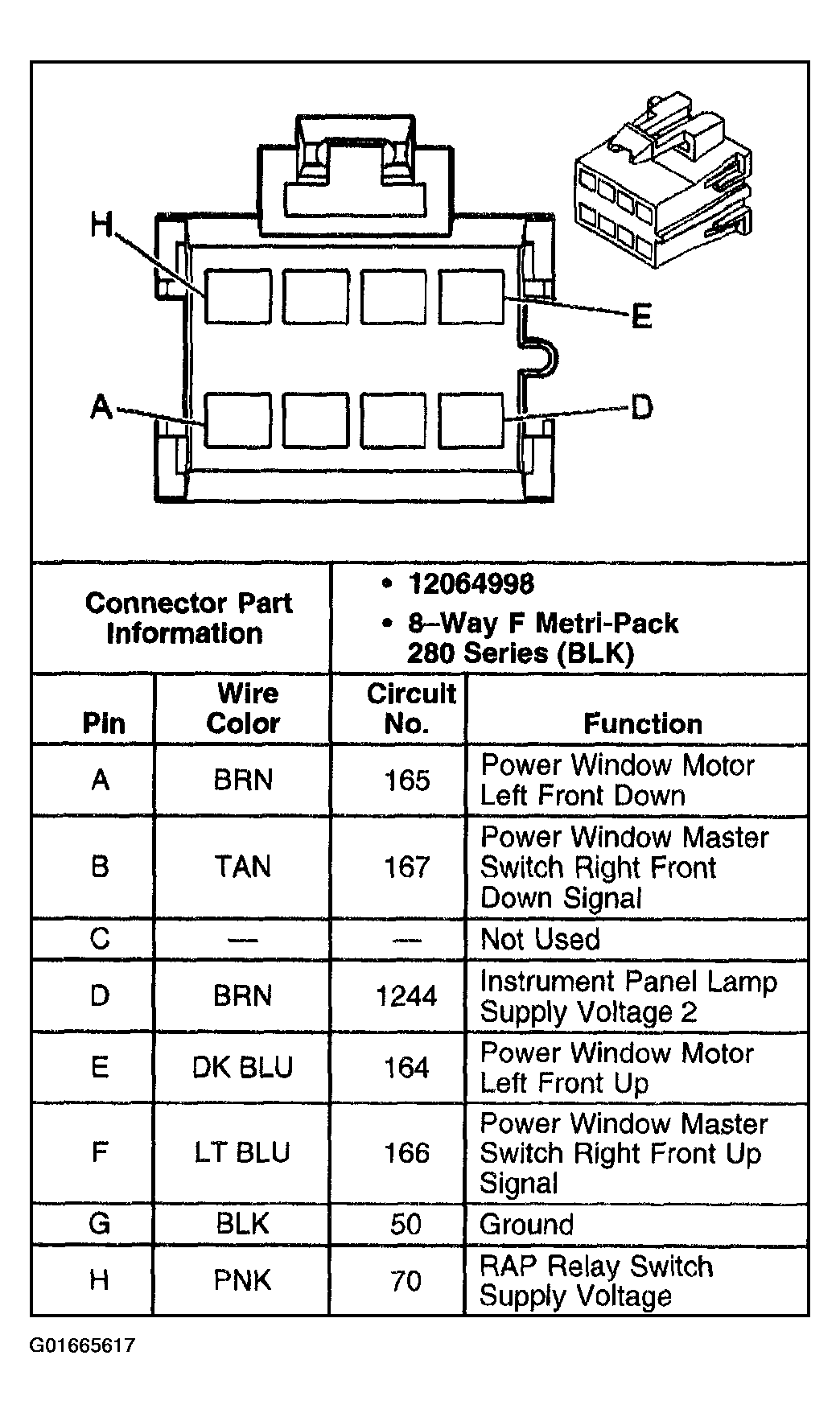

Fig 23: Window Switch Connector End View - Driver

G01665617

Courtesy of GENERAL MOTORS CORP.

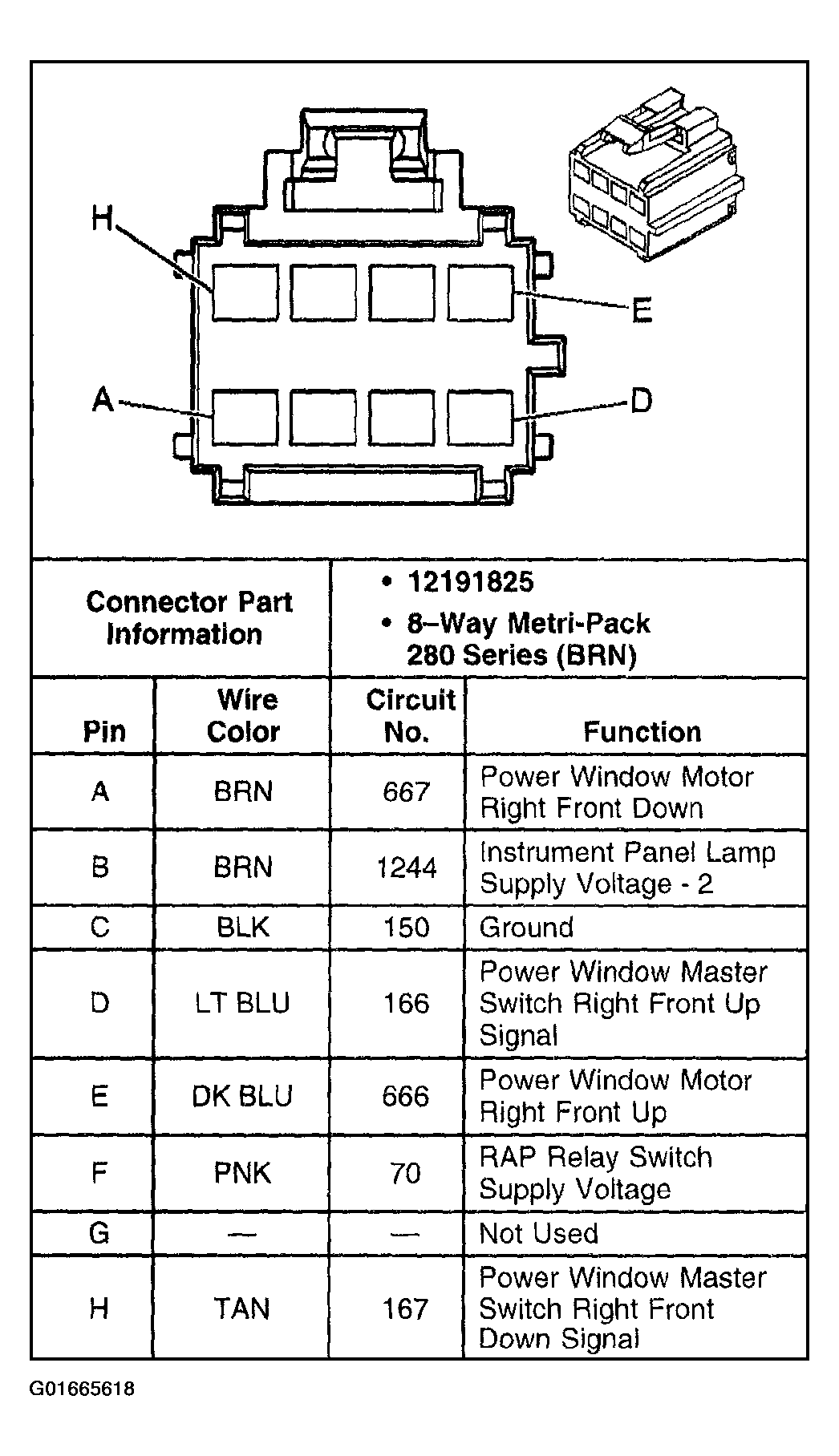

Fig 24: Window Switch Connector End View - Front Passenger

G01665618

Courtesy of GENERAL MOTORS CORP.
