Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air compressor assembly with the bracket from the vehicle. Refer to Air Compressor Replacement .
  2. Rotate the spring clip 90 degrees out of the slot.
  3. Remove the air dryer from the air compressor assembly.
  4. Remove the seal from the air compressor, if the seal did not come off with the air dryer.

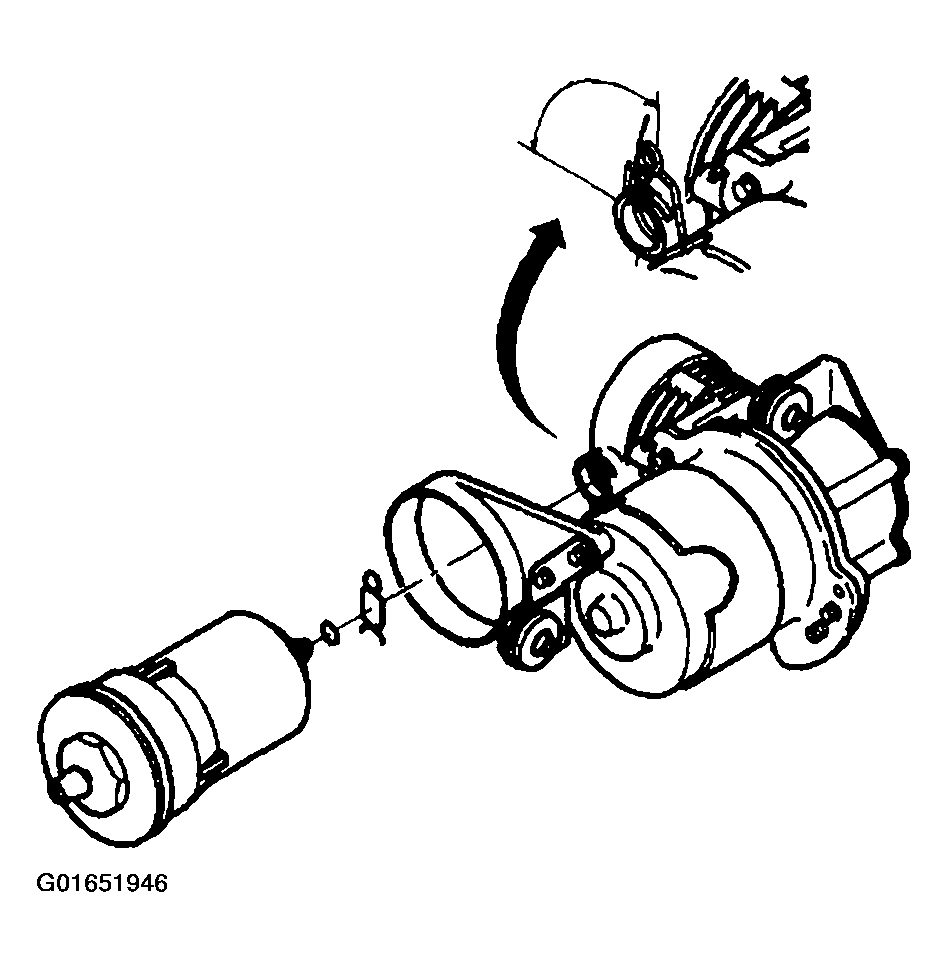

    Fig 1: Rotating Spring Clip 90 Degrees Out Of Slot
    G01651946Courtesy of GENERAL MOTORS CORP.
