Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle and suitably support. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

    Important:  Before disconnecting any air hose or air tube, clean the components and the surrounding area to prevent dirt and other foreign material from entering the ELC system.

  2. Disconnect the air tube from the air dryer.
  3. Remove the air tube from the air compressor bracket.
  4. Disconnect the vehicle harness connector from the air compressor connector.

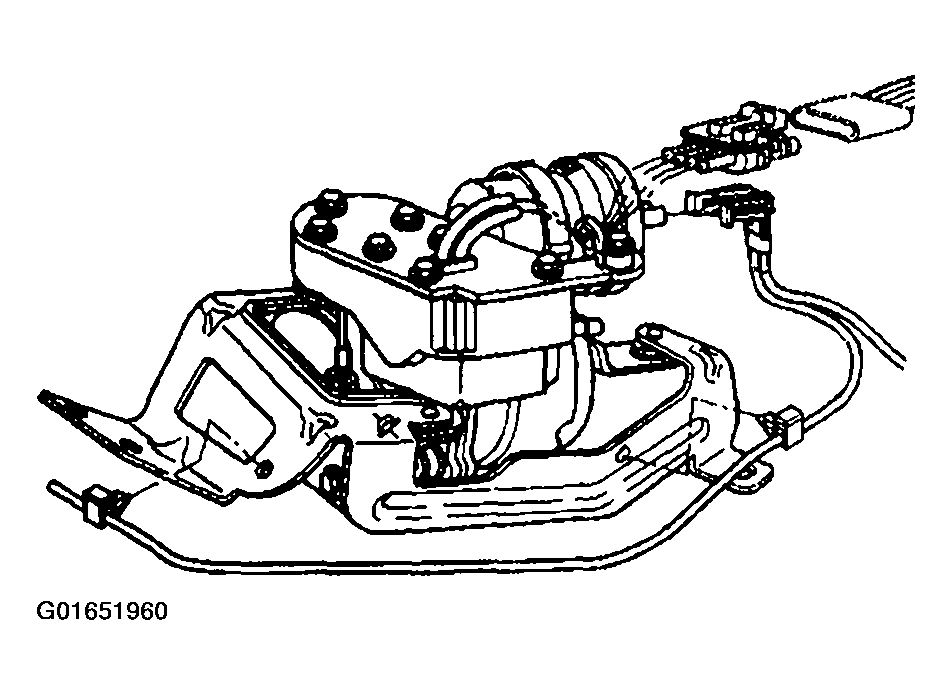

    Fig 1: Removing Air Tube From Air Compressor Bracket
    G01651960Courtesy of GENERAL MOTORS CORP.
  5. Remove the intake air filter from the vehicle.
  6. Remove the 3 bolts and the air compressor assembly from the vehicle.

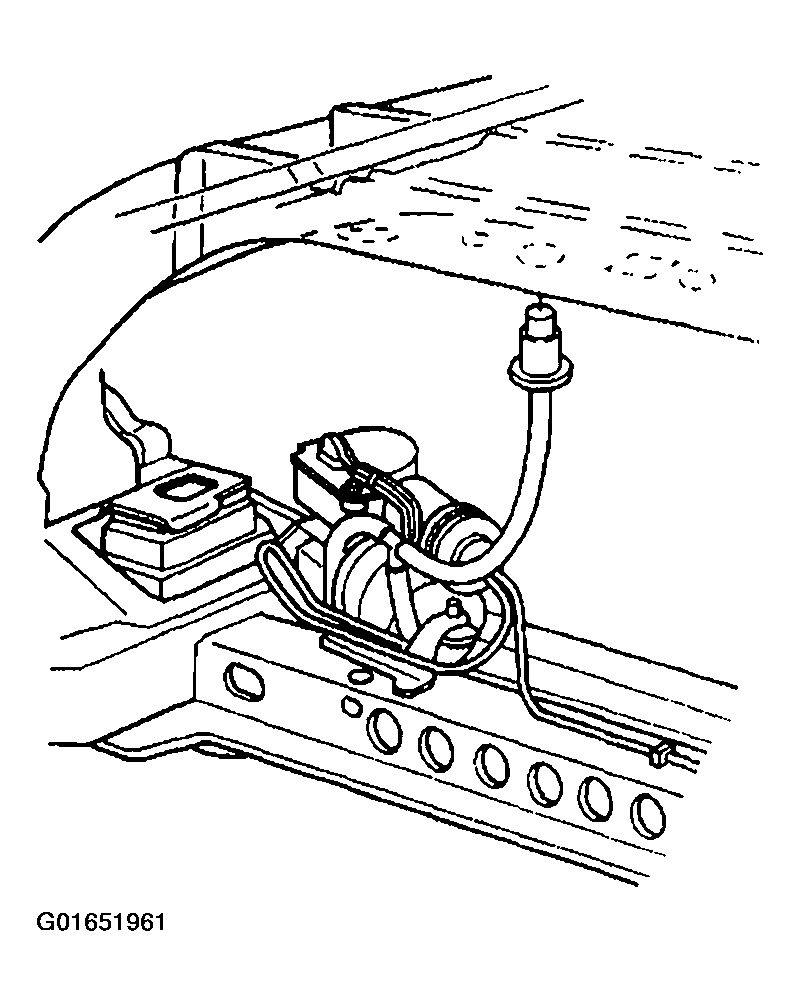

    Fig 2: Removing Intake Air Filter From Vehicle
    G01651961Courtesy of GENERAL MOTORS CORP.
  7. Remove 3 bolts and the air compressor assembly from the bracket.
  8. Remove the air dryer from the air compressor. Refer to Automatic Level Control Air Dryer Replacement .
  9. Remove the air hose from the air compressor at 2 places.

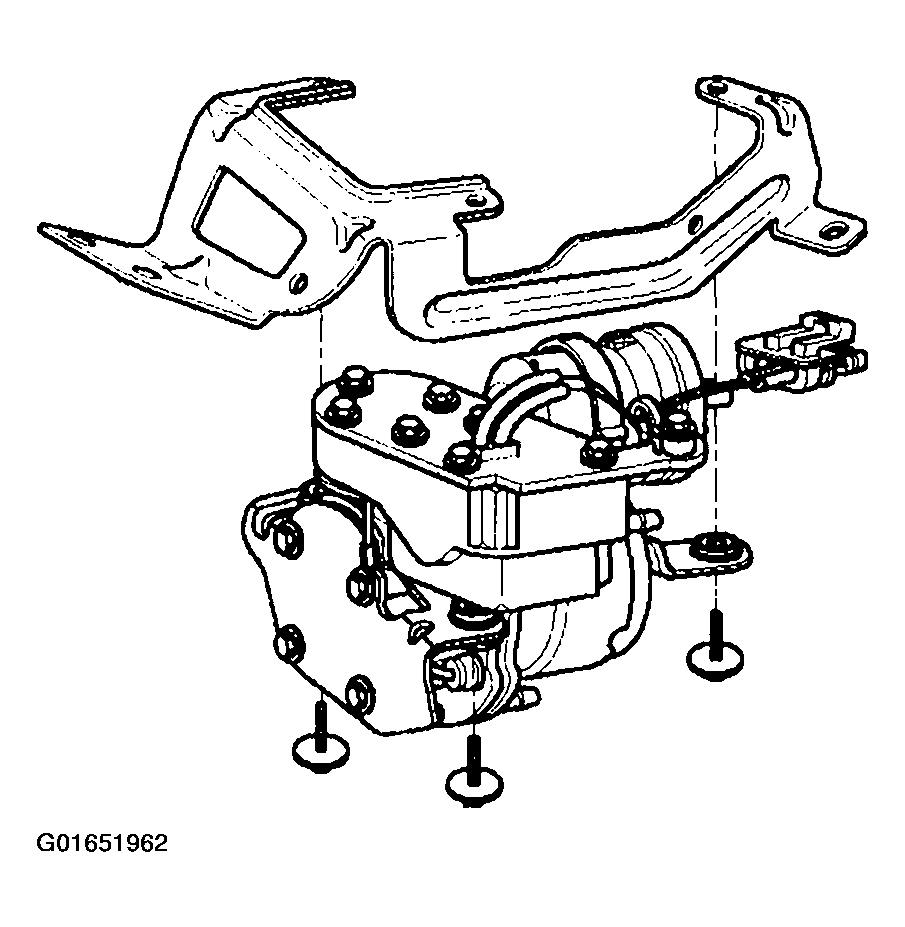

    Fig 3: Removing 3 Bolts & Air Compressor Assembly From Bracket
    G01651962Courtesy of GENERAL MOTORS CORP.
  10. Remove the 2 screws and the brackets from the air compressor.

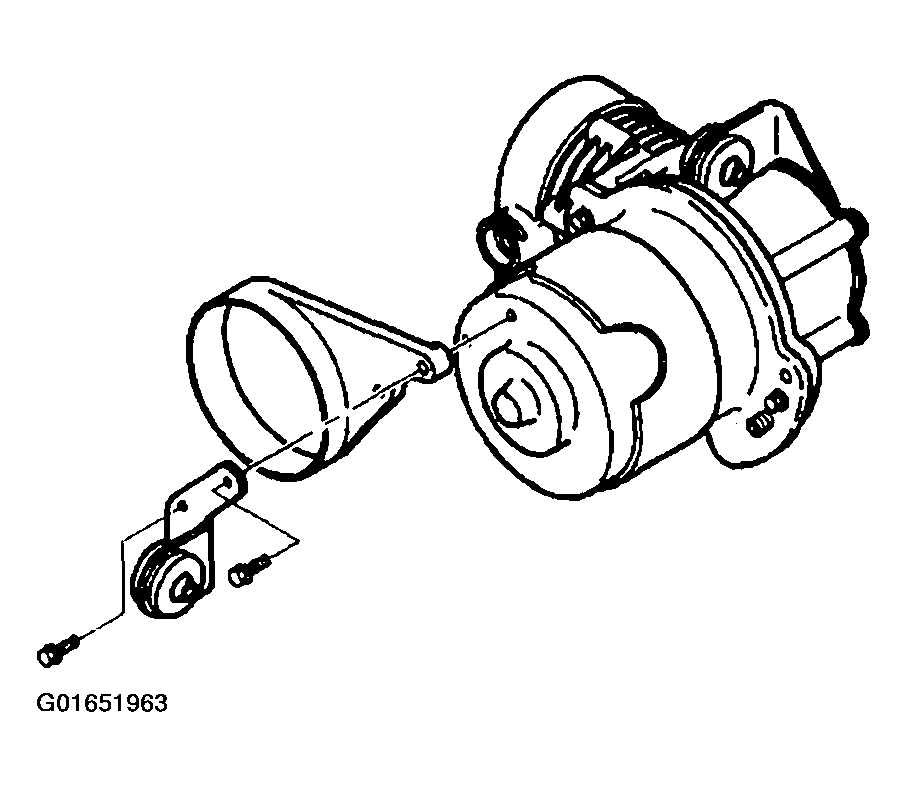

    Fig 4: Removing 2 Screws & Brackets From Air Compressor
    G01651963Courtesy of GENERAL MOTORS CORP.
