Cruise Control Schematics

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

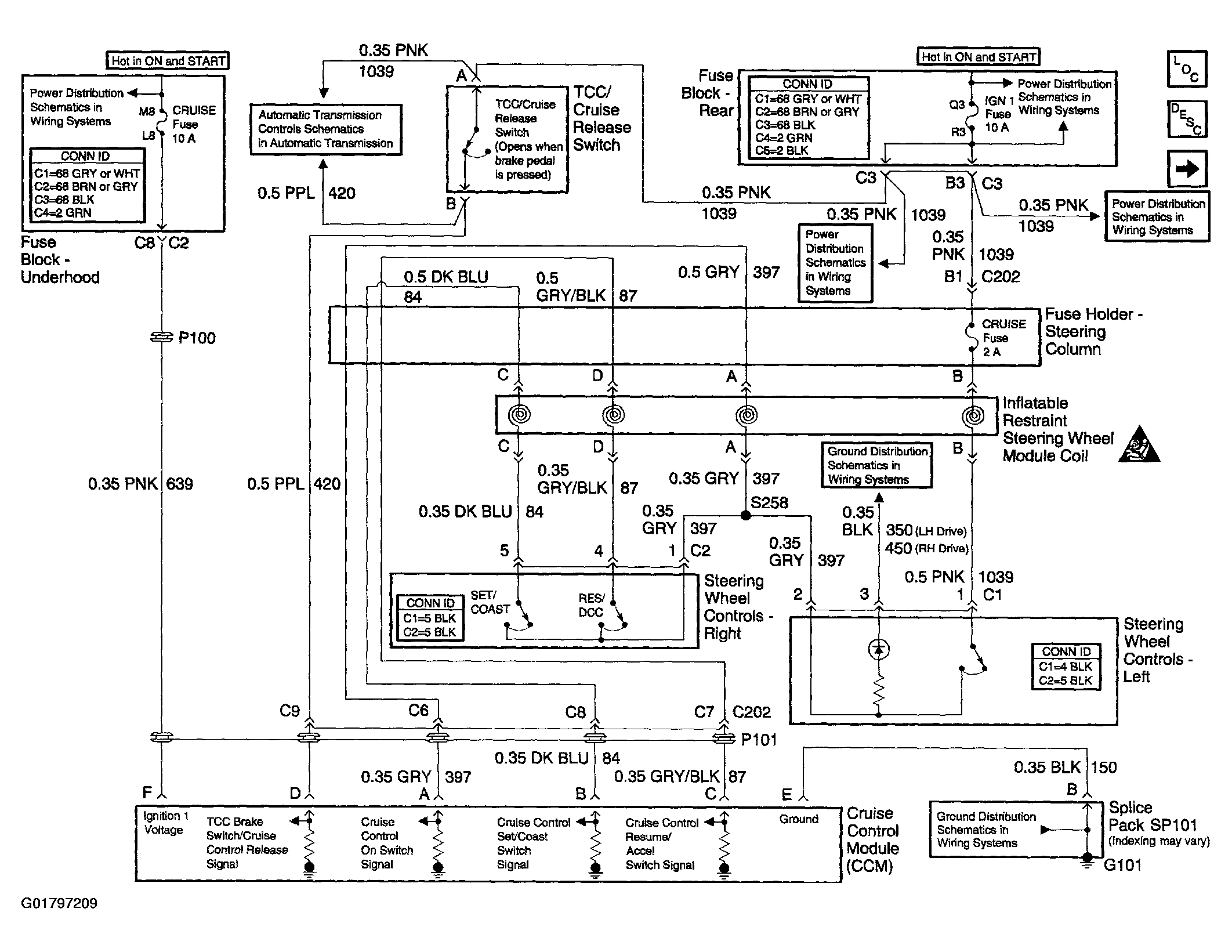

Fig 1: Cruise Control Module Power & Ground Schematics
G01797209Courtesy of GENERAL MOTORS CORP.

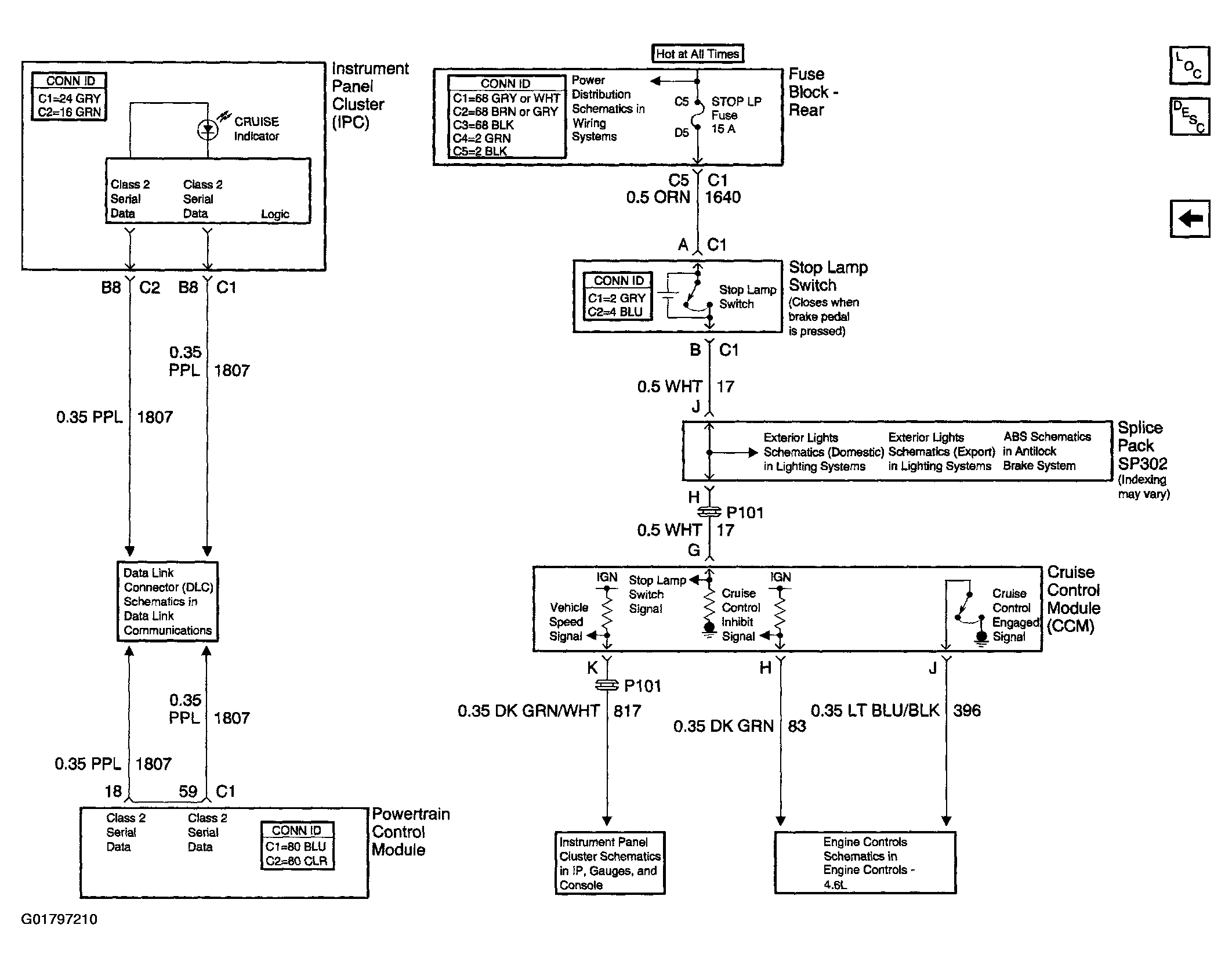

Fig 2: PCM Controls & Class 2 Schematics
G01797210Courtesy of GENERAL MOTORS CORP.
