Special Tools and Equipment
Special Tools and Equipment

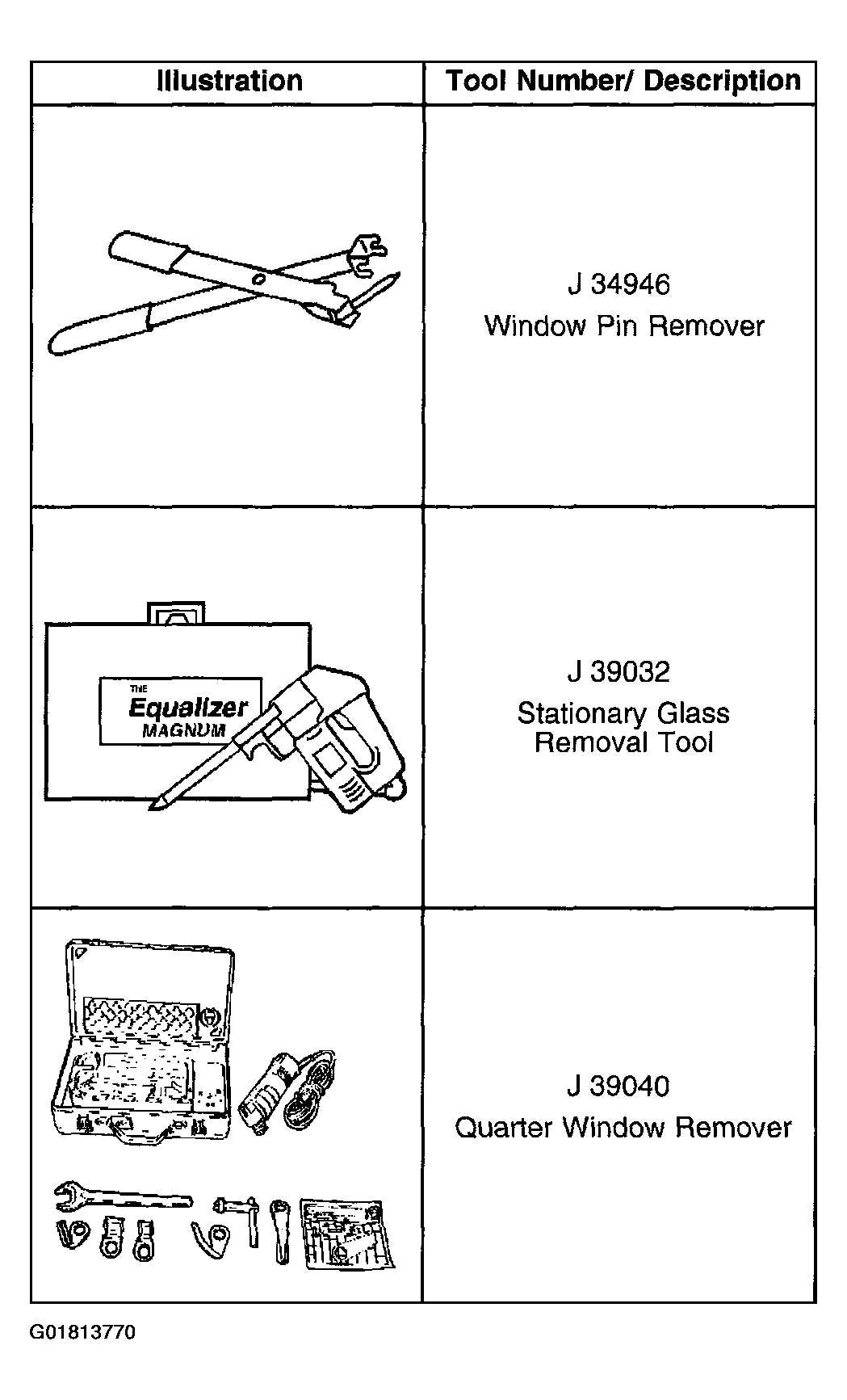

Fig 1: Special Tools And Equipment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

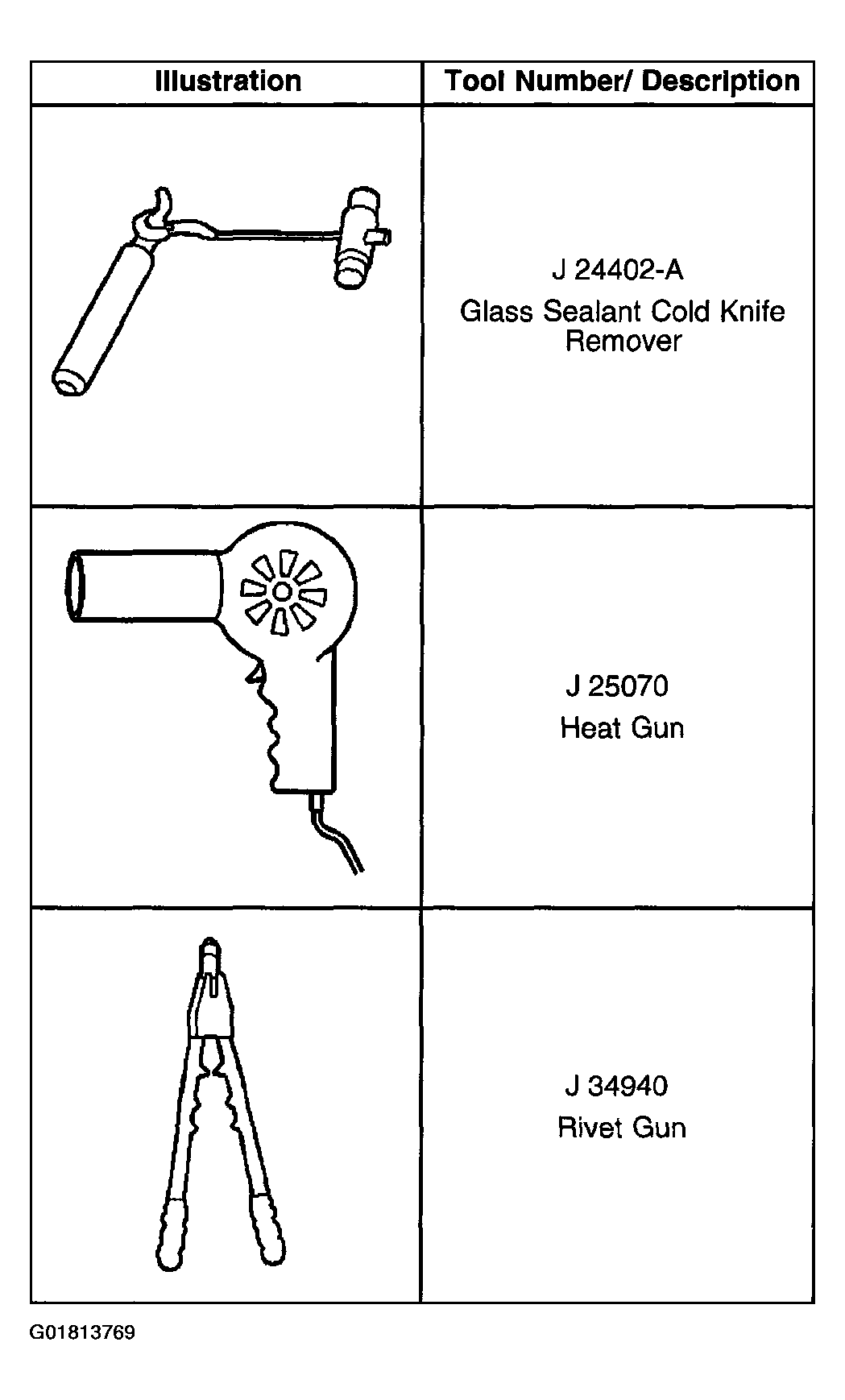

Fig 2: Special Tools And Equipment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
