Home >> Chevrolet >> 2002 >> Venture Plus >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Weatherstrip Replacement - Sliding Door Window >> Removal Procedure

Removal Procedure

  1. Remove the sliding door swing out window. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  2. Pull the sliding door window weatherstrip from the pinch-weld flange.
  3. Remove the sliding door window weatherstrip from the sliding door.

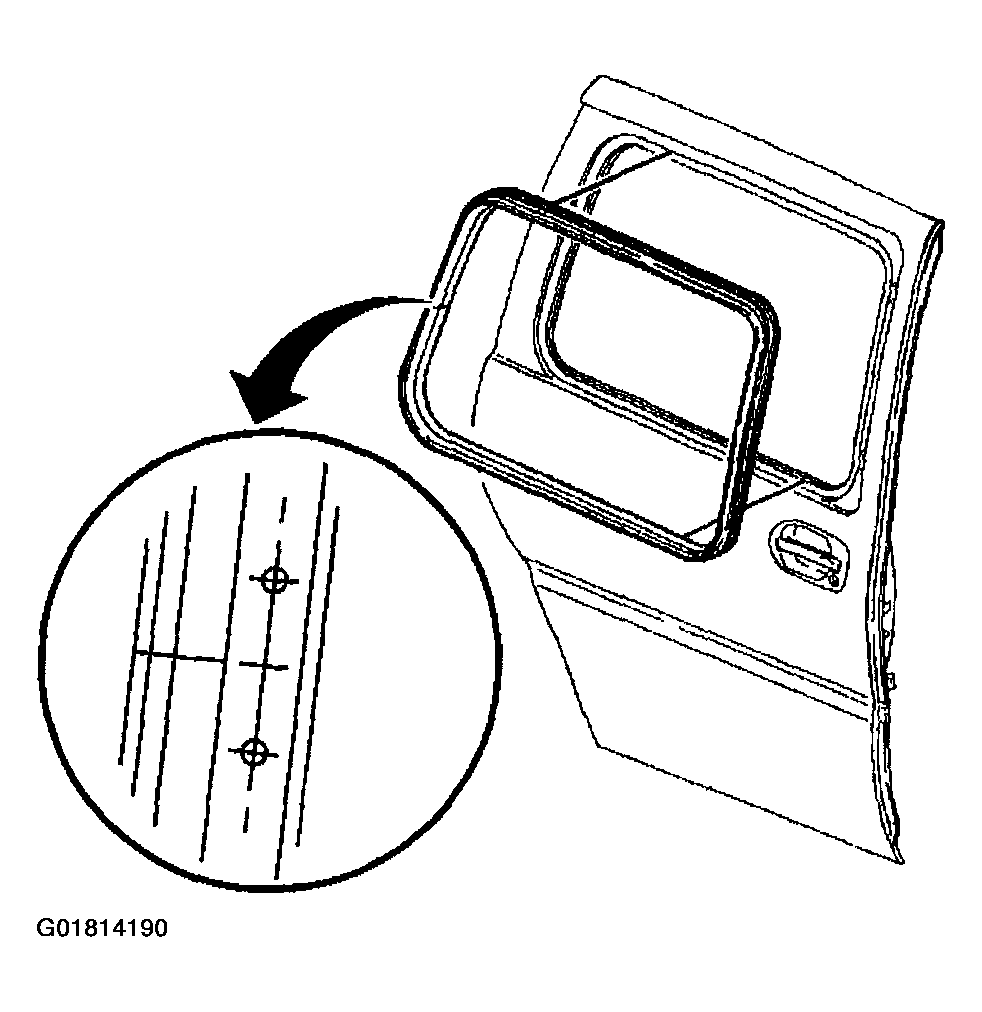

    Fig 1: Removing Sliding Door Window Weatherstrip From Sliding Door
    G01814190Courtesy of GENERAL MOTORS CORP.
