Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Route the front door electrical harness through the front door water deflector.
  3. Remove the front door water deflector from the front inner door.

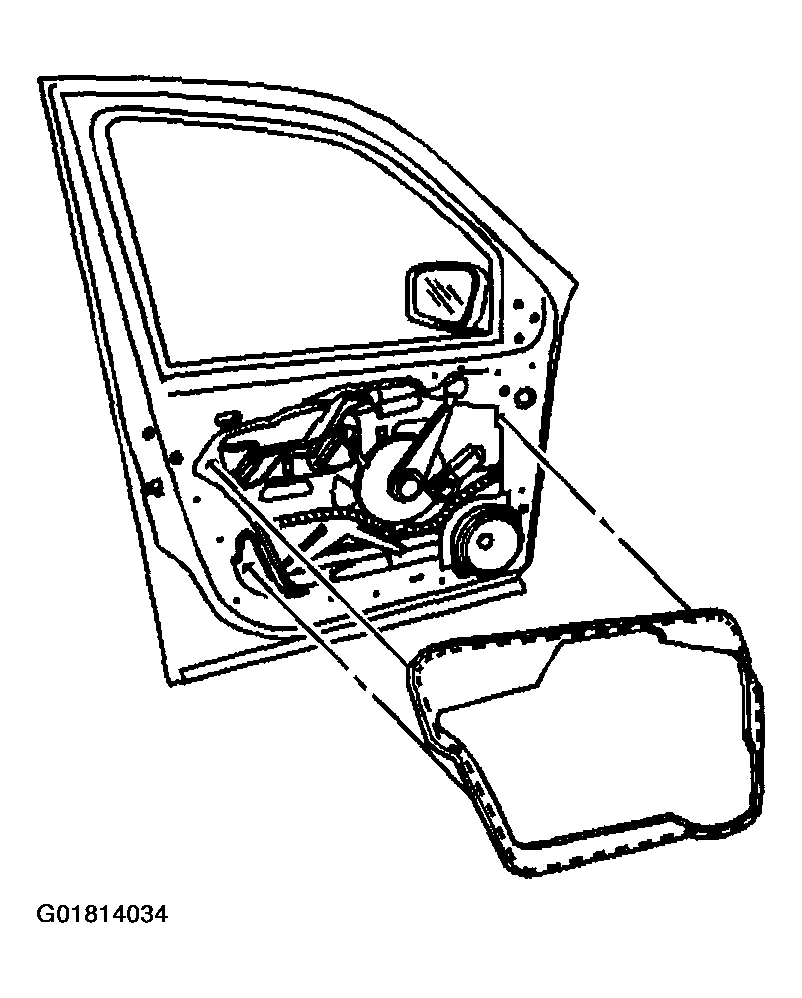

    Fig 1: Removing Front Door Water Deflector
    G01814034Courtesy of GENERAL MOTORS CORP.
