Removal Procedure

  1. Open the door.
  2. Remove the front door trim plate. Refer to Door Trim Plate Replacement .
  3. Remove the front door manual window regulator handle if equipped. Refer to Window Regulator Handle Replacement - Door .
  4. Remove the armrest screws.
  5. Route the electrical harness through the front door trim panel opening.
  6. Use J 38778  in order to remove the front door trim panel from the door.
  7. Use J 38778  in order to pry the front door trim panel from the door frame at the window seal.
  8. Remove the front door trim panel from the door.

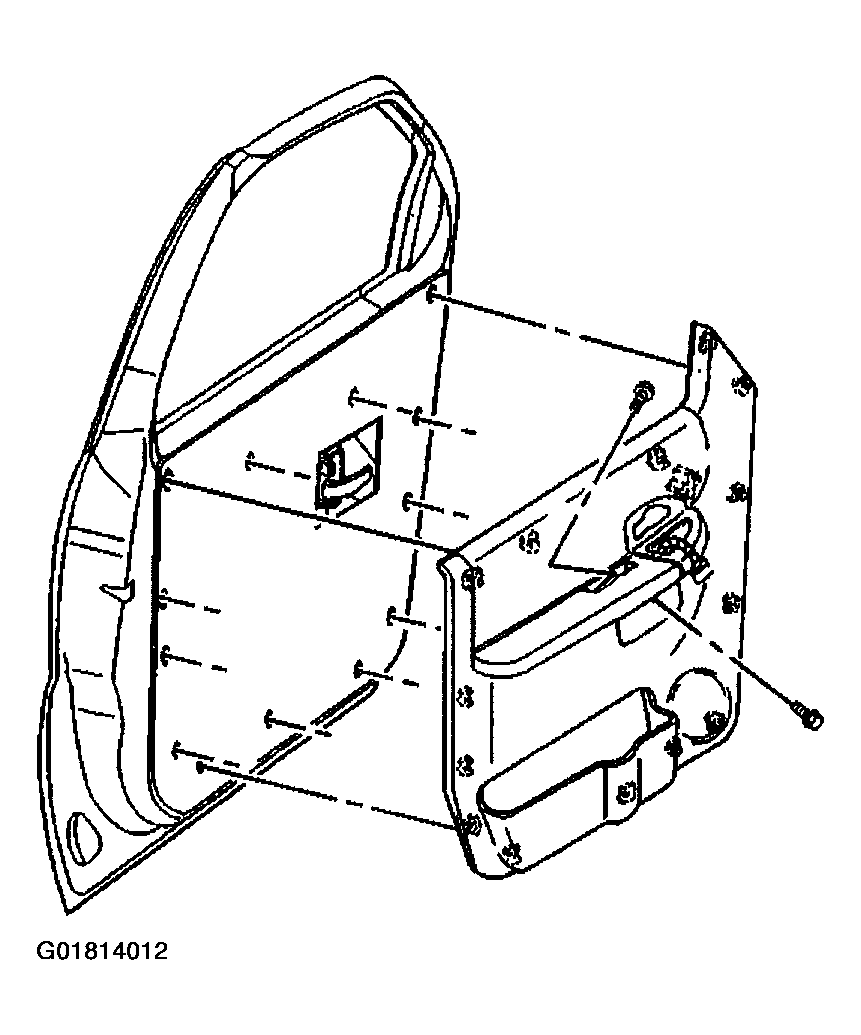

    Fig 1: Removing Front Door Trim Panel
    G01814012Courtesy of GENERAL MOTORS CORP.
