Removal Procedure

  1. Remove the front edges of the sliding door inner trim panel in order to gain access to the sliding door lower roller bracket bolts.
  2. Mark the location of the sliding door lower roller bracket to the sliding door with a grease pencil.
  3. Support the sliding door.
  4. Remove the sliding door catch with the reinforcement channel bolt at the sliding door lower track.

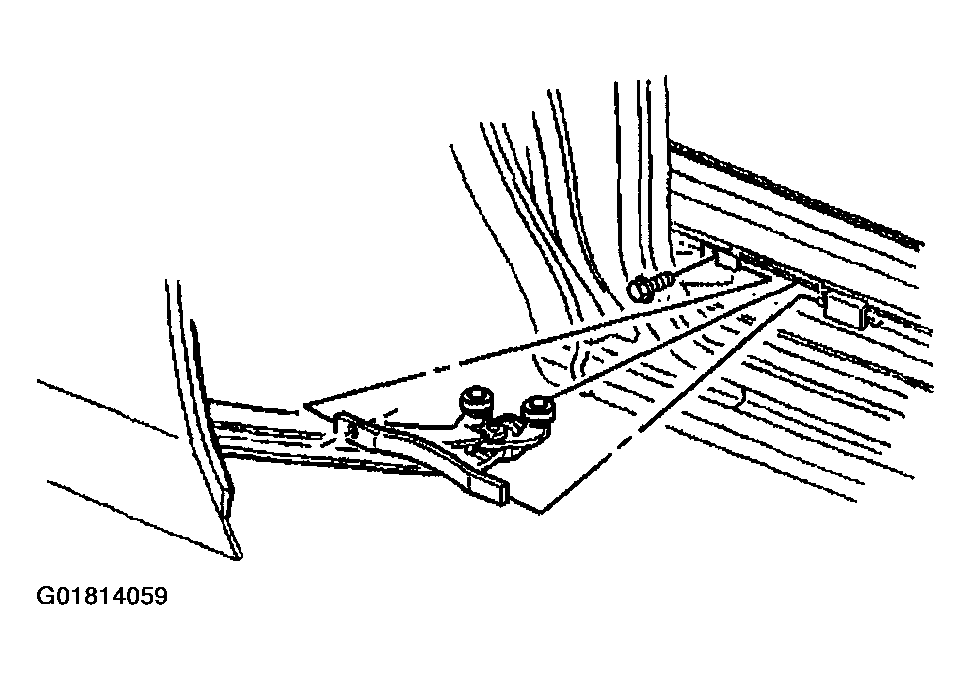

    Fig 1: Removing Sliding Door Lower Roller Bracket & Bolts
    G01814059Courtesy of GENERAL MOTORS CORP.
  5. Remove the sliding door lower roller bracket bolts.
  6. Remove the sliding door lower roller bracket from the lower track.

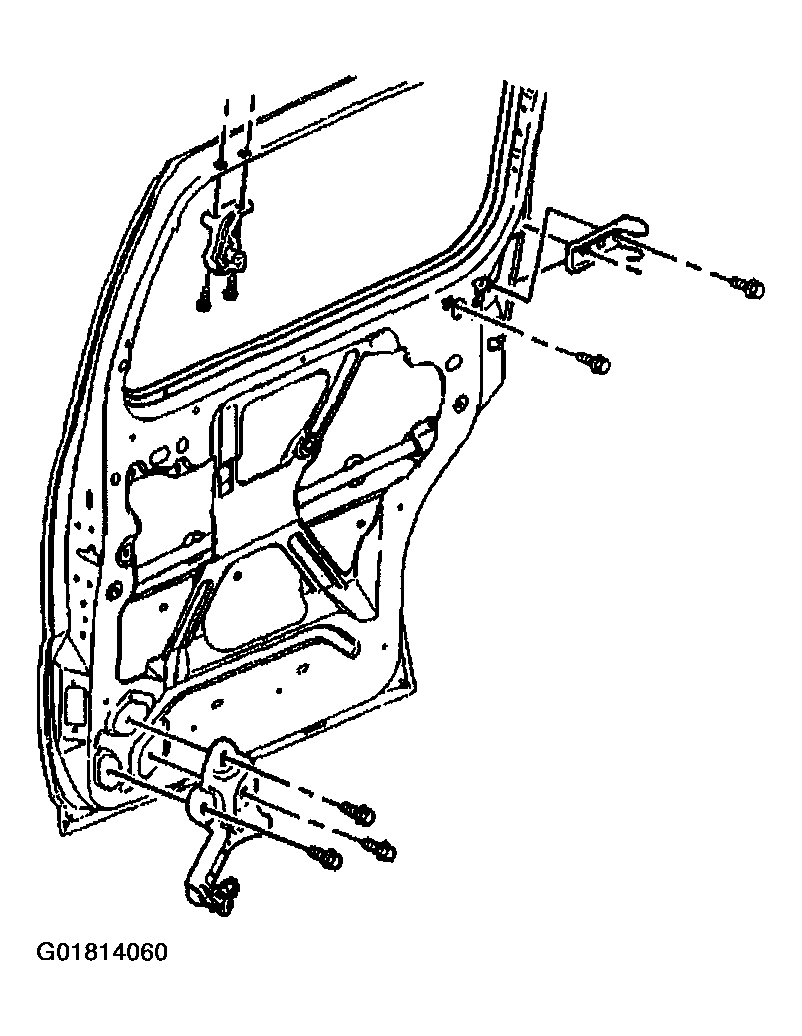

    Fig 2: Removing Sliding Door Lower Roller Bracket From Lower Track
    G01814060Courtesy of GENERAL MOTORS CORP.
