Removal Procedure

  1. Turn off the PSD from the roof console switch bank.
  2. Remove the PSD OPEN/CLOSE switch from the center pillar.
  3. Disconnect the electrical connector from the PSD OPEN/CLOSE switch.

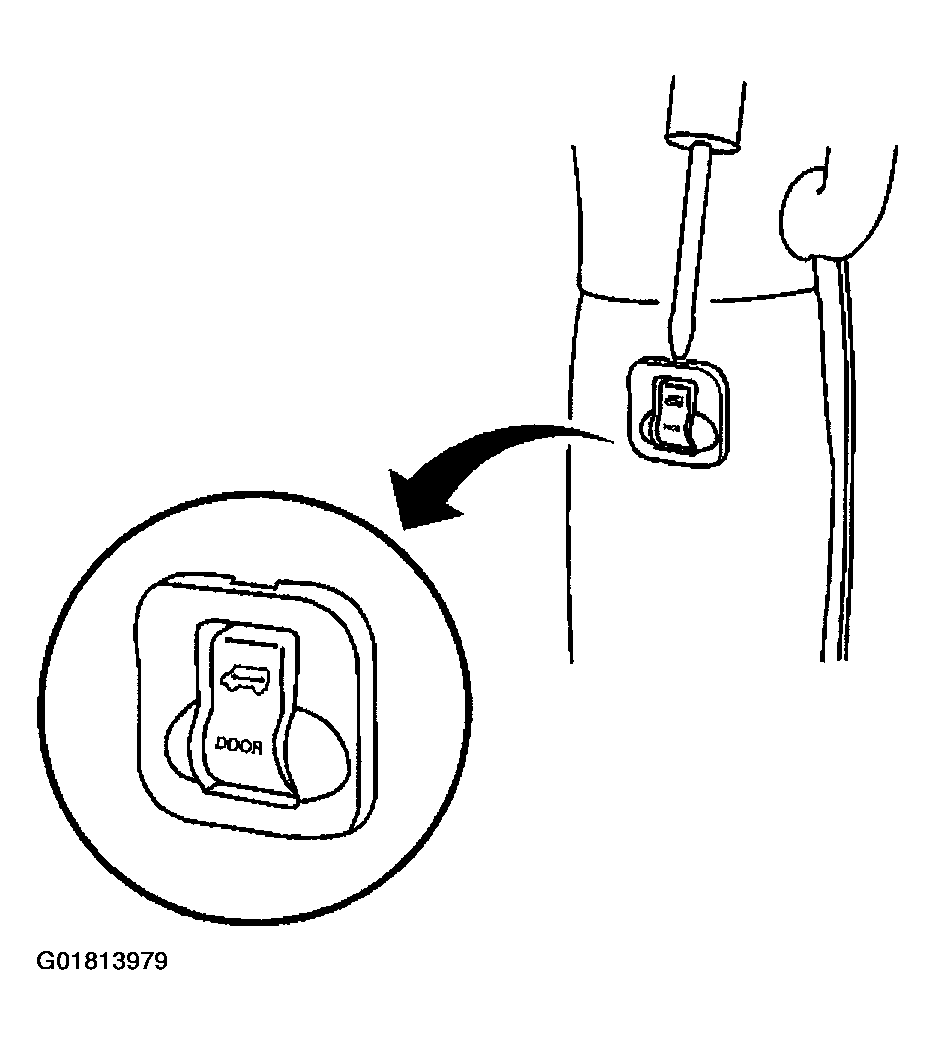

    Fig 1: Removing PSD OPEN/CLOSE Switch From Center Pillar
    G01813979Courtesy of GENERAL MOTORS CORP.
