Removal Procedure

  1. Remove the sliding door inner trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the sliding door water deflector. Refer to Water Deflector Replacement - Sliding Door .
  3. Remove the sliding door latch screws.
  4. When the sliding door latch is loose, unhook the latch/lock rod form the sliding door latch.
  5. Remove the sliding door latch from the sliding door.

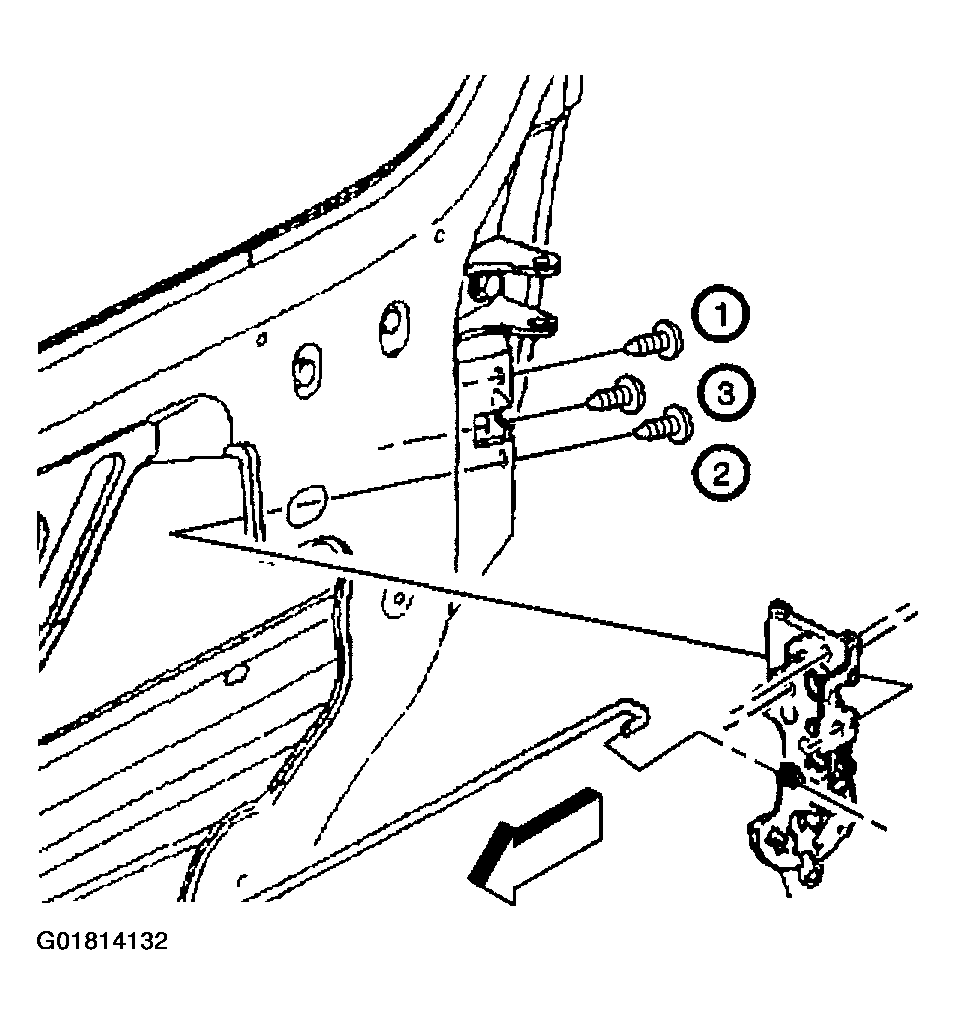

    Fig 1: Removing Sliding Door Latch & Screws
    G01814132Courtesy of GENERAL MOTORS CORP.
