Removal Procedure

  1. Use J 42506  in order to remove the door inside handle clip
  2. Remove the sliding door inside handle from the door.

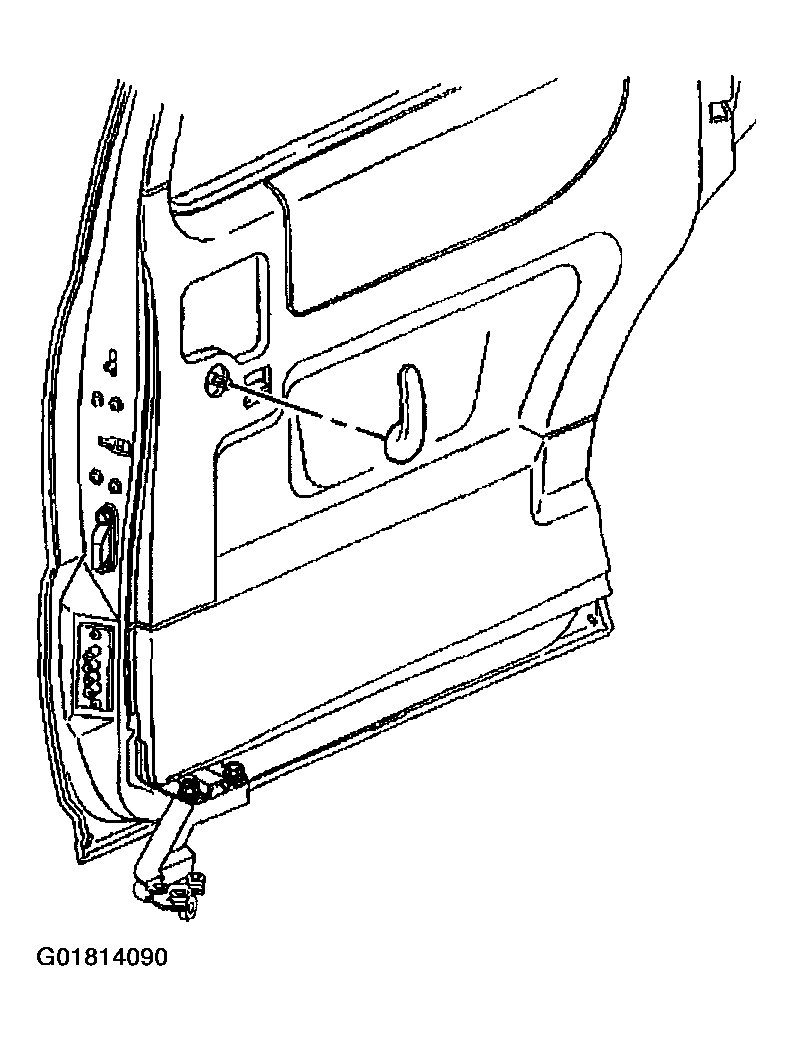

    Fig 1: Removing Sliding Door Inside Handle From Door
    G01814090Courtesy of GENERAL MOTORS CORP.
