Removal Procedure

Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the front door inside handle spring from the retainer clip.

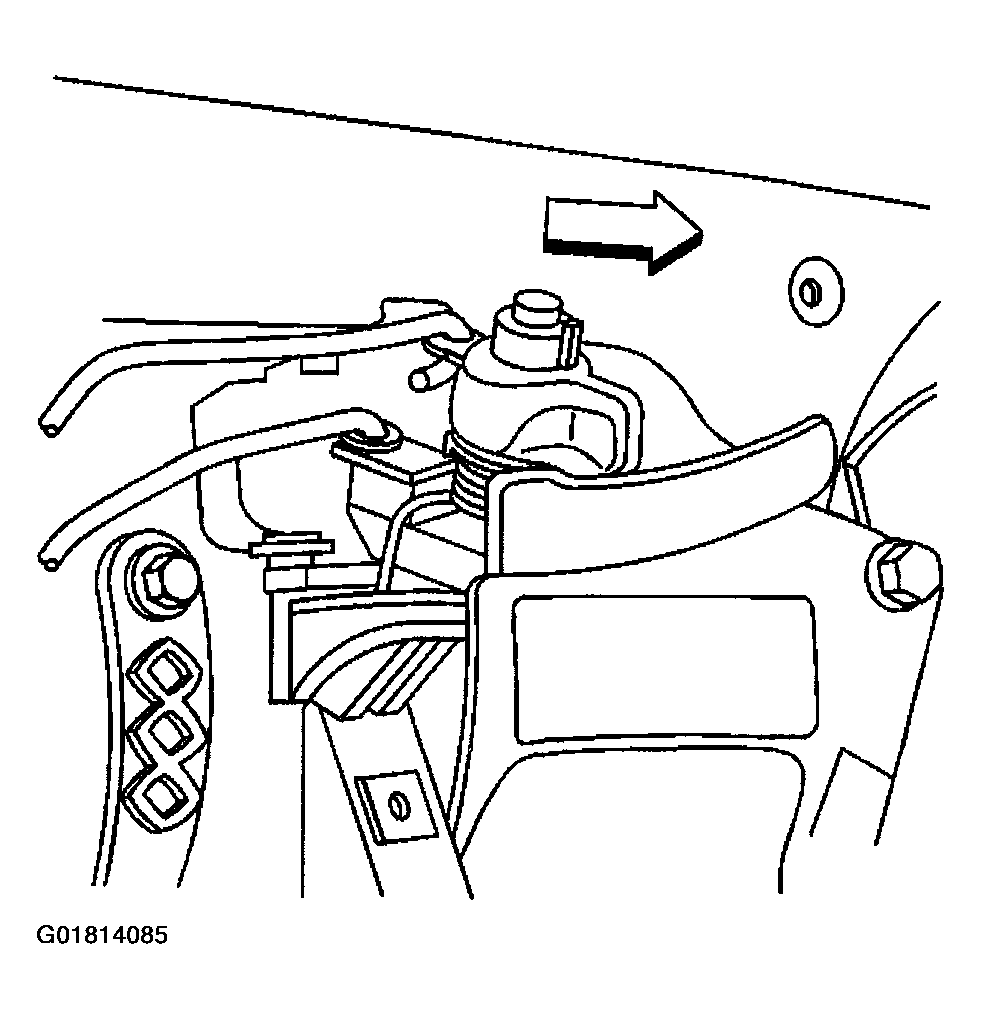

Fig 1: Removing Front Door Inside Handle Spring From Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Using a small flat-bladed tool, remove the front door inside handle from the lock module.

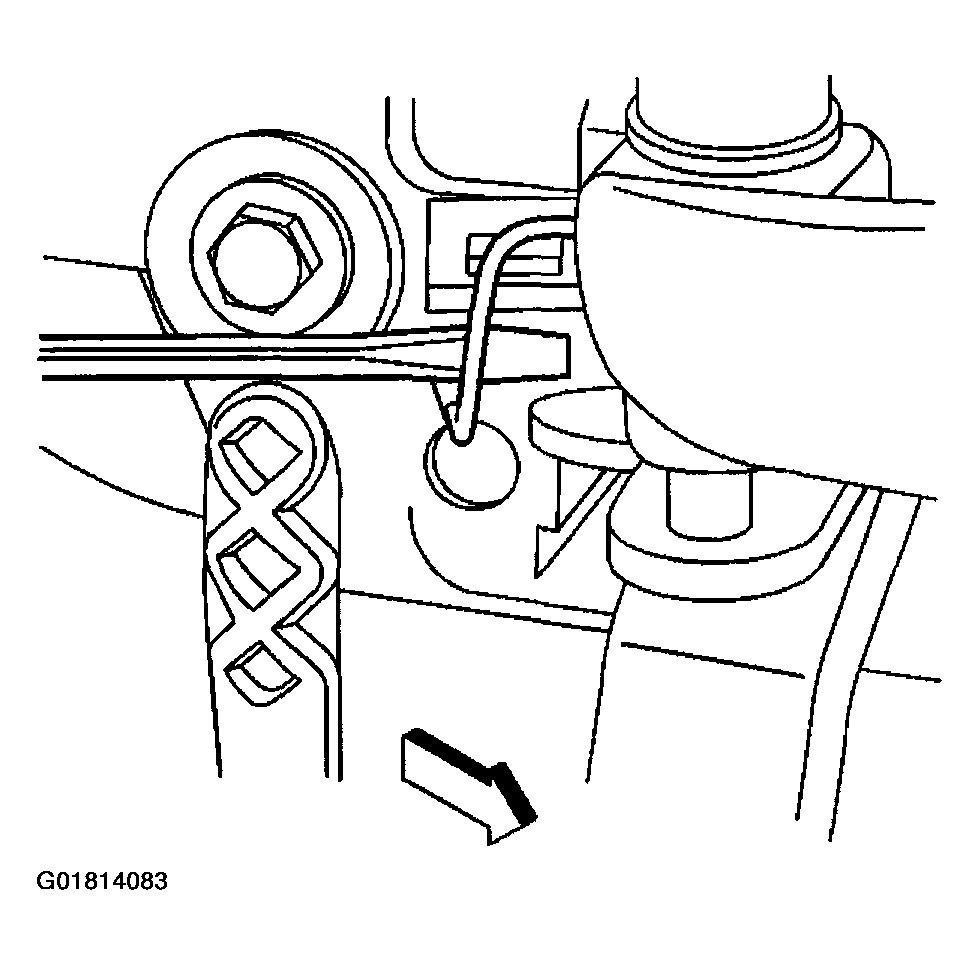

Fig 2: Removing Front Door Inside Handle From Lock Module
Courtesy of GENERAL MOTORS CORP.
Pull back on the door inside handle assembly.

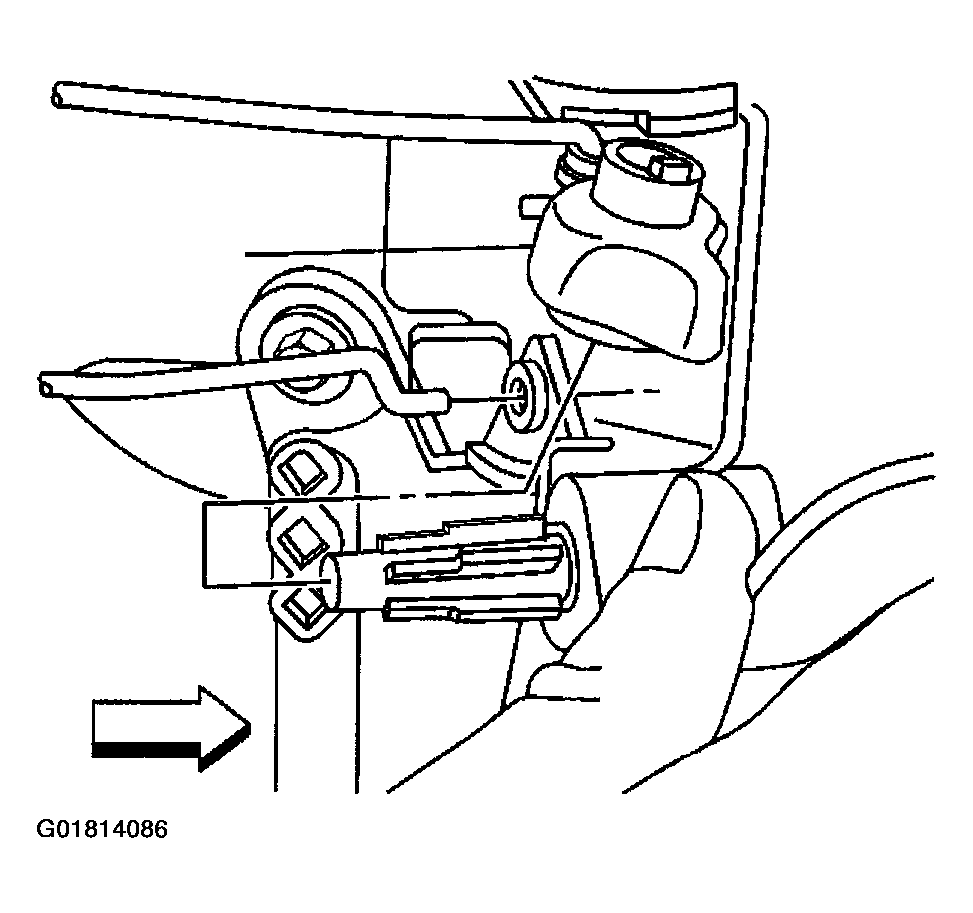

Fig 3: Removing Door Inside Handle Assembly
Courtesy of GENERAL MOTORS CORP.
Separate the upper and lower portions from each other. Slide the upper and lower portions off the lock rods.

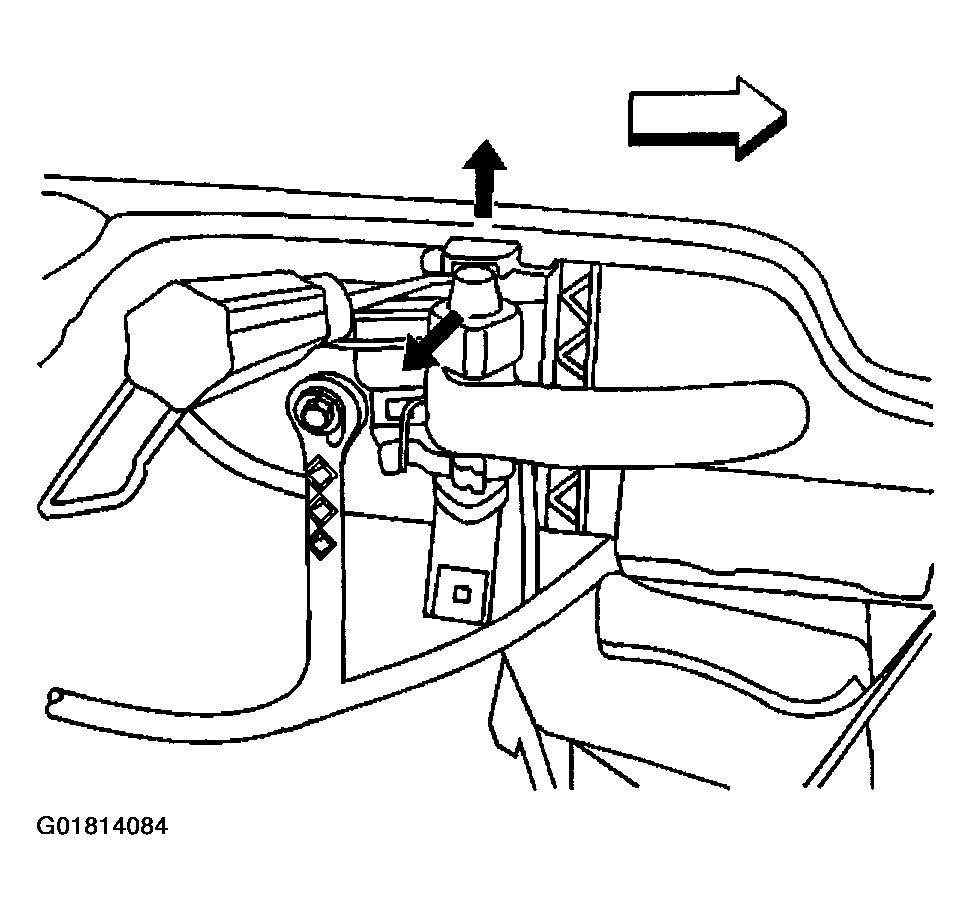

Fig 4: Separating Upper & Lower Portions
Courtesy of GENERAL MOTORS CORP.
