Keyless Entry Schematics

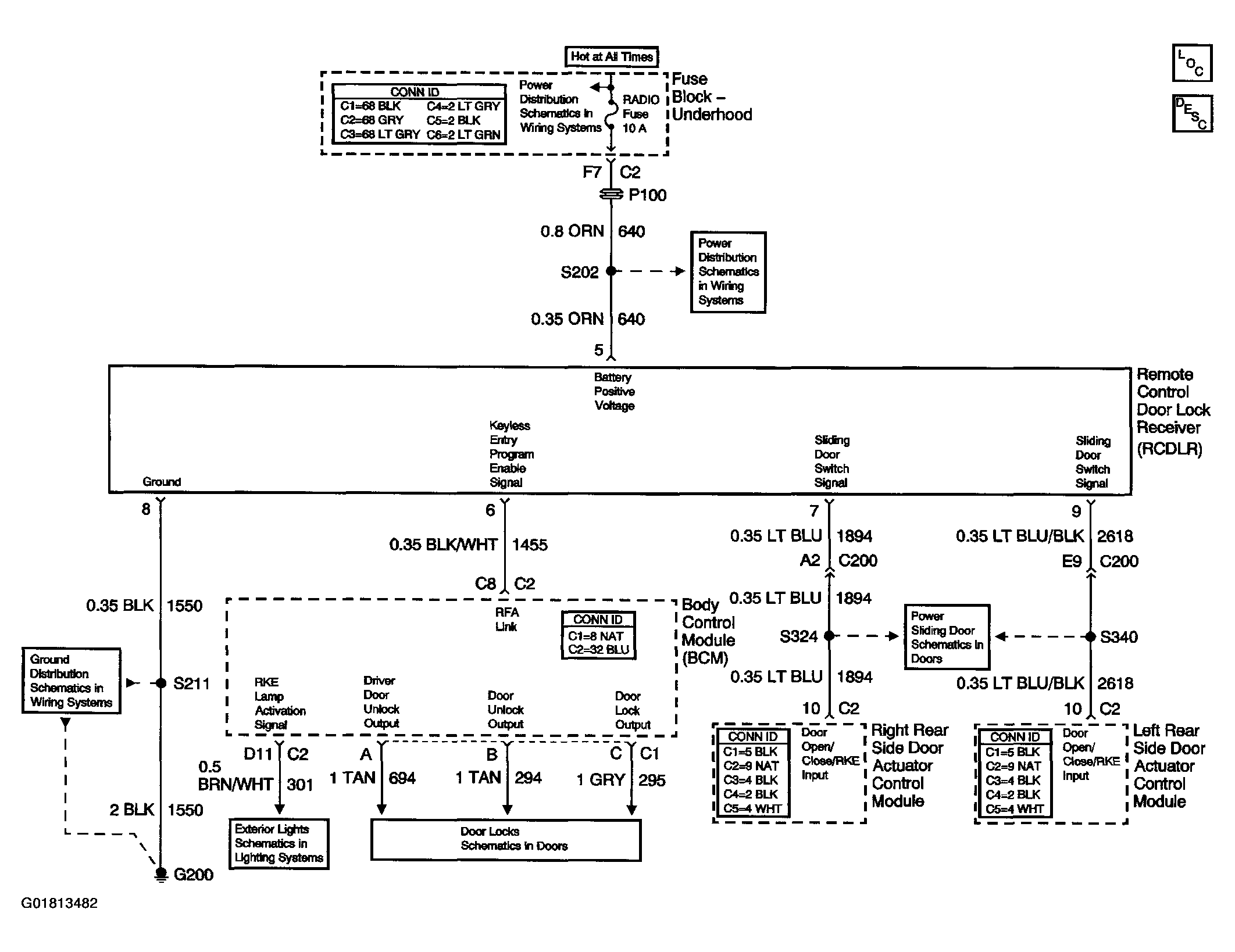

Fig 1: Keyless Entry Schematics

G01813482

Courtesy of GENERAL MOTORS CORP.
