Installation Procedure

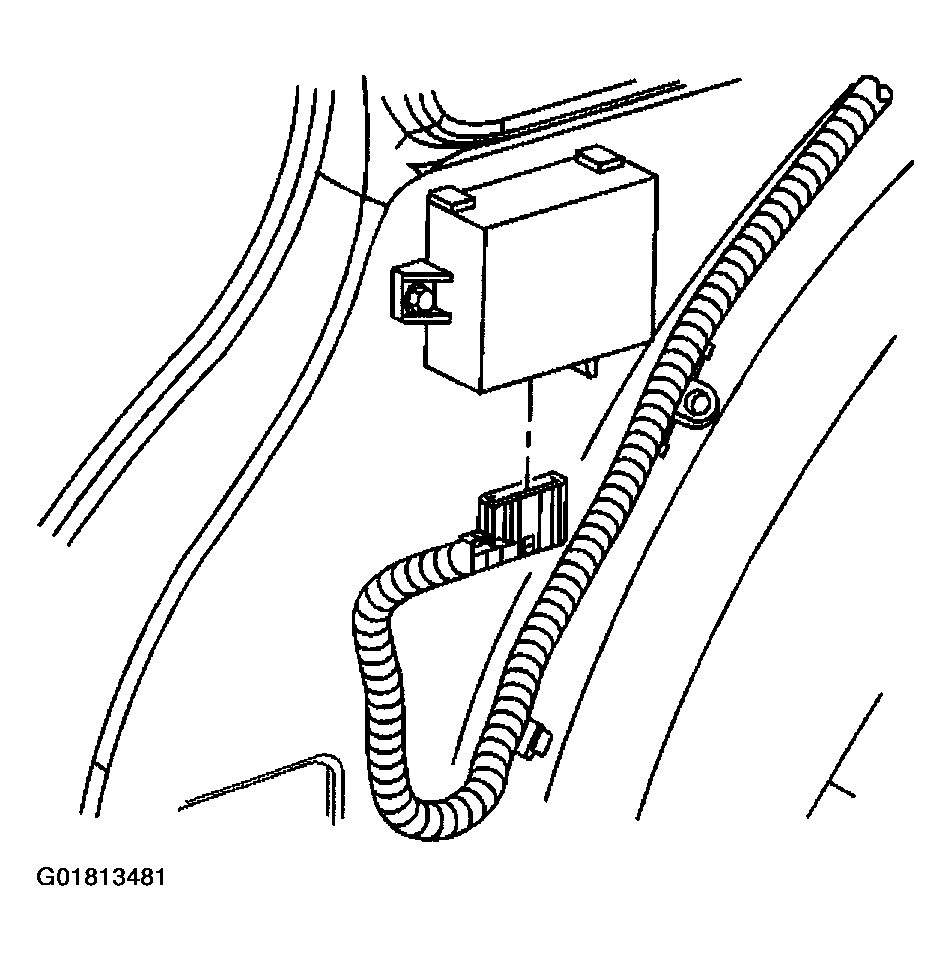

Fig 1: Connecting Electrical Connector To Rear Object Detection Module
G01813481Courtesy of GENERAL MOTORS CORP.
  1. Align the rear object detection module to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear object detection module mounting bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the electrical connector to the rear object detection module and press in locking tab.
  4. Install the rear compartment side trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
