Removal & Installation

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove radiator support cover. Remove Connector Position Assurance (CPA) clip and disconnect front end discriminating sensor harness connector. See Fig 1. Remove front end discriminating sensor bolts. Remove front end discriminating sensor.
  3. To install, reverse removal procedure. Tighten front end discriminating sensor bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

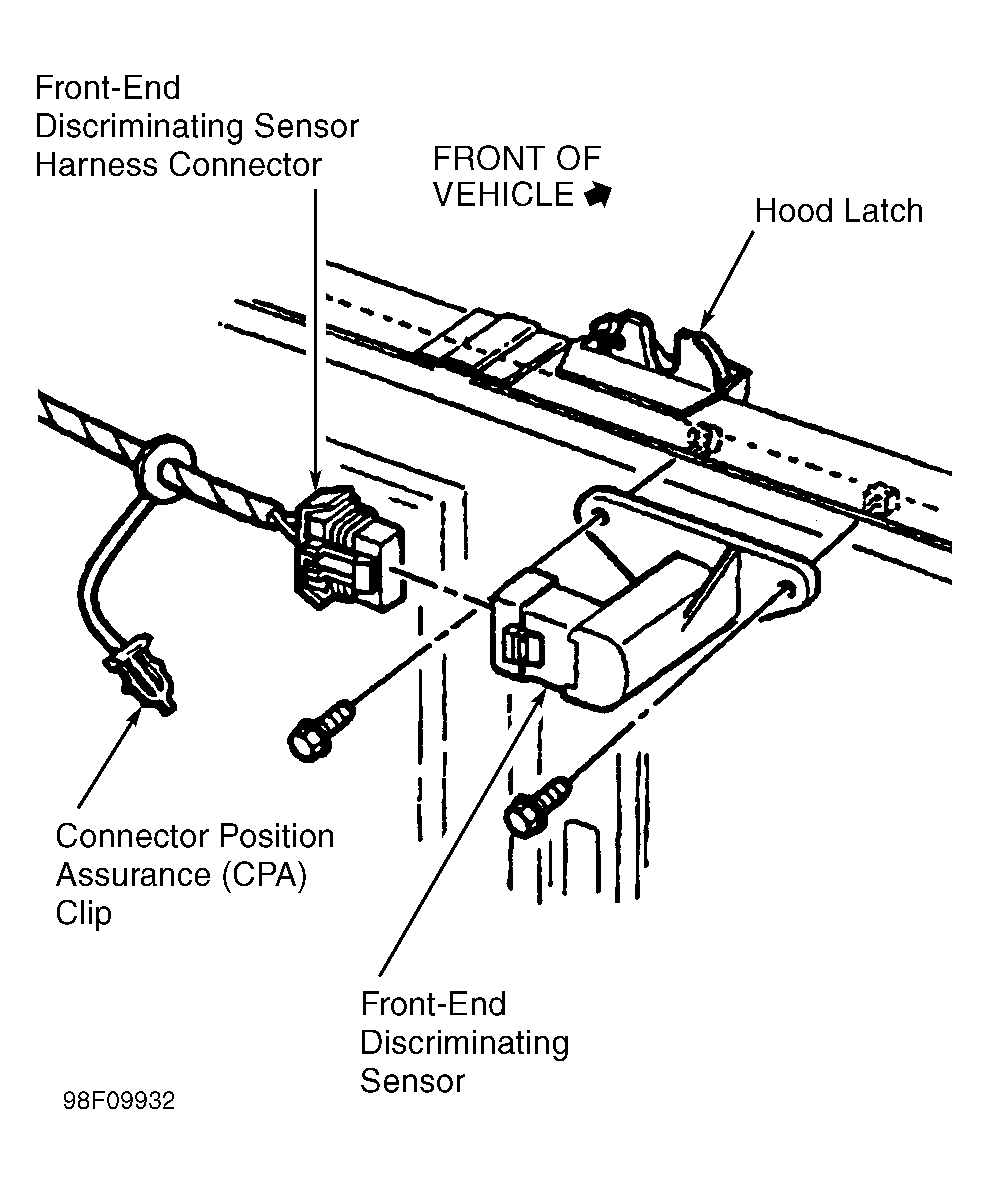

Fig 1: Identifying Front End Discriminating Sensor
G98F09932Courtesy of GENERAL MOTORS CORP.
