Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
  2. Remove the wiring harness assembly from the fluid temperature sensor (391).
  3. Remove the fluid temperature sensor (391).

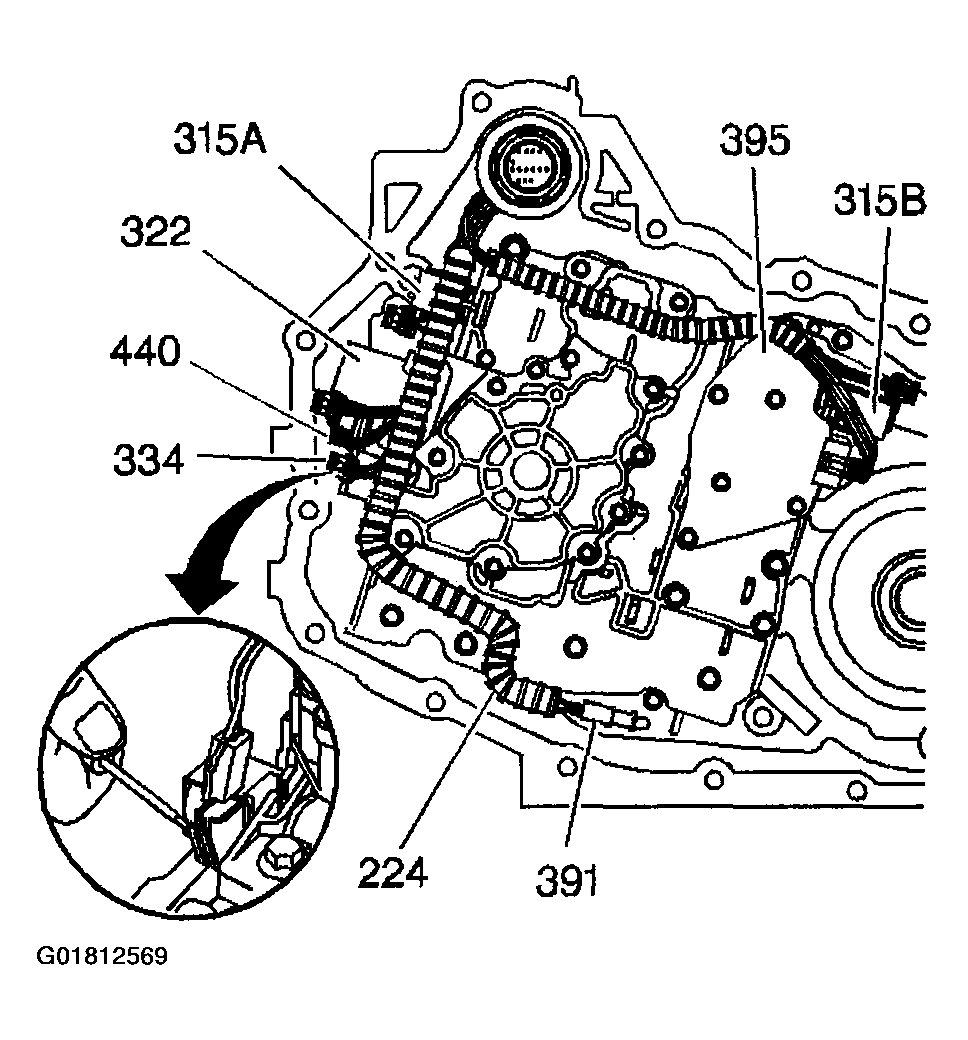

    Fig 1: Removing Fluid Temperature Sensor
    G01812569Courtesy of GENERAL MOTORS CORP.
