Removal Procedure

  1. Remove the front door opening sill plates. Refer to DOOR SILL PLATE REPLACEMENT (DOOR) or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR) .
  2. Pull the front door opening weatherstrip from the front door pinch-weld flange.
  3. Clean all adhesive from the pinch-weld flange.

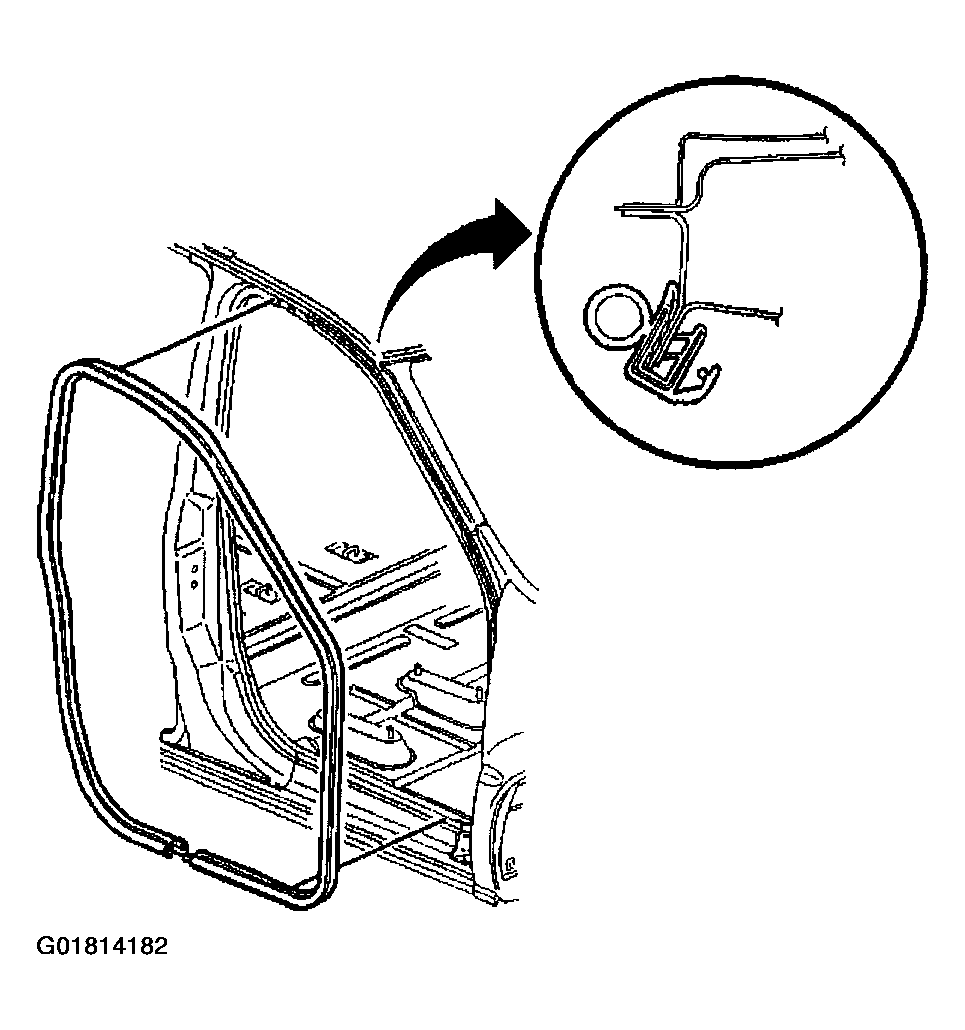

    Fig 1: Removing Front Door Opening Weatherstrip
    G01814182Courtesy of GENERAL MOTORS CORP.
