Removal Procedure

  1. Remove the sliding door inner trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the sliding door water deflector from the sliding inner door.

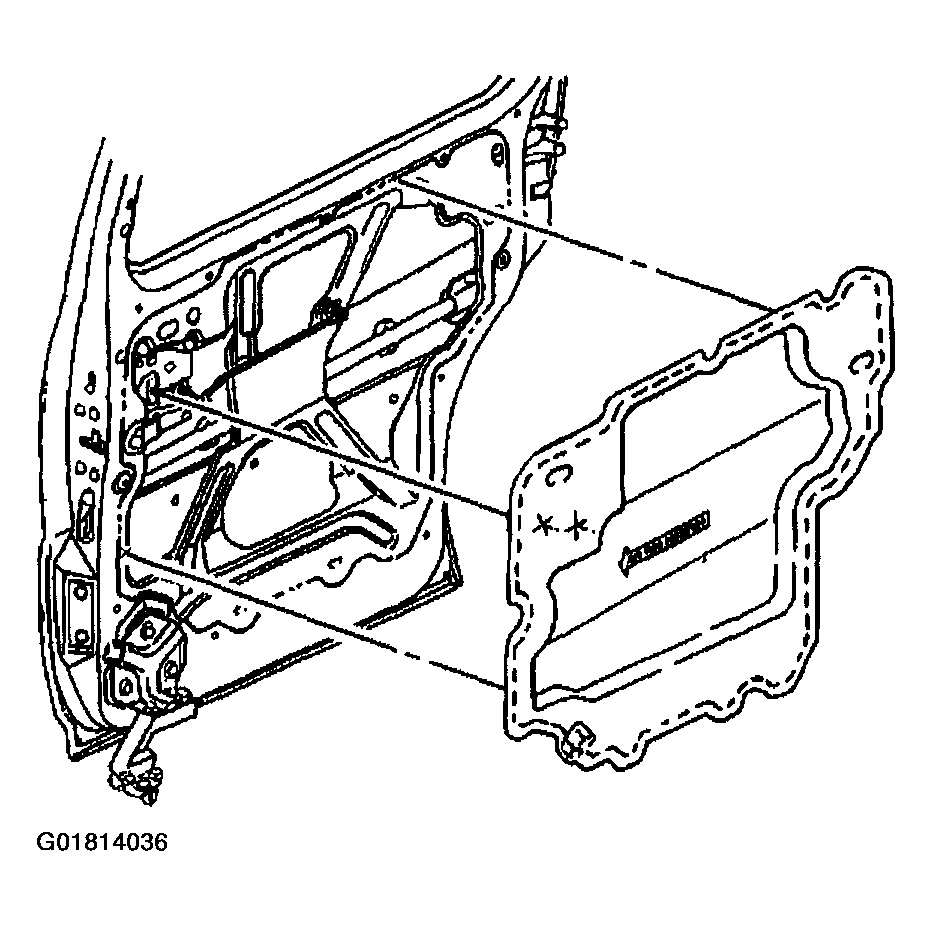

    Fig 1: Removing Sliding Door Water Deflector
    G01814036Courtesy of GENERAL MOTORS CORP.
