Removal Procedure

  1. Remove the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR .
  2. Remove the headliner trim finish molding. Refer to HEADLINING TRIM FINISH MOLDING REPLACEMENT .
  3. Support the sliding door.
  4. Mark the location of the sliding door upper roller bracket to the door with a grease pencil.
  5. Remove the sliding door upper roller bracket bolts.
  6. Remove the sliding door upper roller bracket from the front edge of the upper track.

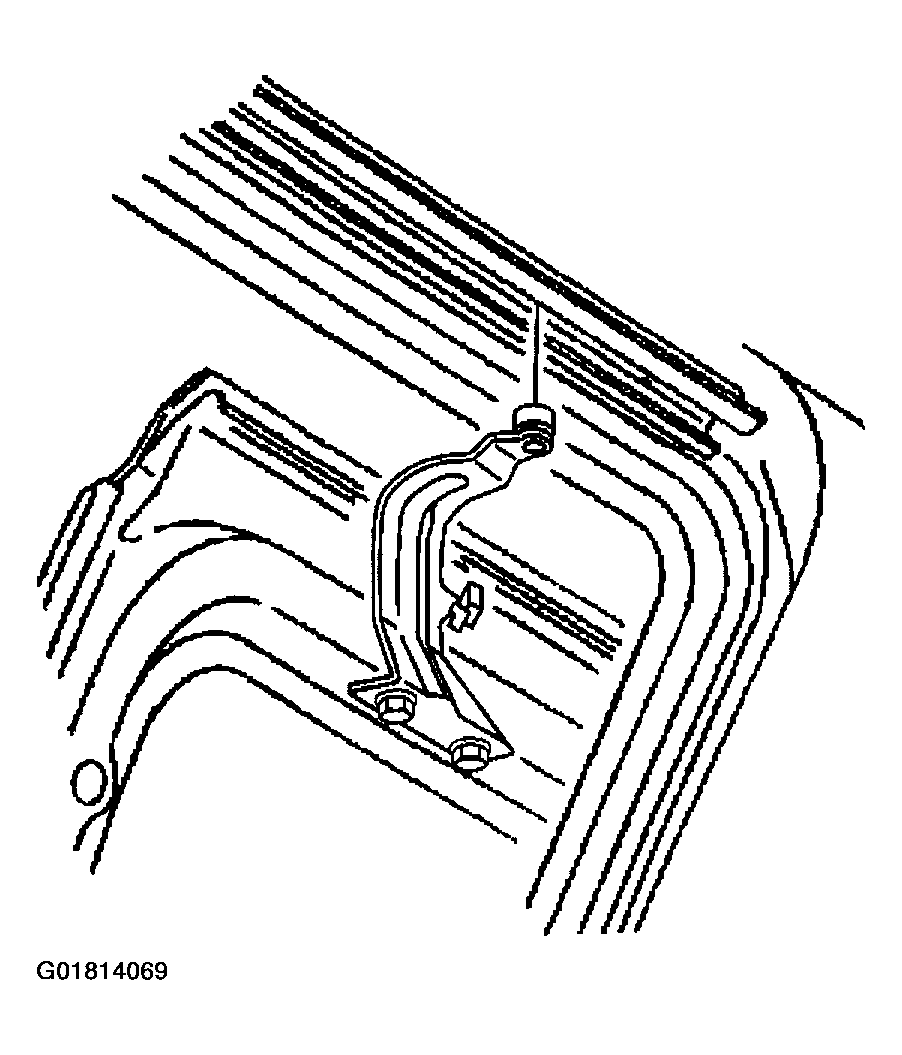

    Fig 1: Removing Sliding Door Upper Roller Bracket & Bolts
    G01814069Courtesy of GENERAL MOTORS CORP.
