Installation Procedure

  1. Using J 39245  , press the ABS reluctor ring (2) onto the wheel hub.

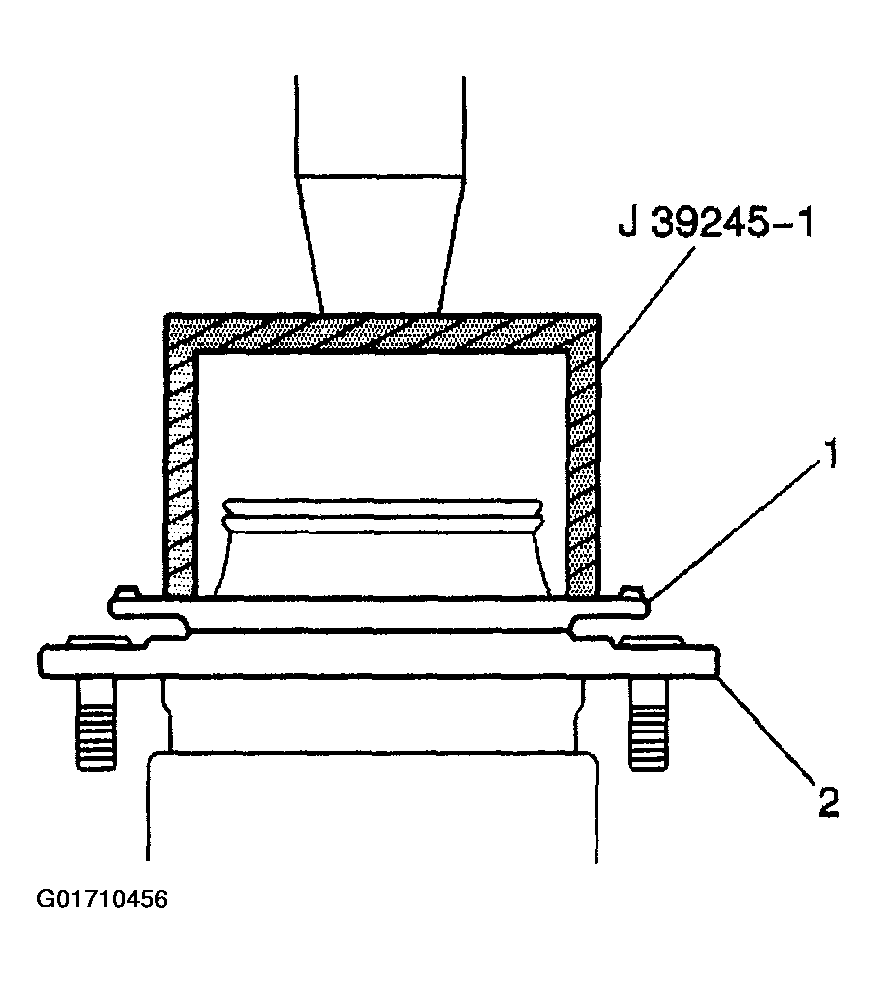

    2. Fig 1: Pressing On ABS Reluctor Ring
    G01710456Courtesy of GENERAL MOTORS CORP.
  2. Install the Front Wheel Hub. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT (4WD) or WHEEL HUB, BEARING, AND SEAL REPLACEMENT (2WD) in Front Suspension.
  3. Perform Diagnostic System Check - ABS .
