Removal Procedure

  1. Raise and support the vehicle on a suitable hoist. Refer to LIFTING & JACKING THE VEHICLE .
  2. Disconnect the front wheel speed sensor electrical connector.
  3. Remove the retaining bolt (3).
  4. Remove the front wheel speed sensor (1) from the steering knuckle (2).

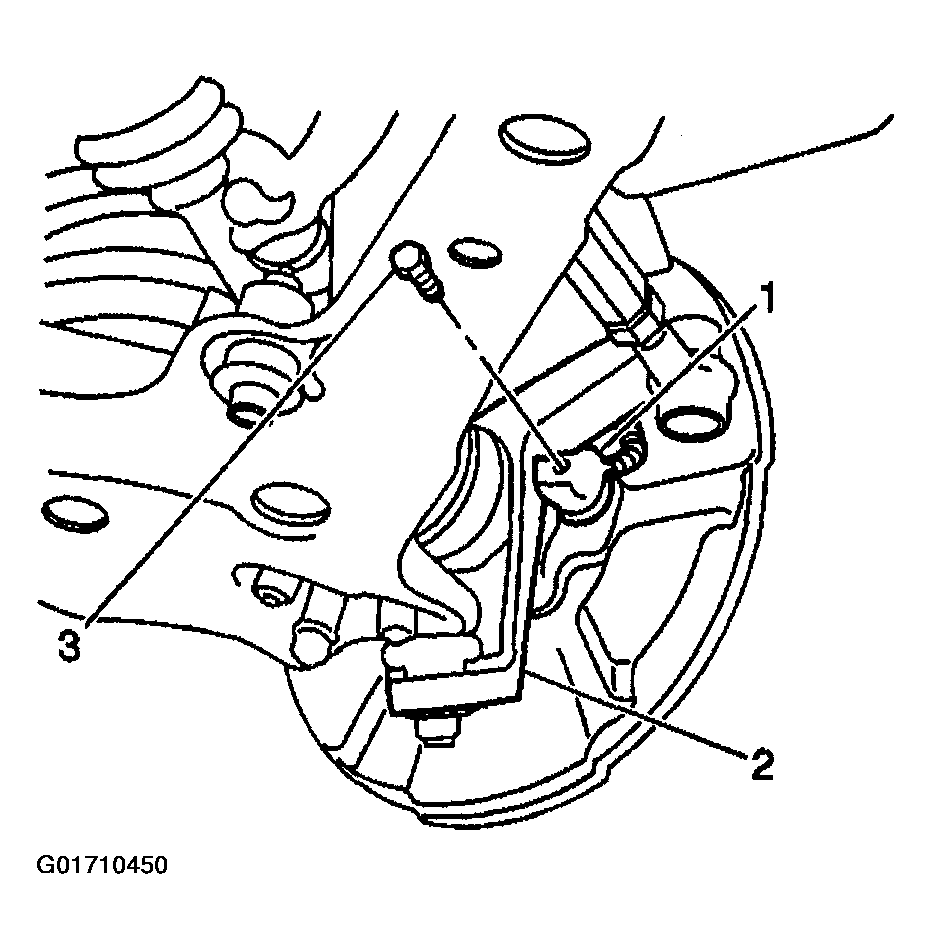

    Fig 1: Removing Front Wheel Speed Sensor From Steering Knuckle
    G01710450Courtesy of GENERAL MOTORS CORP.
  5. Remove the front wheel speed sensor, sensor harness (2), and harness bracket (1) from the vehicle.

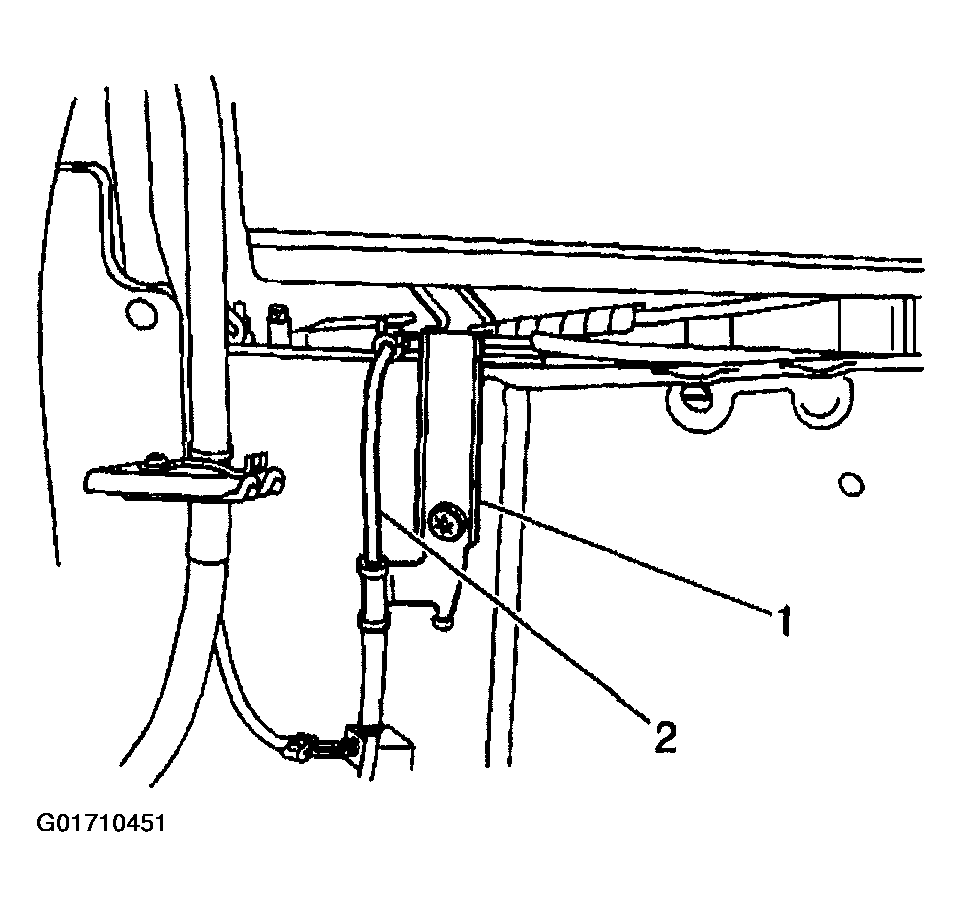

    Fig 2: Removing Front Wheel Speed Sensor From Vehicle
    G01710451Courtesy of GENERAL MOTORS CORP.
