Steering Column Disassembled View (Standard Column)

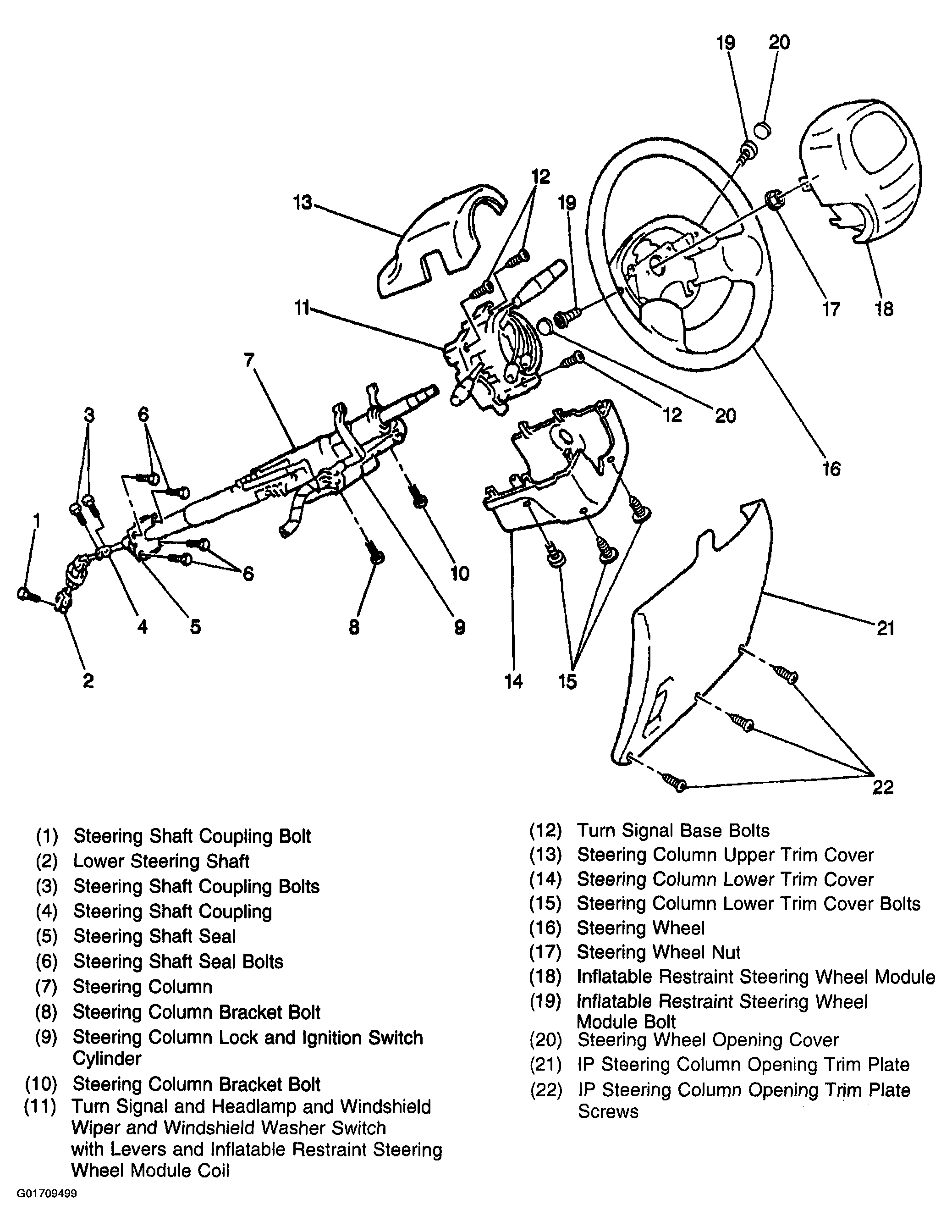

Fig 1: Exploded View Of Steering Wheel & Column (Standard Column)

G01709499

Courtesy of GENERAL MOTORS CORP.
