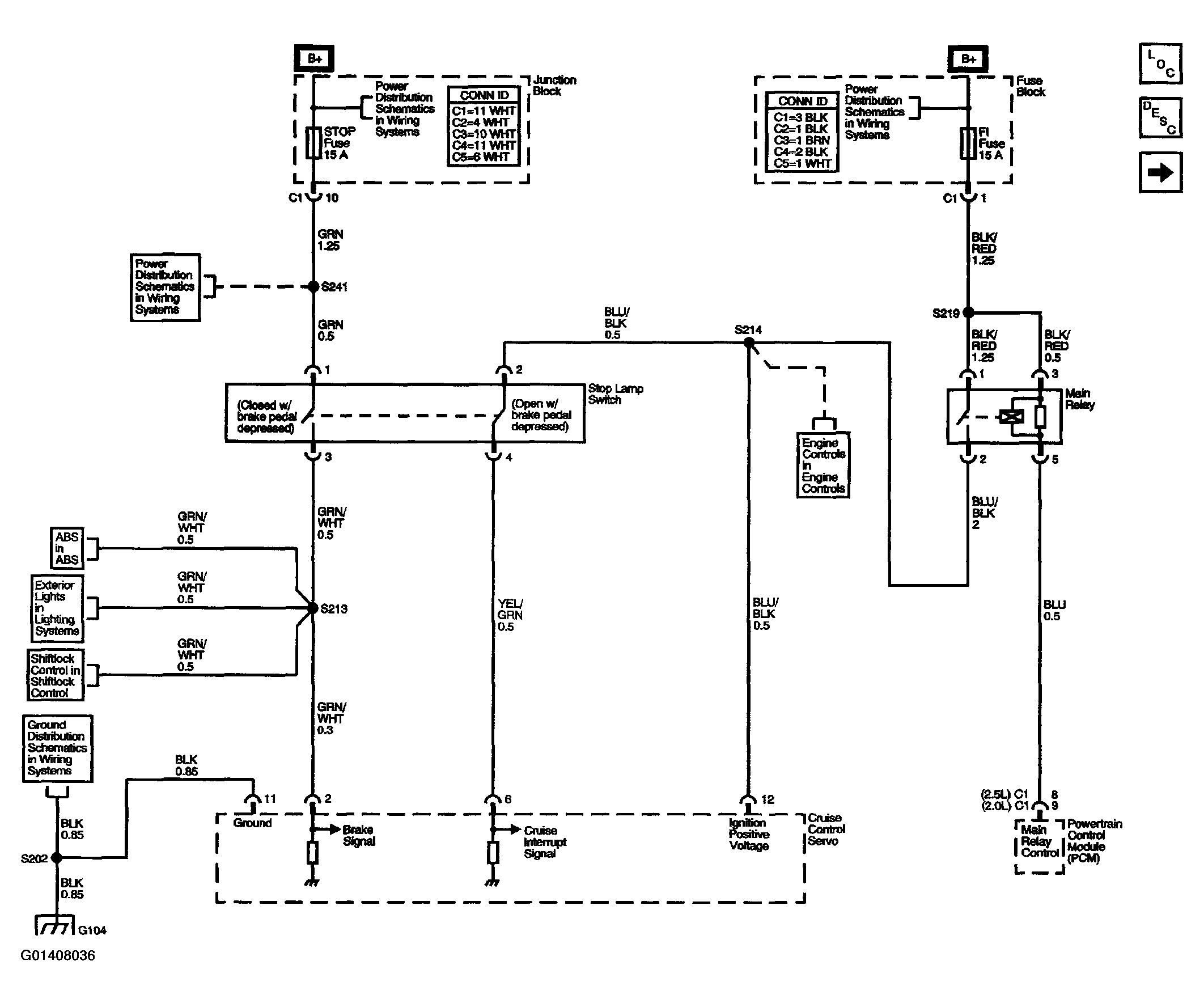

Cruise Control Schematics (Stop Lamp Switch, Cruise Control Servo): Notes

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
