Lock System Does Not Unlock

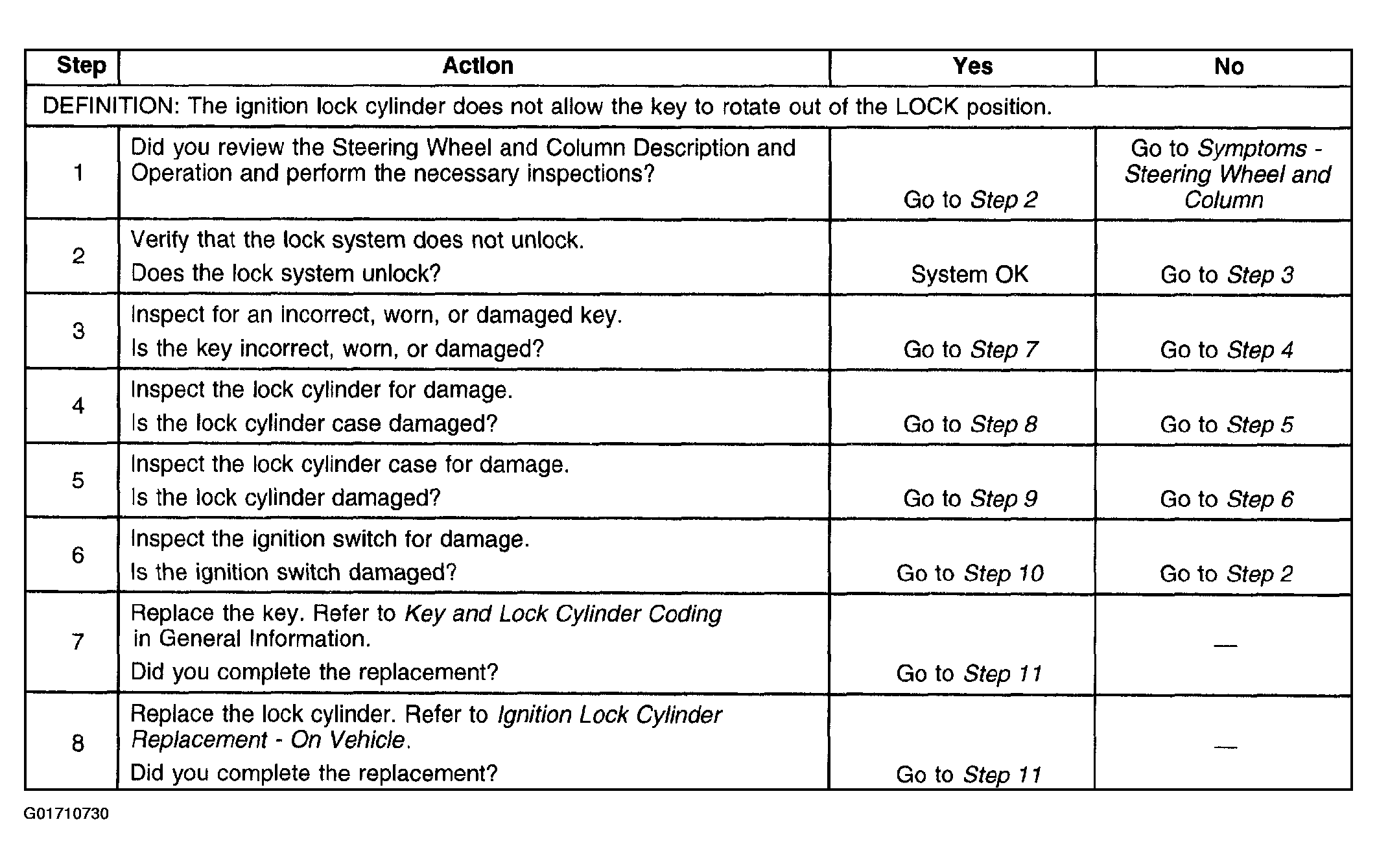

Fig 1: Lock System Does Not Unlock (1 Of 2)

G01710730

Courtesy of GENERAL MOTORS CORP.

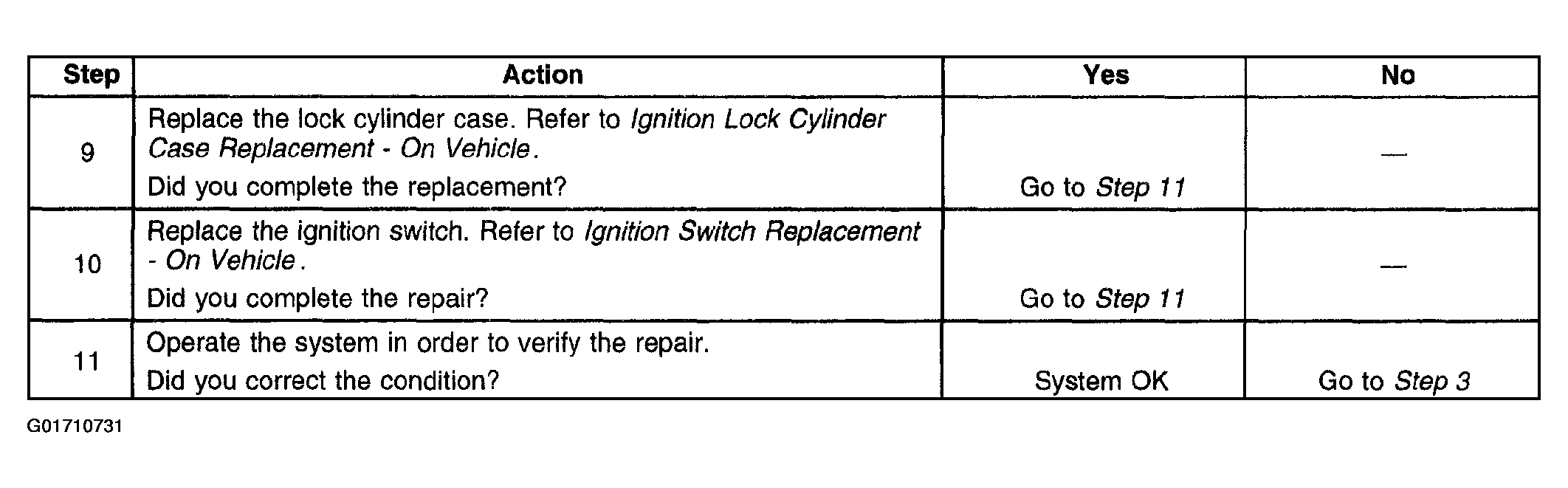

Fig 2: Lock System Does Not Unlock (2 Of 2)

G01710731

Courtesy of GENERAL MOTORS CORP.
