Steering Column Disassembled View (Tilt Column)

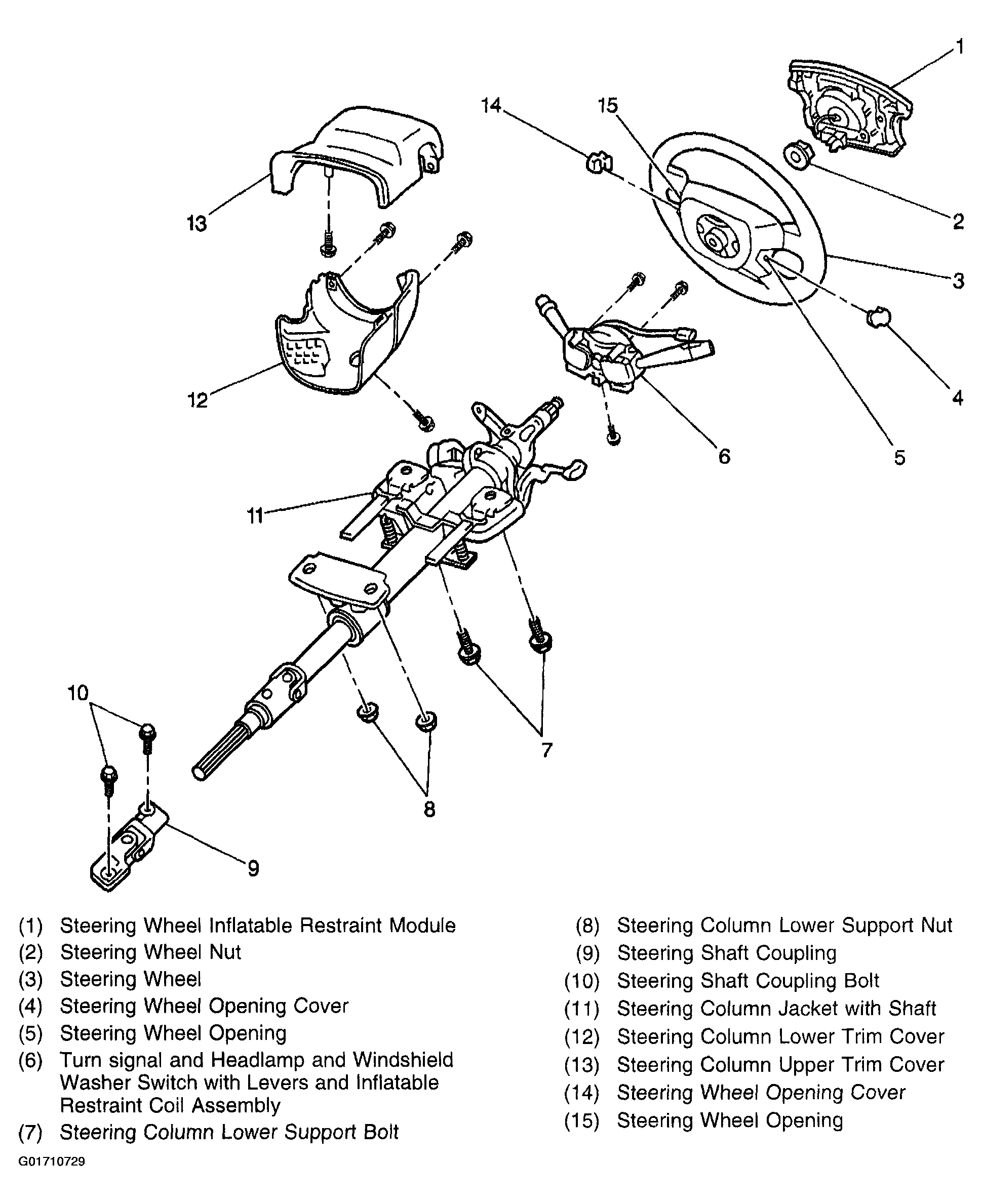

Fig 1: Tilt Steering Wheel and Column Disassembled View

G01710729

Courtesy of GENERAL MOTORS CORP.
