Home >> Chevrolet >> 2002 >> Prizm Base, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Component Locator >> Power Steering Pump Disassembled View

Power Steering Pump Disassembled View

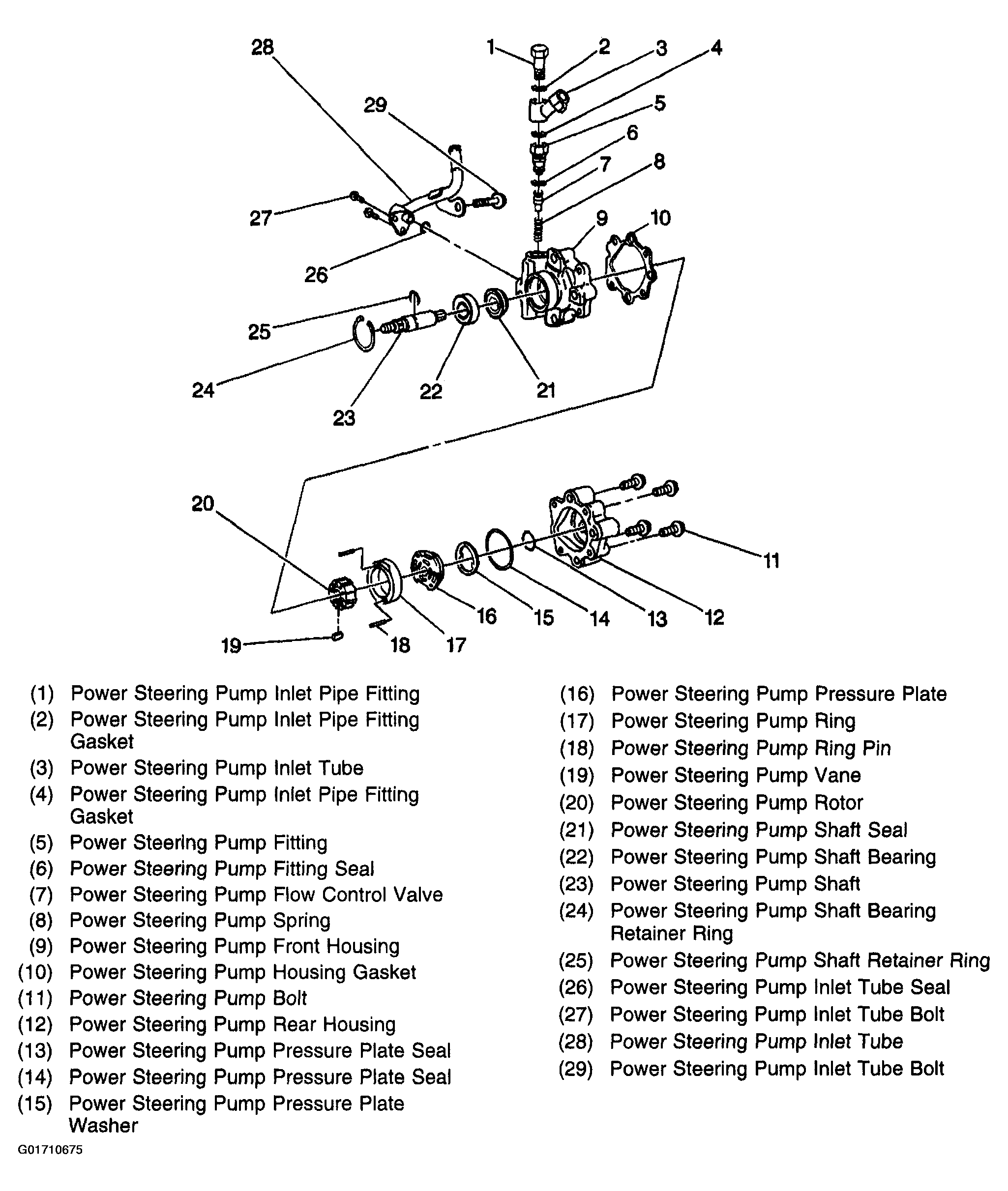

Fig 1: Power Steering Pump Disassembled View

G01710675

Courtesy of GENERAL MOTORS CORP.
