Installation Procedure

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the front seat belt retractor (2) to the vehicle. Secure the retractor with the 2 bolts (1).

    Tighten

    Tighten the front seat belt retractor upper mounting bolt to 4.9 N.m (43 lb in) and the front seat belt retractor lower mounting bolt to 42 N.m (31 lb ft).

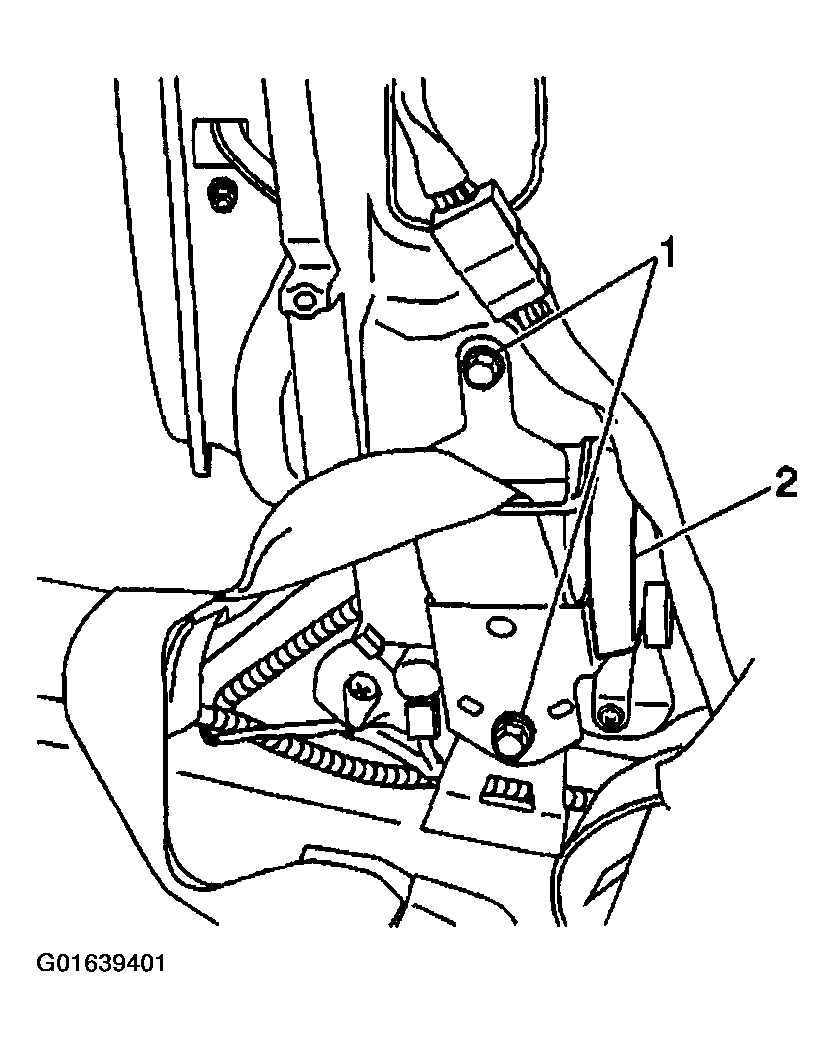

    Fig 1: Installing Front Seat Belt Retractor To Vehicle
    G01639401Courtesy of GENERAL MOTORS CORP.
  2. Connect the pretensioner electrical connector.

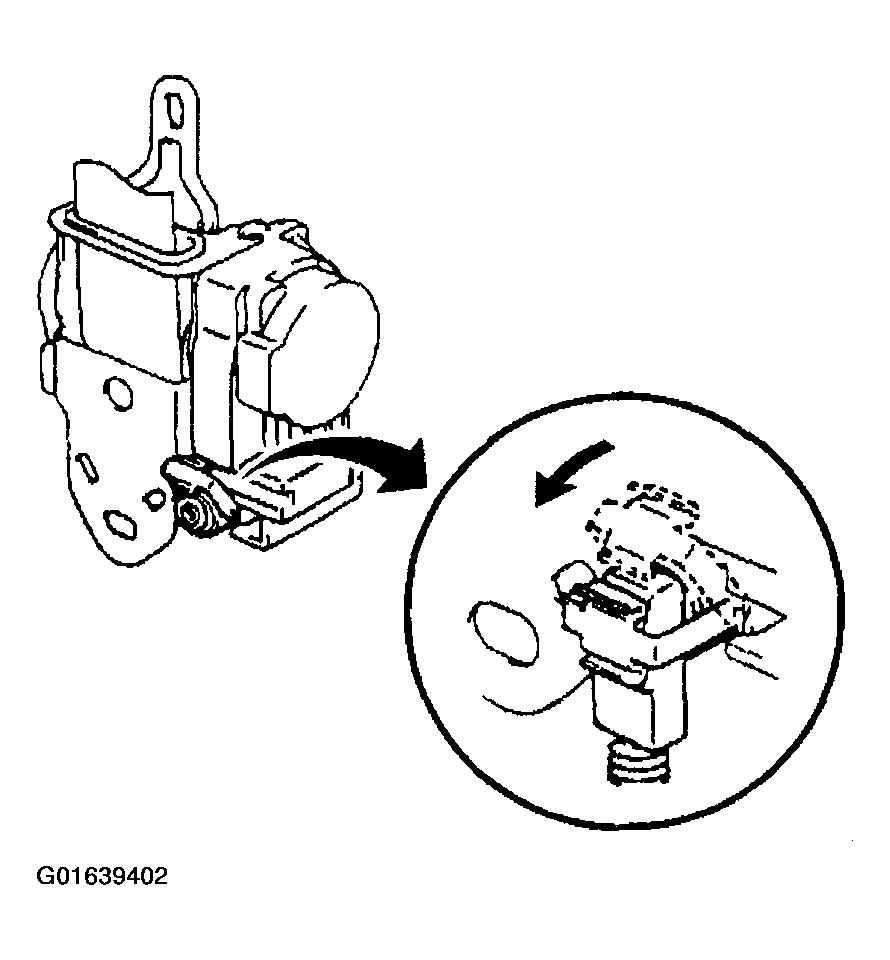

    Fig 2: Connect Pretensioner Electrical Connector
    G01639402Courtesy of GENERAL MOTORS CORP.
  3. Install the center pillar reinforcement (2) to the center pillar. Secure the reinforcement with the 3 screws (1).

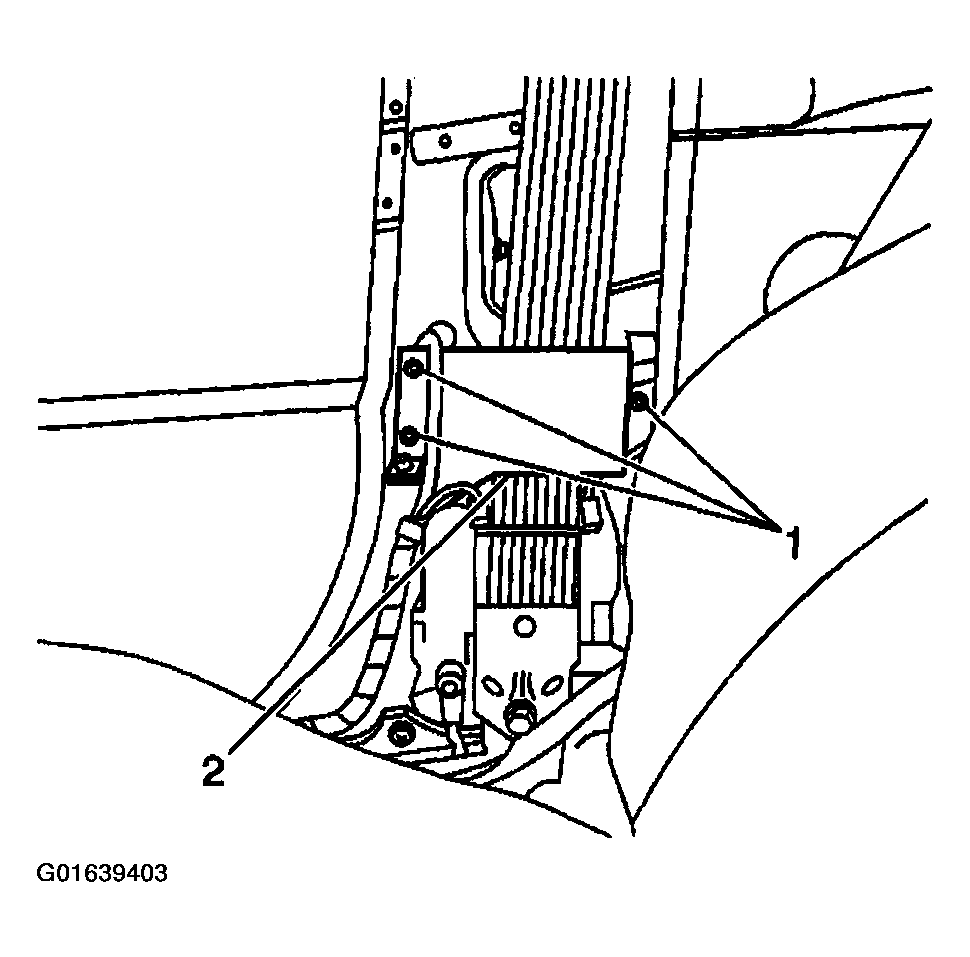

    Fig 3: Installing Center Pillar Reinforcement To Center Pillar
    G01639403Courtesy of GENERAL MOTORS CORP.
  4. Install the front seat shoulder belt guide adjuster (1) bolt.

    Tighten

    Tighten the front seat shoulder belt guide adjuster bolt to 42 N.m (31 lb ft).

  5. Install the front seat shoulder belt guide trim cover.

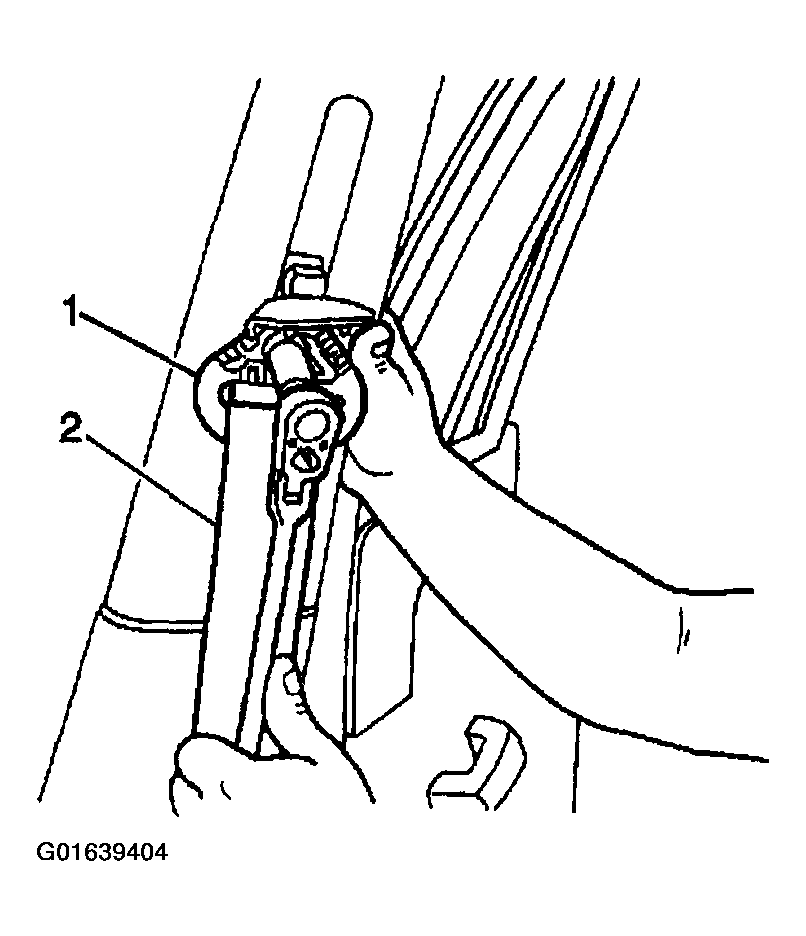

    Fig 4: Installing Front Seat Shoulder Belt Guide Trim Cover
    G01639404Courtesy of GENERAL MOTORS CORP.
  6. Install the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
  7. Install the front side door sill trim plate (1) to the vehicle.

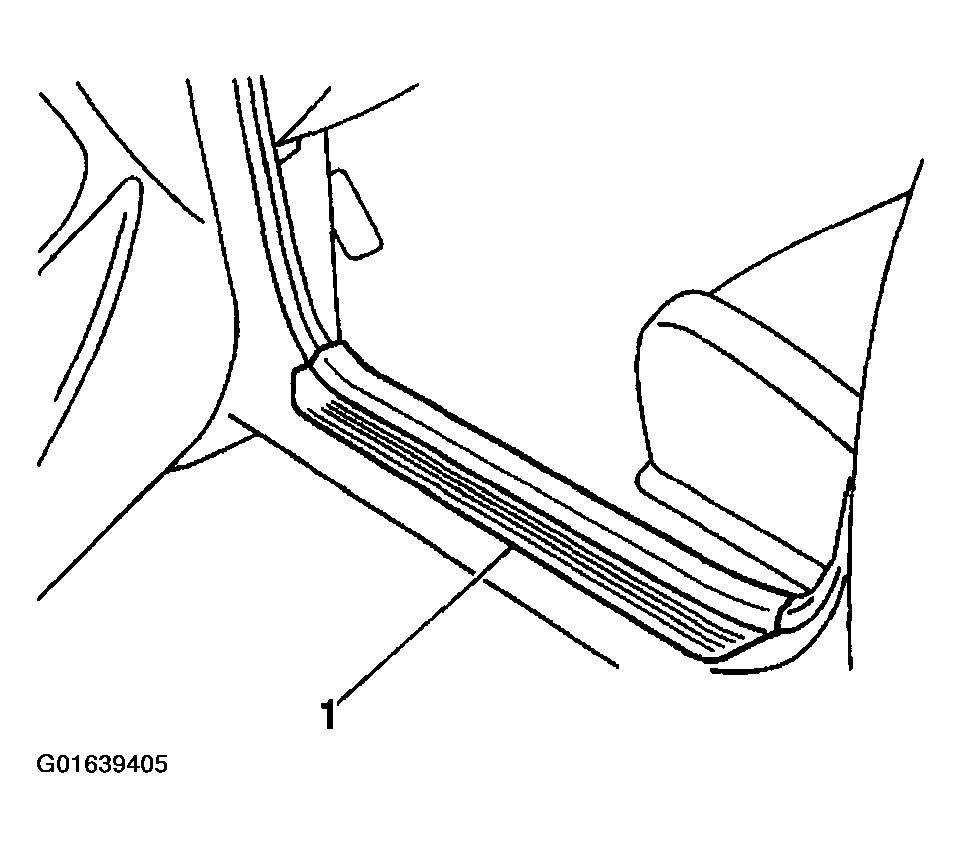

    Fig 5: Installing Front Side Door Sill Trim Plate
    G01639405Courtesy of GENERAL MOTORS CORP.
  8. Install the front seat belt (1) lower anchor bolt.

    Tighten

    Tighten the front seat belt lower anchor bolt to 42 N.m (31 lb ft).

  9. Reposition the front seat belt lower anchor bolt trim cover onto the bolt.
  10. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

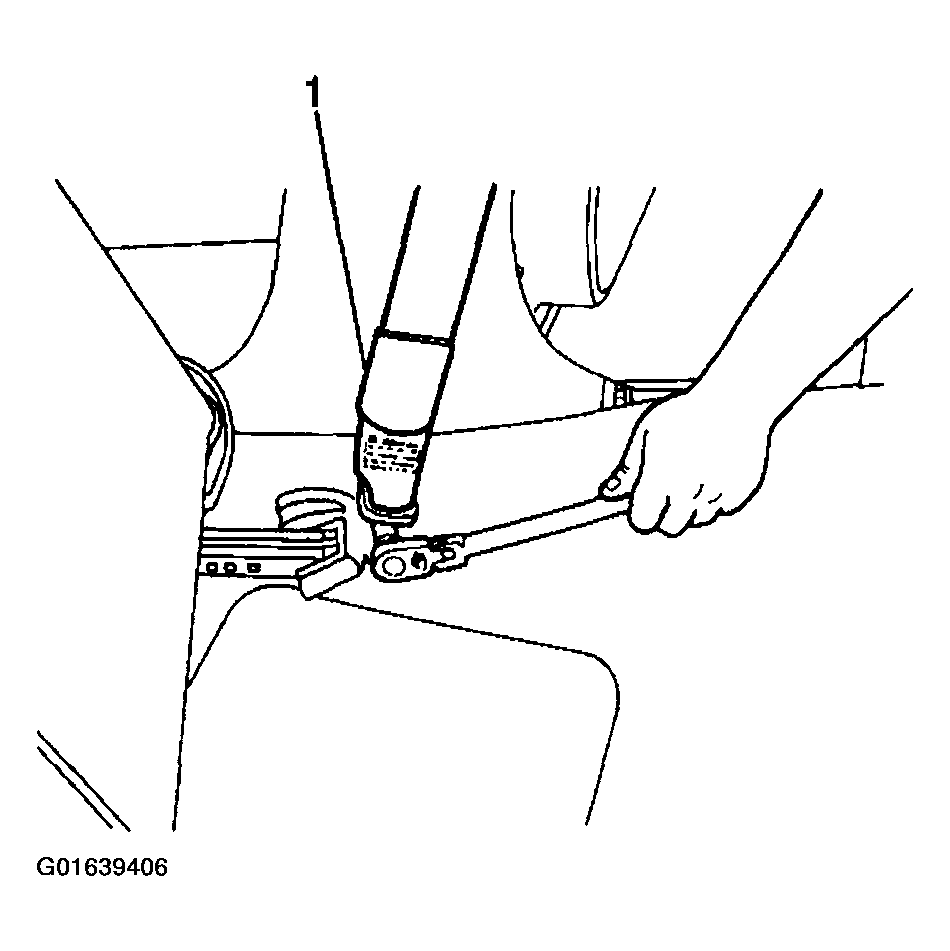

    Fig 6: Installing Front Seat Belt Lower Anchor Bolt
    G01639406Courtesy of GENERAL MOTORS CORP.
