Refrigerant Pressure Switch Connector End View

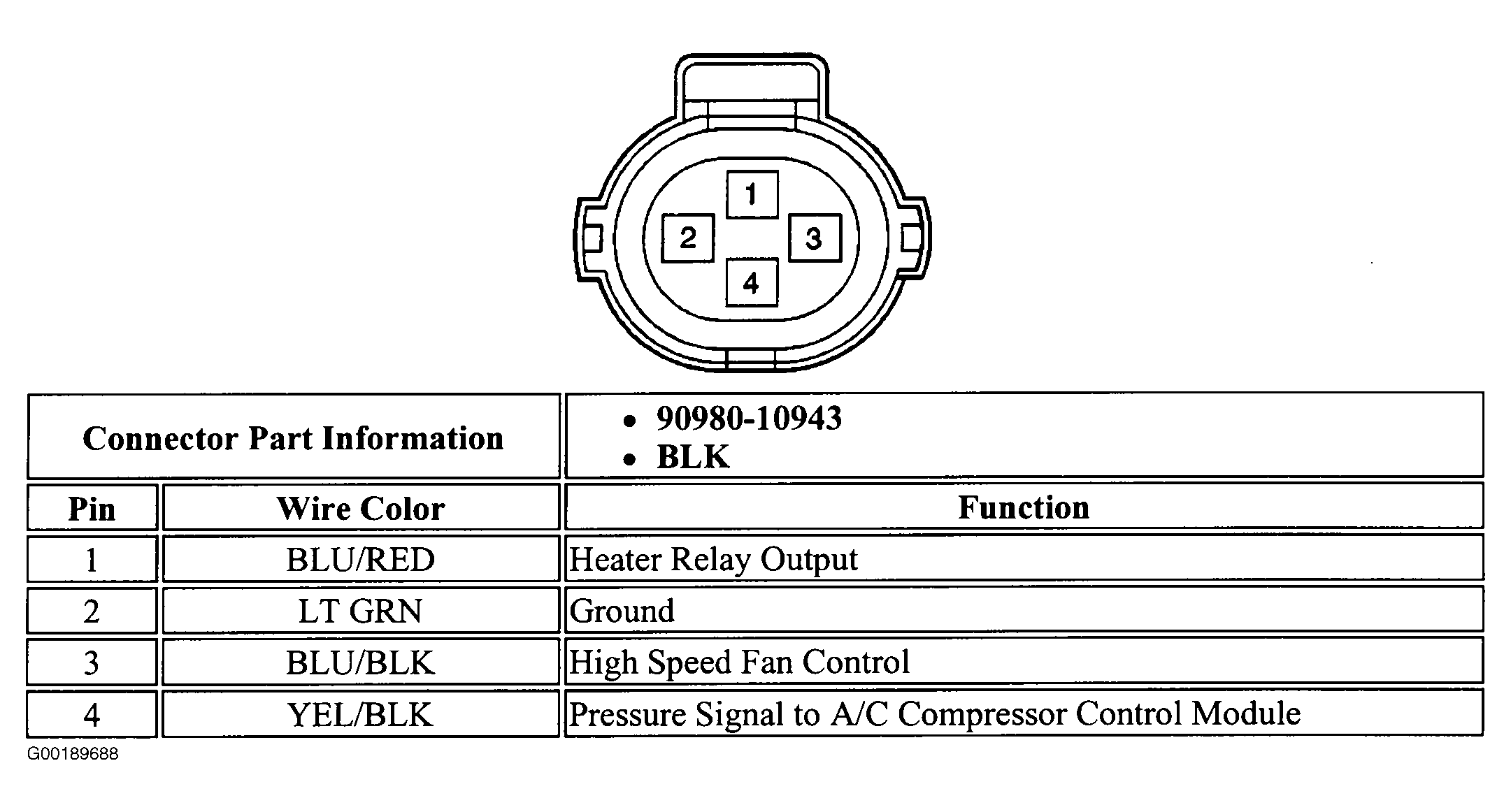

Fig 1: Refrigerant Pressure Switch
G00189688Courtesy of GENERAL MOTORS CORP.

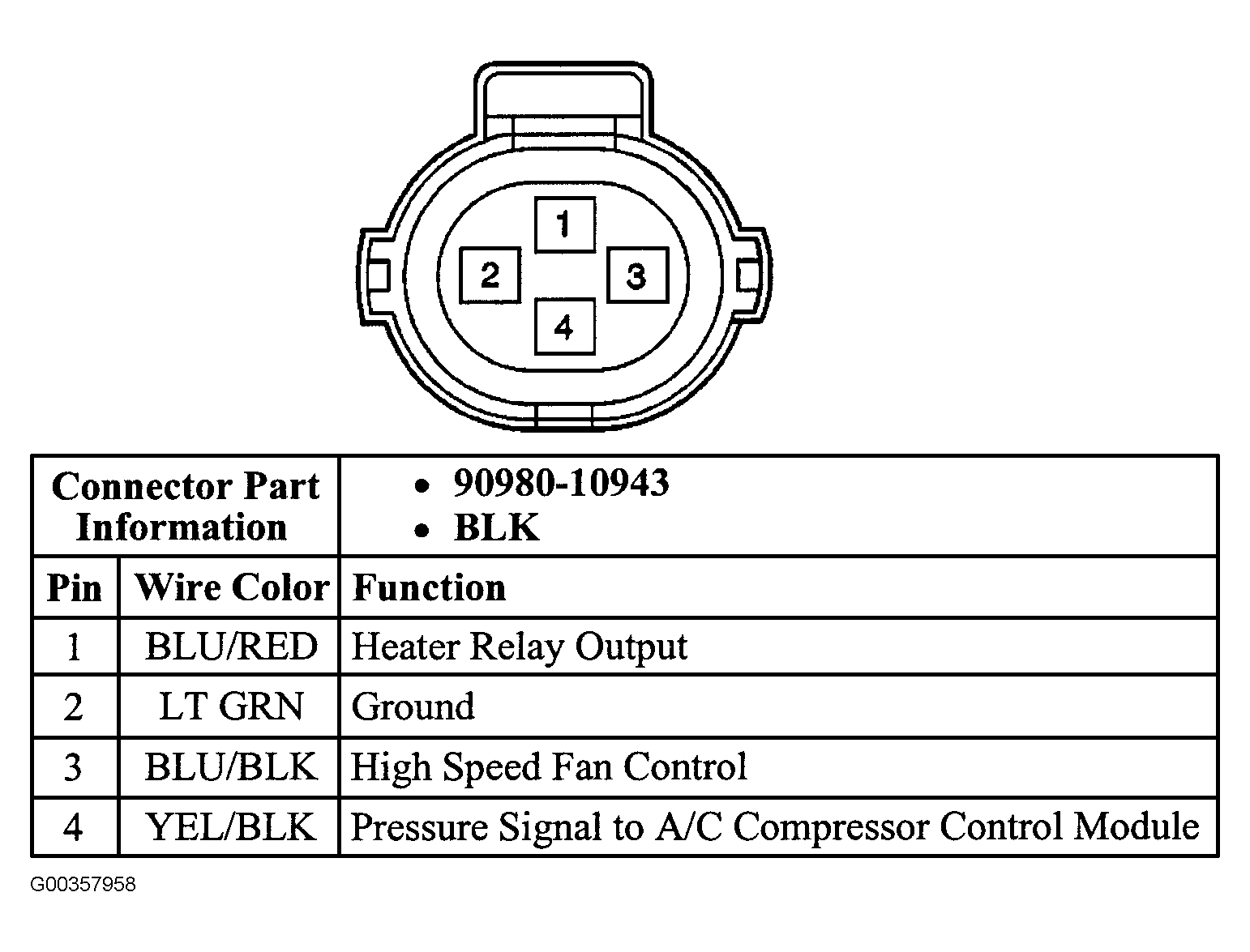

Fig 1: Refrigerant Pressure Switch
G00357958Courtesy of GENERAL MOTORS CORP.

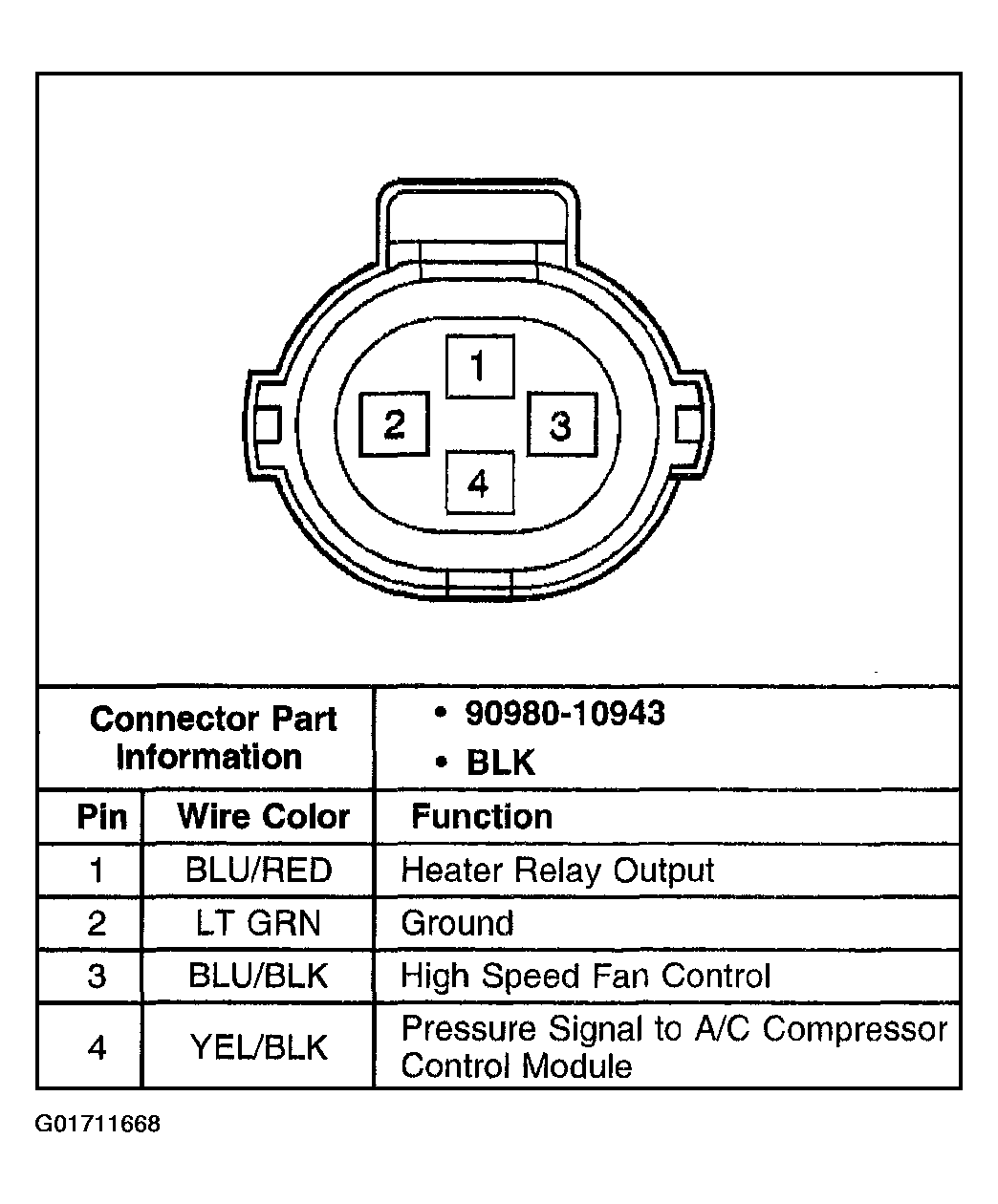

Fig 1: Refrigerant Pressure Switch
G01711668Courtesy of GENERAL MOTORS CORP.
