Instrument Cluster Assembly Connector End View C2

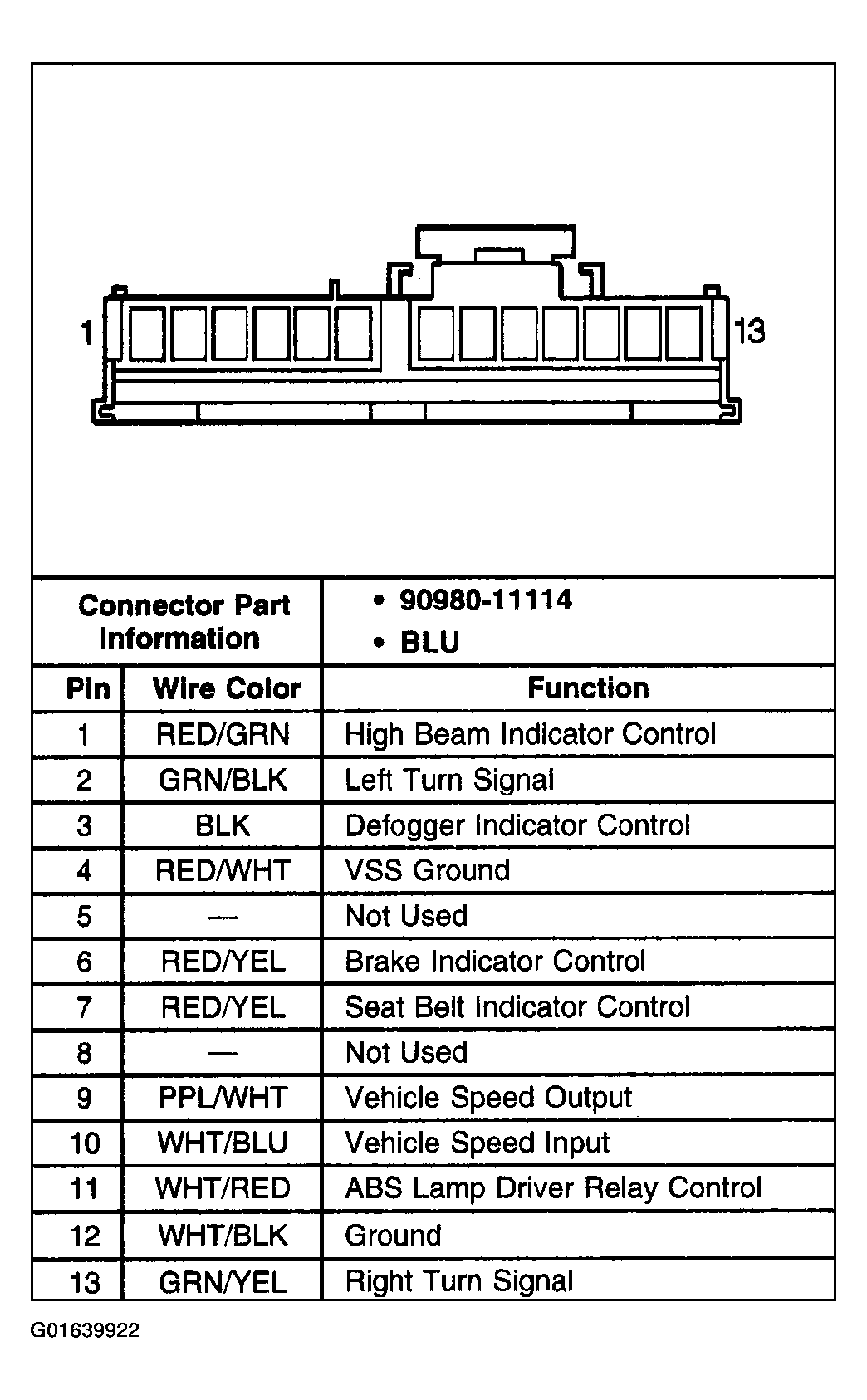

Fig 1: Instrument Cluster Assembly C2

G01639922

Courtesy of GENERAL MOTORS CORP.
