Idle Air Control Valve: Installation

Install a new IAC valve gasket. Install the IAC valve to the throttle body. Tighten the 4 IAC valve bolts to specification. See TORQUE SPECIFICATIONS  . Install throttle body. See THROTTLE BODY  .

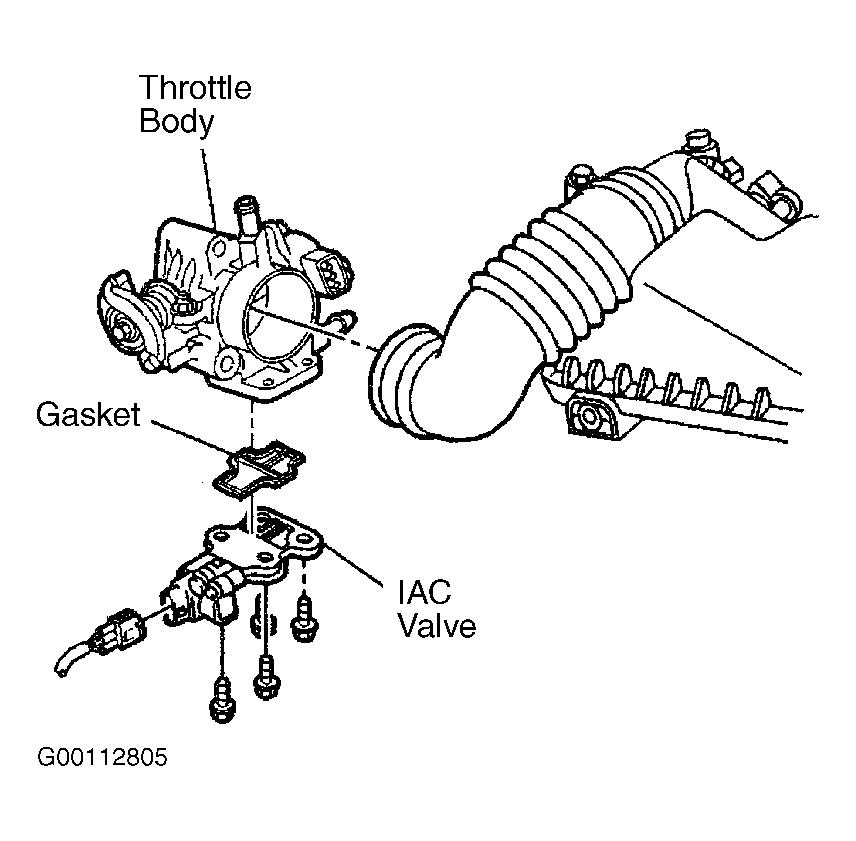

Fig 1: Removing Idle Air Control Valve

Courtesy of GENERAL MOTORS CORP.
