Removal Procedure

  1. Using a taped flat bladed tool, gently pry the front side door accessory switch mounting plate (1) from the front side door trim (2).

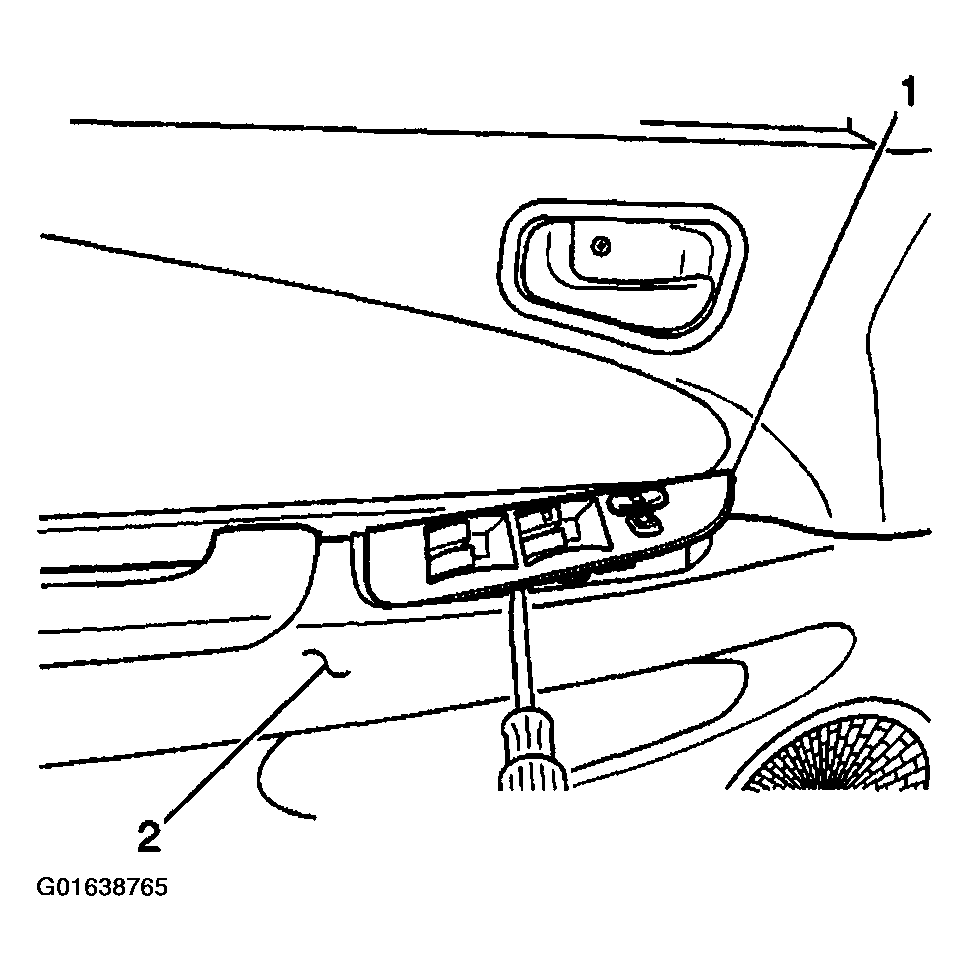

    Fig 1: Prying Front Side Door Accessory Switch Mounting Plate
    G01638765Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the front side door window/lock switch electrical connector (2).

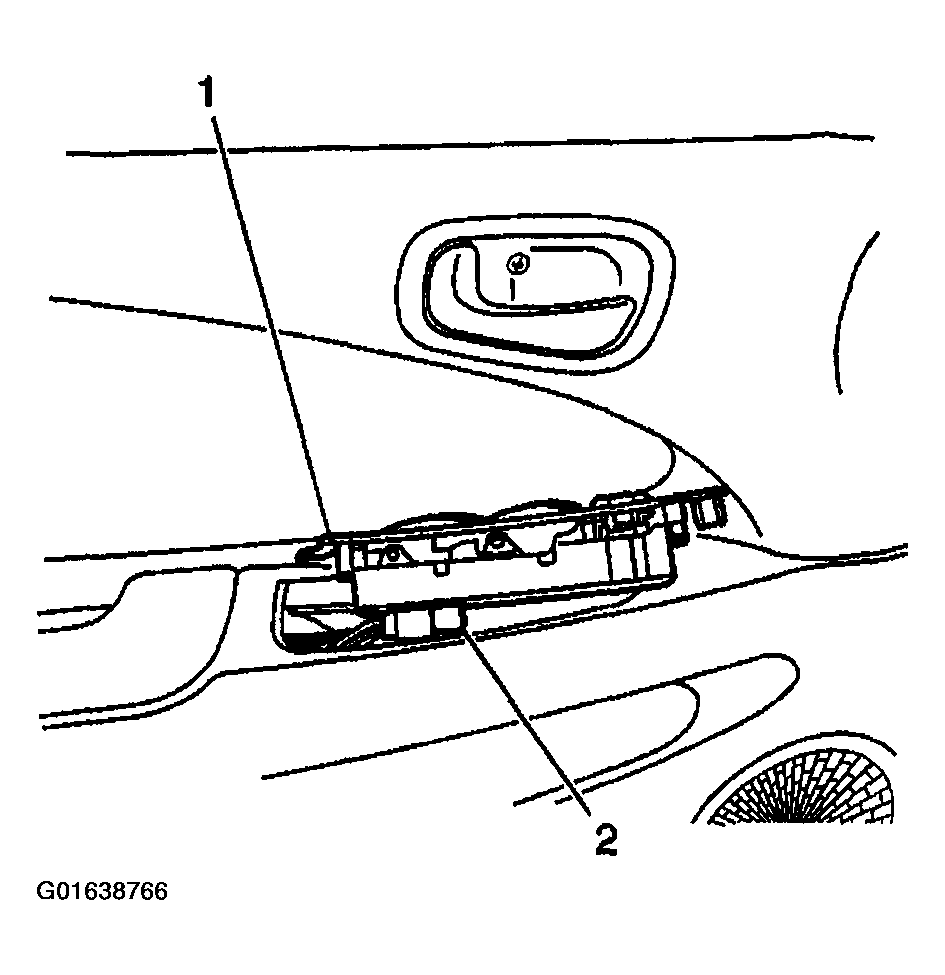

    Fig 2: Disconnecting Front Side Door Window/Lock Switch Electrical Connector
    G01638766Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the front side door window/lock switch (3):
    • The 3 screws (1)
    • The front side door accessory switch mounting plate (2)

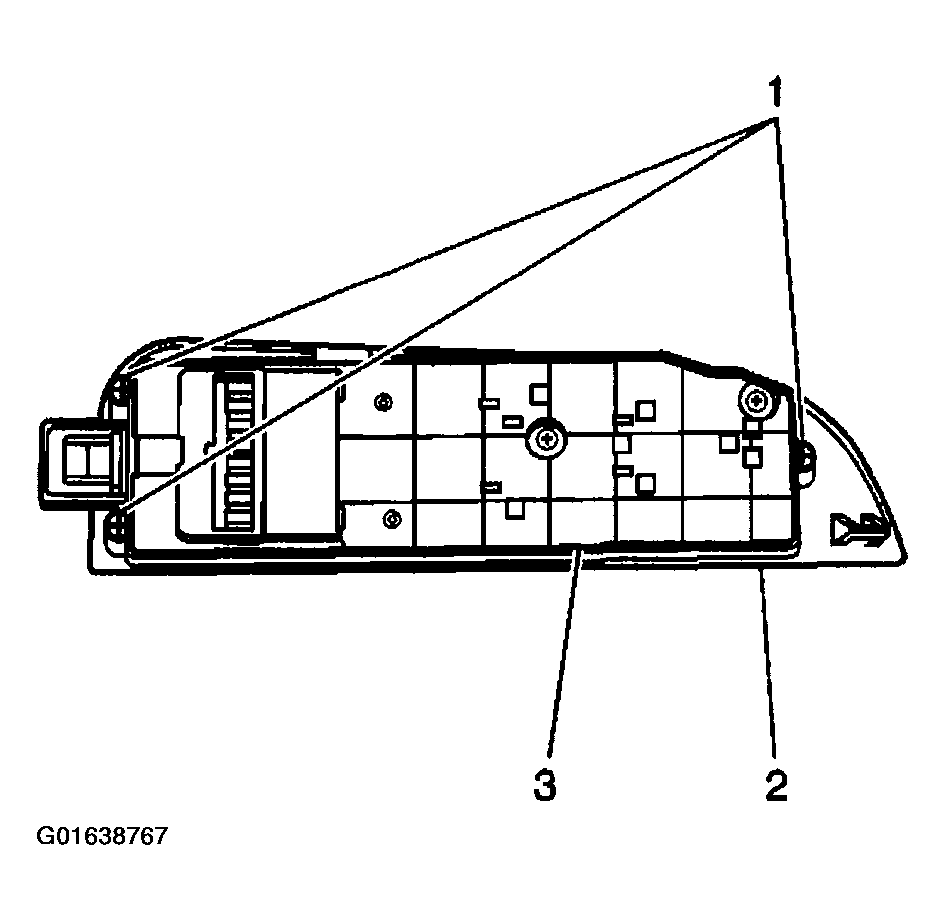

      Fig 3: Removing 3 screws And Front Side Door Accessory Switch Mounting Plate
      G01638767Courtesy of GENERAL MOTORS CORP.
