Installation Procedure

  1. Install the cruise control release switch (1) to the clutch pedal bracket by screwing it in a clockwise direction. Secure the release switch with the lock nut.

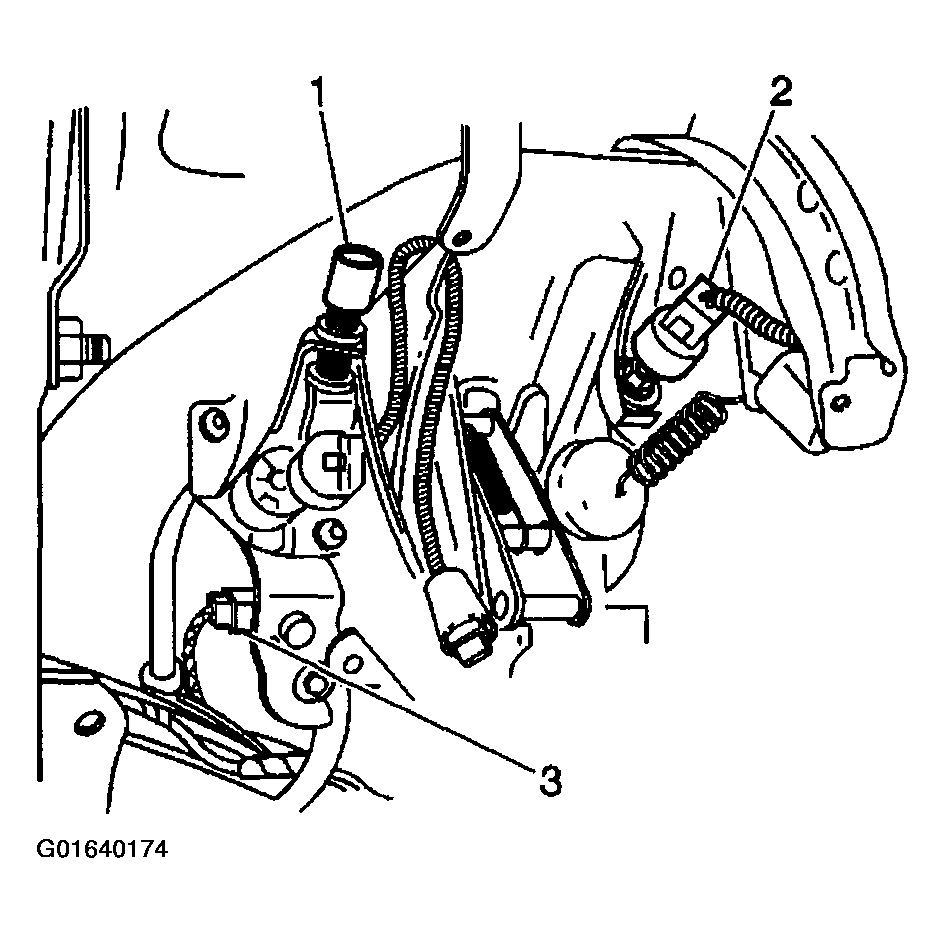

    2. Fig 1: Installing Cruise Control Release Switch
    G01640174Courtesy of GENERAL MOTORS CORP.
  2. Connect the cruise control release switch electrical connector (3).
  3. Install the left I/P outer air outlet duct (2) to the vehicle. Secure the duct with the plastic retainer (1).

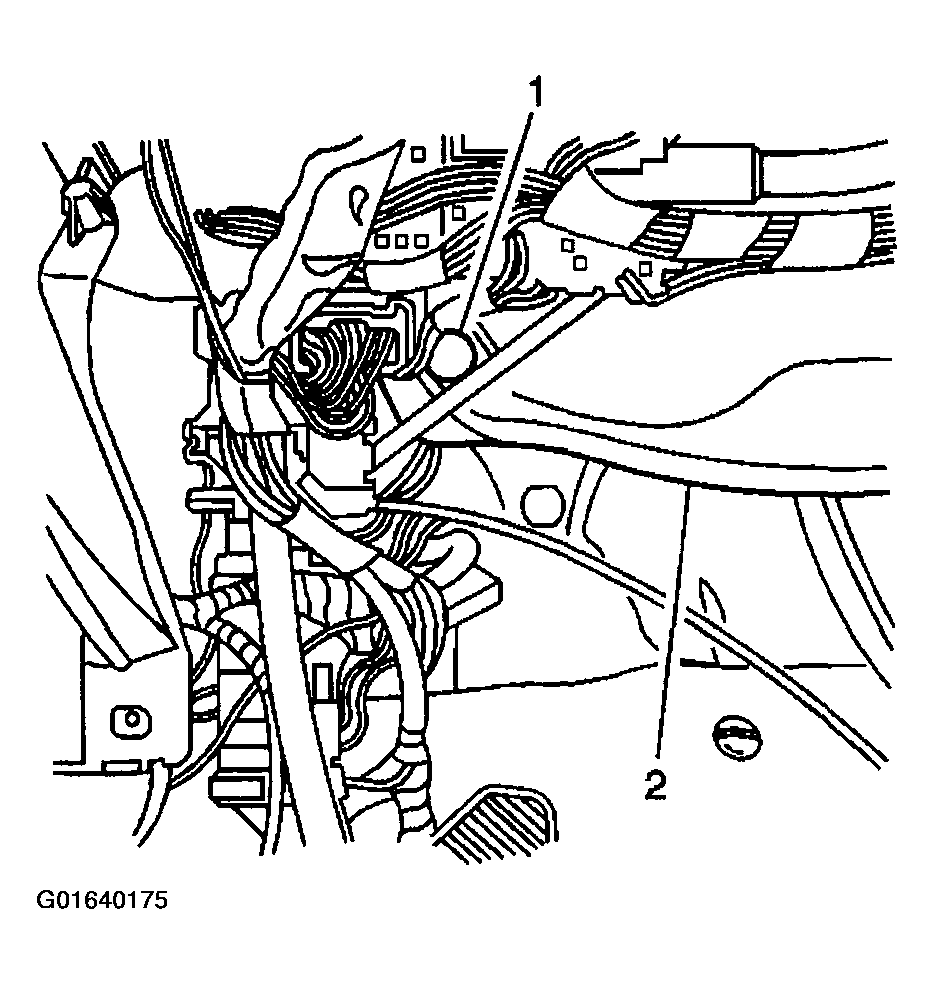

    Fig 2: Installing Left I/P Outer Air Outlet Duct
    G01640175Courtesy of GENERAL MOTORS CORP.
  4. Install the IP drivers knee bolster reinforcement. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gauges and Console.
