Removal Procedure

  1. Remove the cruise control servo cover (1).

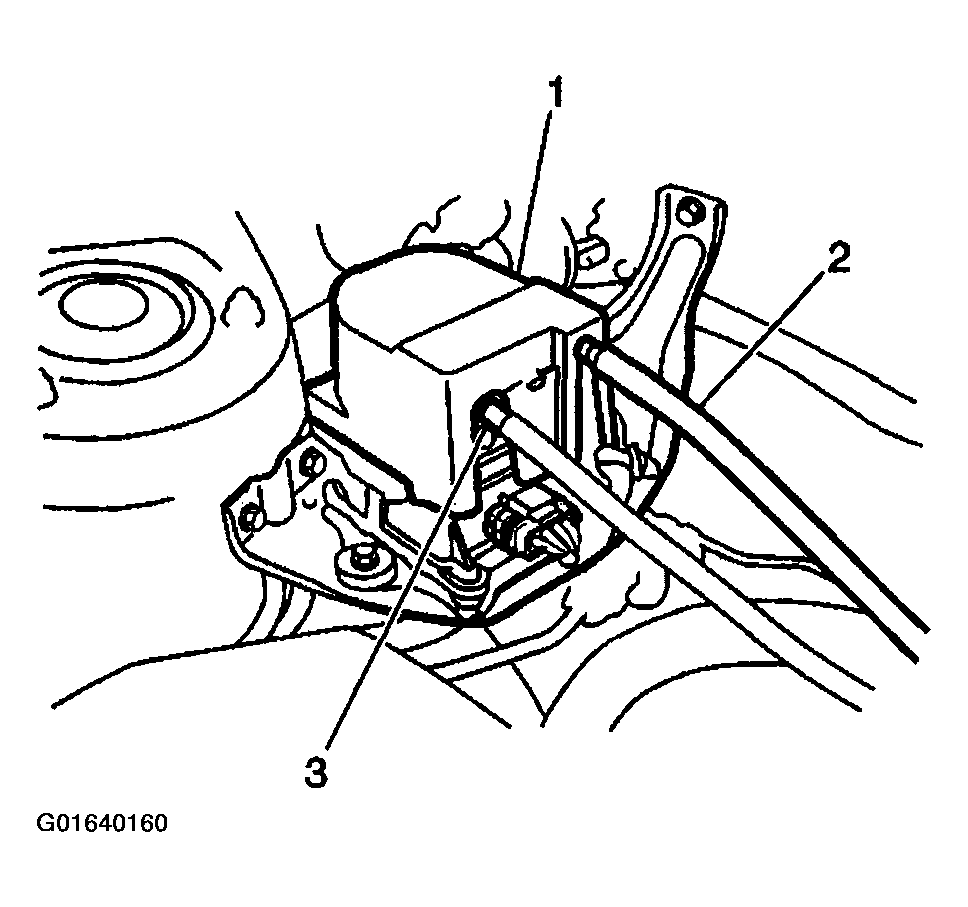

    2. Fig 1: Removing Cruise Control Servo Cover
    G01640160Courtesy of GENERAL MOTORS CORP.
  2. Loosen the accelerator control cable lock nut (2).

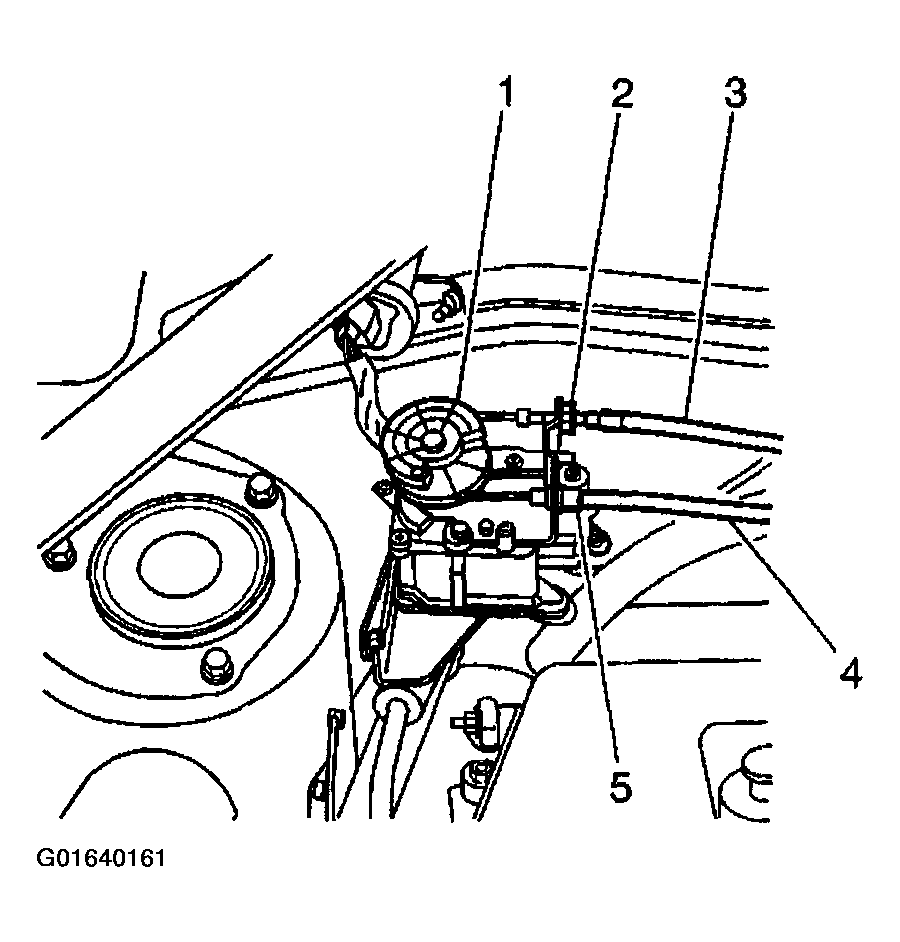

    Fig 2: Loosening Accelerator Control Cable Lock Nut
    G01640161Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the cruise control servo:
    • The cruise control servo cable bracket screw (5)
    • The cruise control servo cable (4)
    • The accelerator control cable (3)
  4. Disconnect the cruise control servo electrical connector (3).

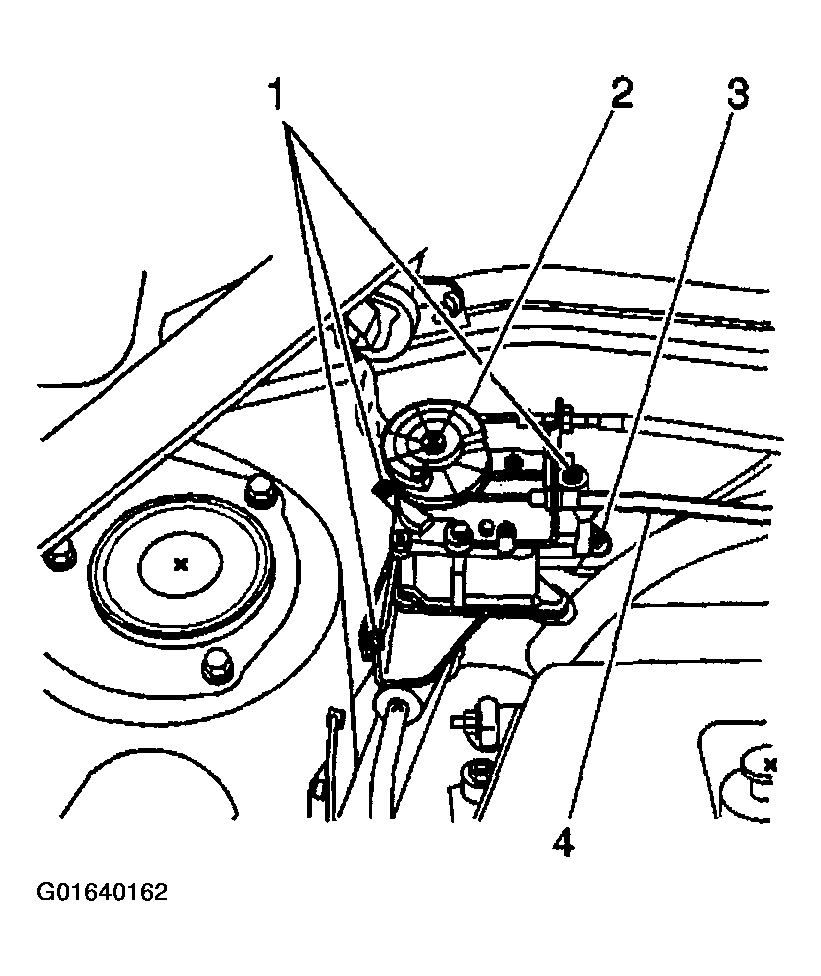

    Fig 3: Disconnecting Cruise Control Servo Electrical Connector
    G01640162Courtesy of GENERAL MOTORS CORP.
  5. Remove the following components from the vehicle:
    • The 3 cruise control servo mounting bolts (1)
    • The cruise control servo with the bracket attached
  6. Remove the following components from the cruise control bracket:
    • The 4 screws
    • The cruise control servo
