Cruise Control Inoperative/Malfunctioning

Fig 1: Cruise Control Inoperative/Malfunctioning (1 Of 3)
G01640149Courtesy of GENERAL MOTORS CORP.

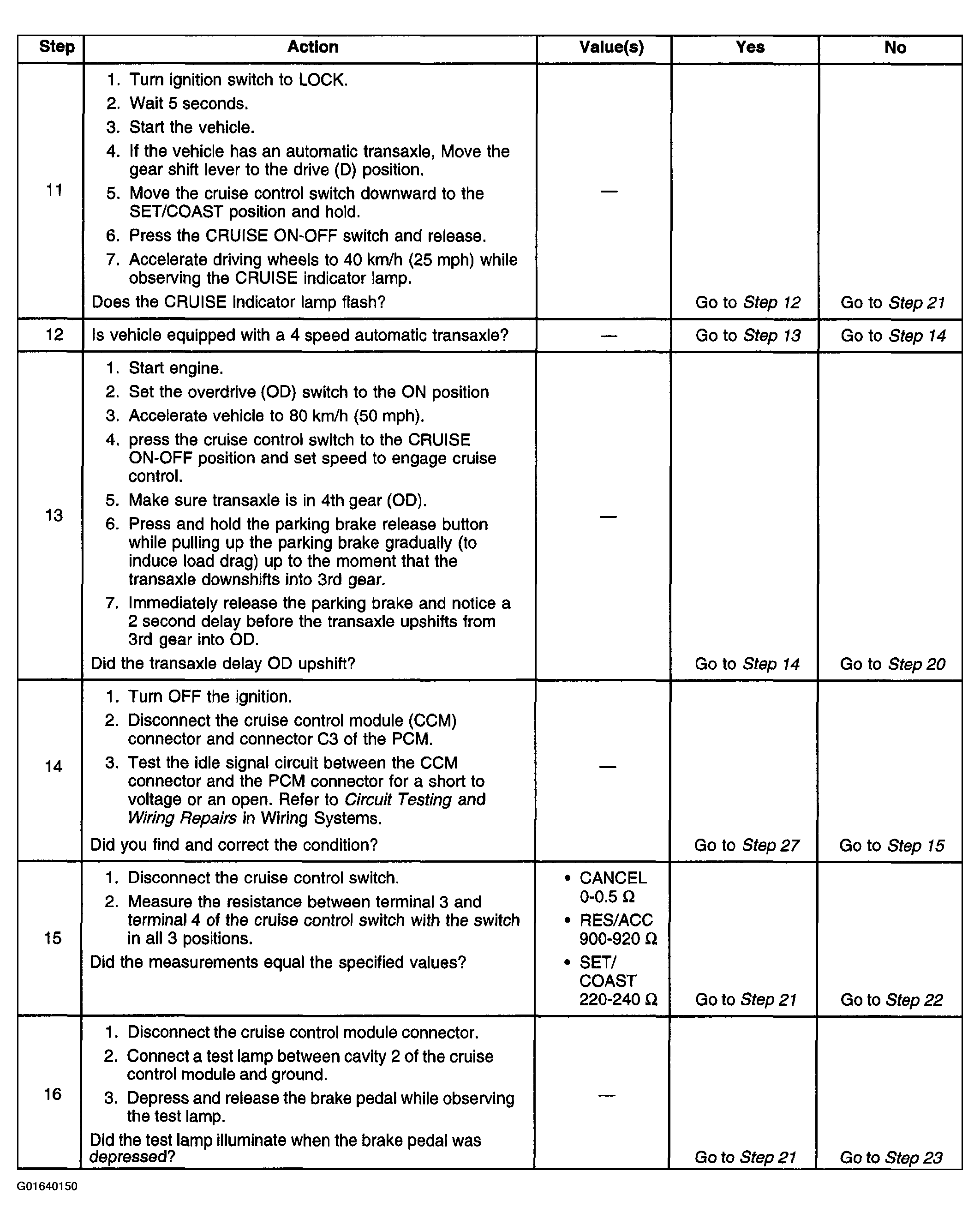

Fig 2: Cruise Control Inoperative/Malfunctioning (2 Of 3)
G01640150Courtesy of GENERAL MOTORS CORP.

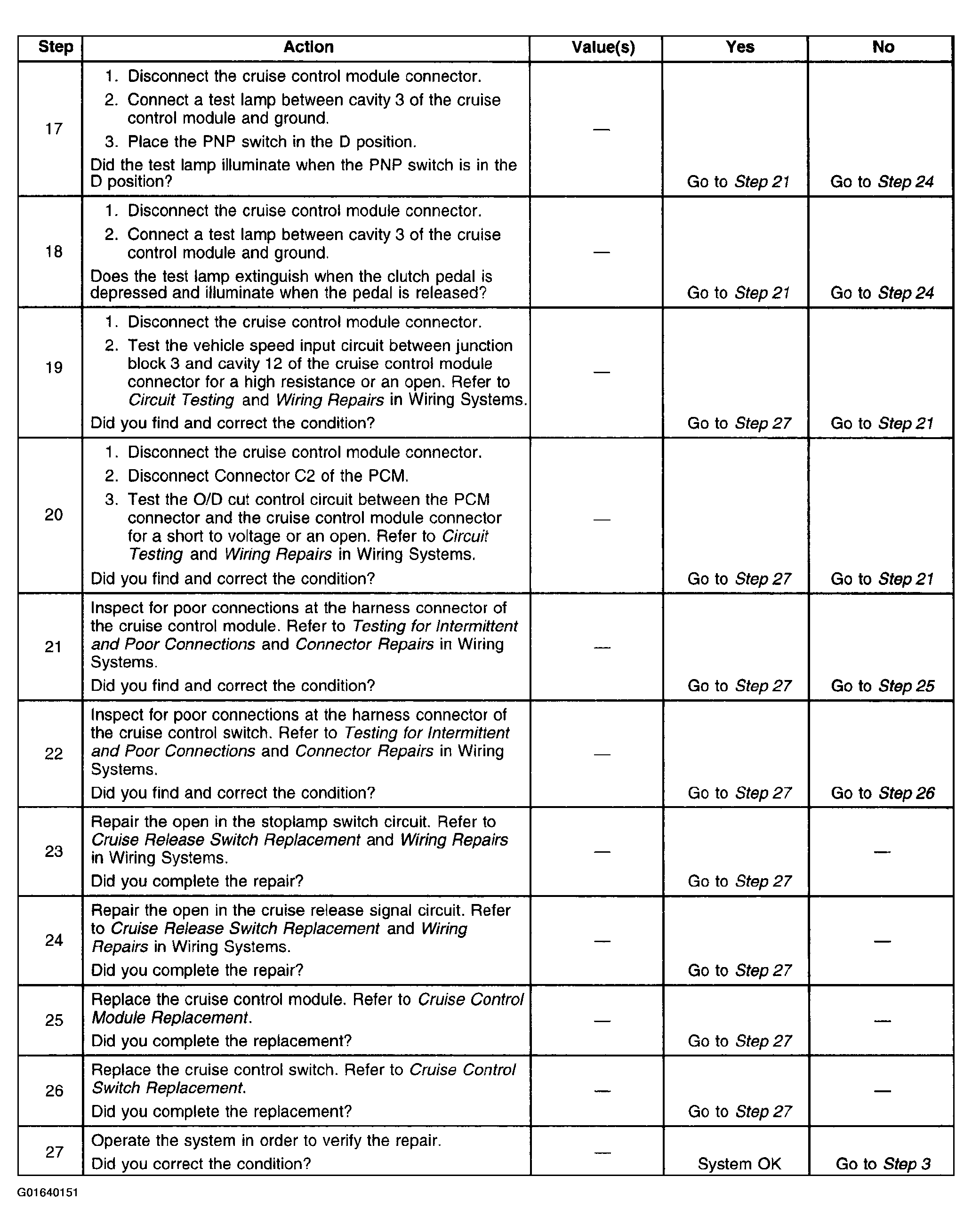

Fig 3: Cruise Control Inoperative/Malfunctioning (3 Of 3)
G01640151Courtesy of GENERAL MOTORS CORP.
